Discontinuation type

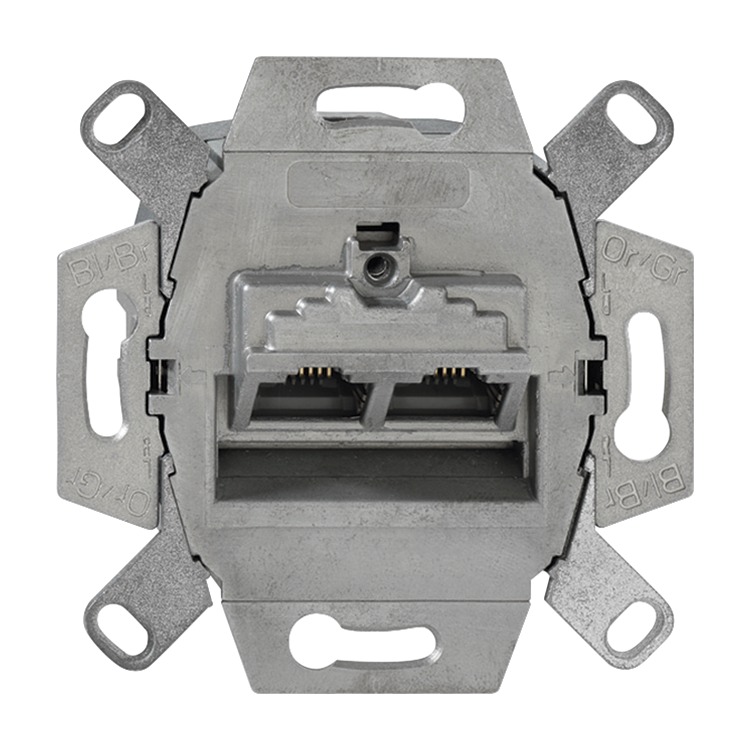

UAE connection unit, RJ45, cat. 6e, shielded
2 x outlets, 8/8-pole

Functions at a glance

  • With down-leading outlet and LSA self-cutting clamps.
  • Cat. 6 according to DIN EN 50173-1:2003-06, ISO/IEC 1180:2002, and TIA/EIA-568-B.2:2002.
  • Marking in accordance with EIA/TIA 568 A and B.
  • According to EN 60 603-7-3:2010-06.
  • Shielding according to DIN EN 55022, Class B.
  • Up to 250 MHz on all pairs of wires.
  • Suitable for Gigabit Ethernet.
  • Suitable for PoE+ according to IEEE 802.3at, >- 2.500 contact durability.
  • Flex cable entries from all sides without buckles.
  • Earthing of housing via 6,3 mm blade terminal at the back possible.
  • Suitable for Mix-and-Match operation.
  • Suitable for RJ 11, RJ 12 und RJ 45.
  • Clearly colour-coded connection identification.
  • For data cables with a diameter of 6 -10 mm.
  • For wires of AWG 24-22.
  • For trunk systems, flush-mounted wall boxes and underfloor systems.
  • Without claws.
  • Mounting depth: 31 mm.
    • Suitable for cover plate 1803-02-xxx.

      Order details

      Article No.:0217-102
      Order No.:2CKA000230A0467
      EAN:4011395213377
      Customs tariff number:85366990
      Price group:01
      Price:34,34 EUR plus VAT
      Info sheet:Download PDF
