Functions at a glance

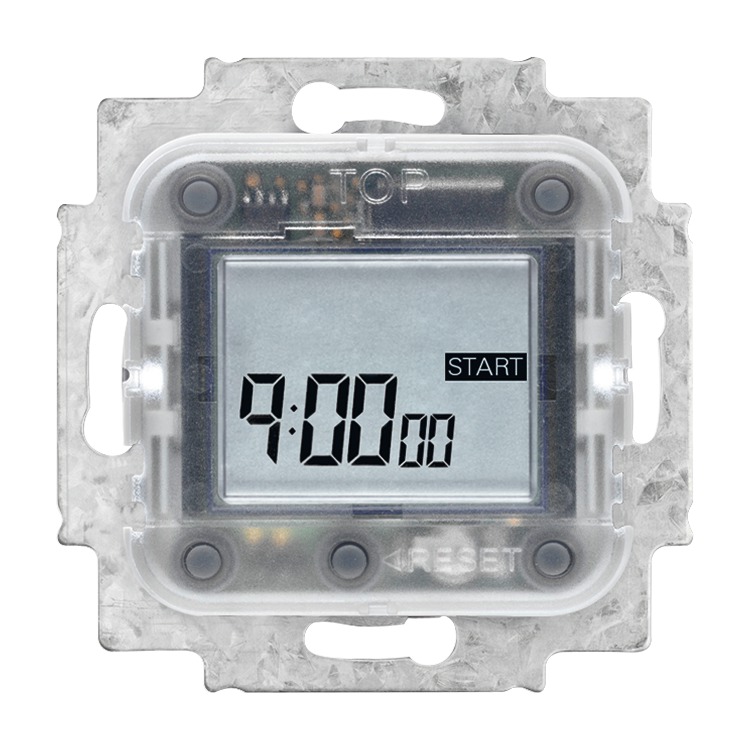

- For time-programmed switching of electrical consumers.

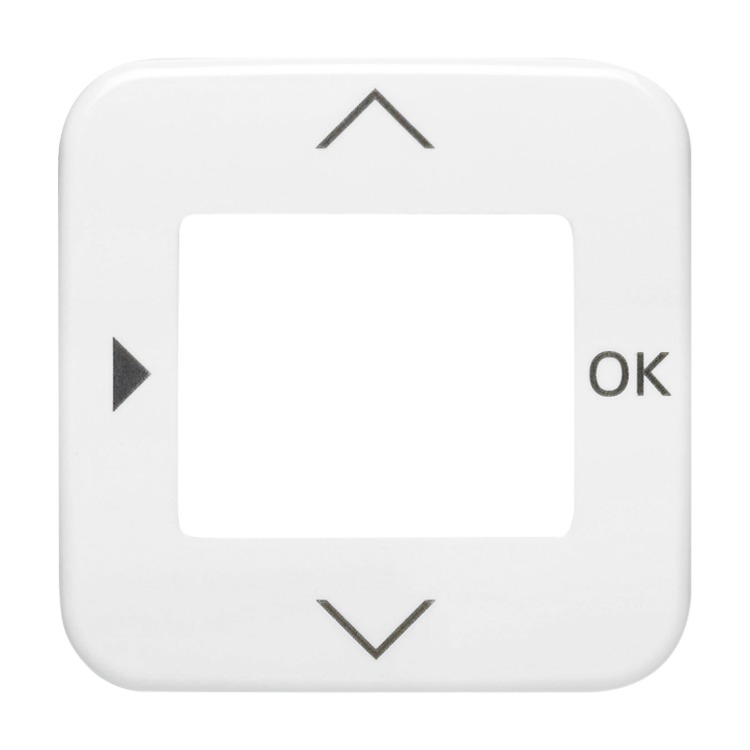

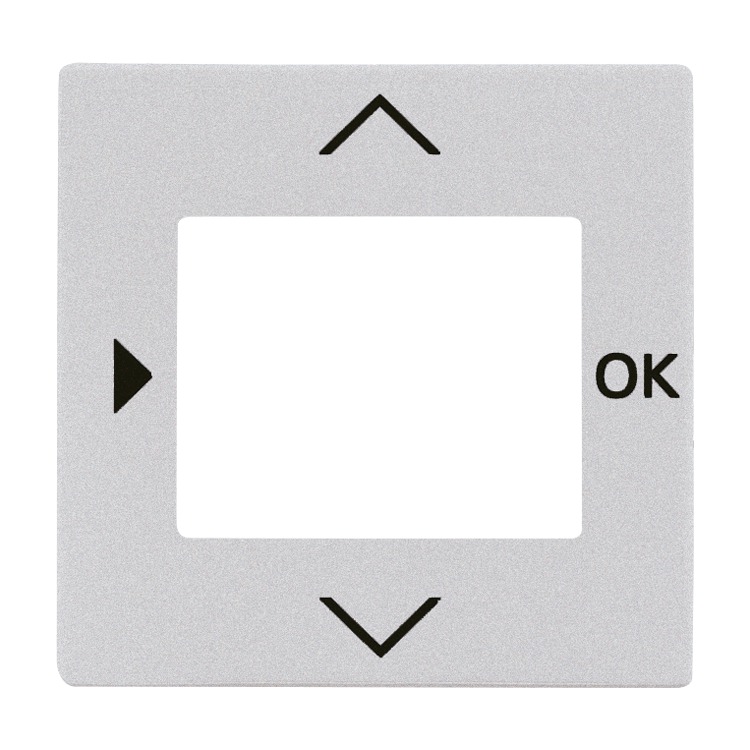

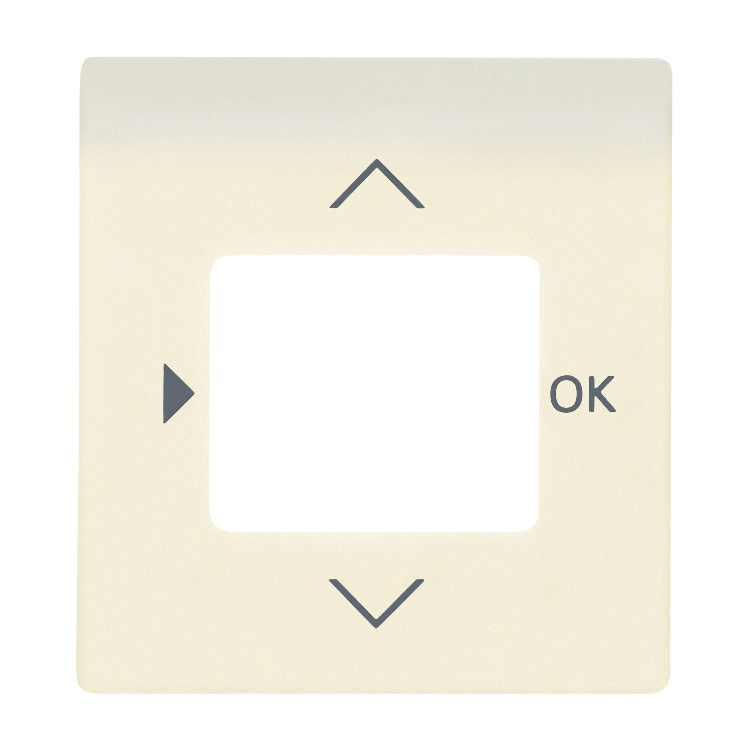

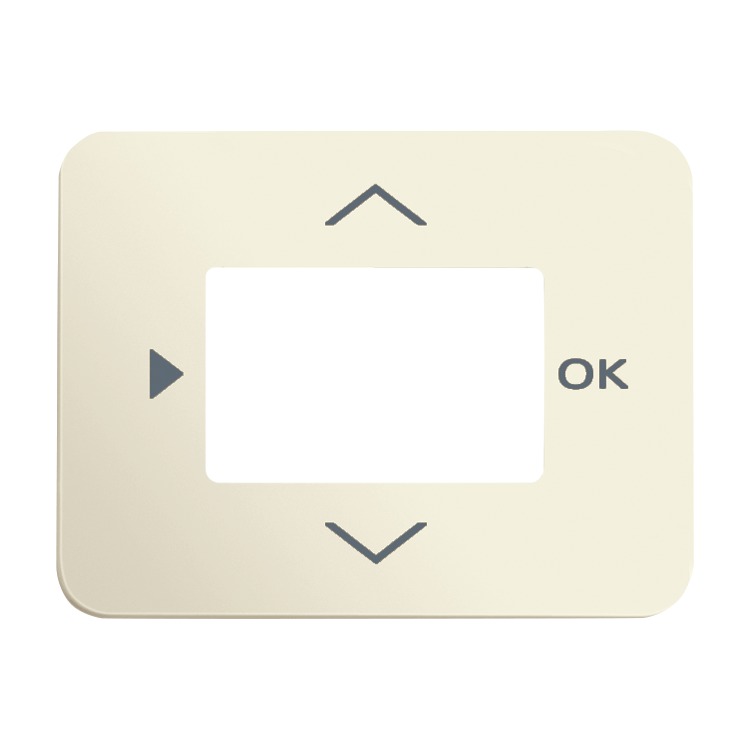

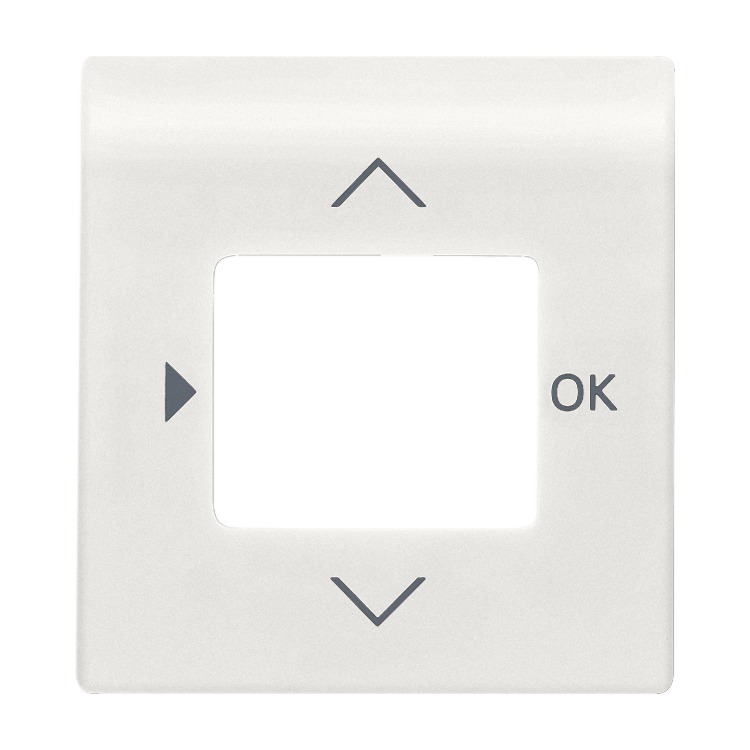

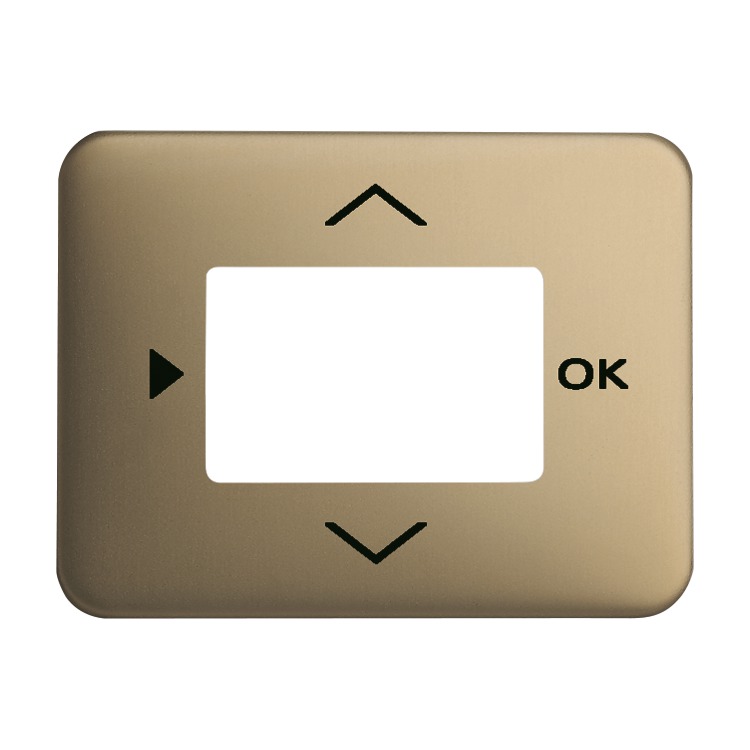

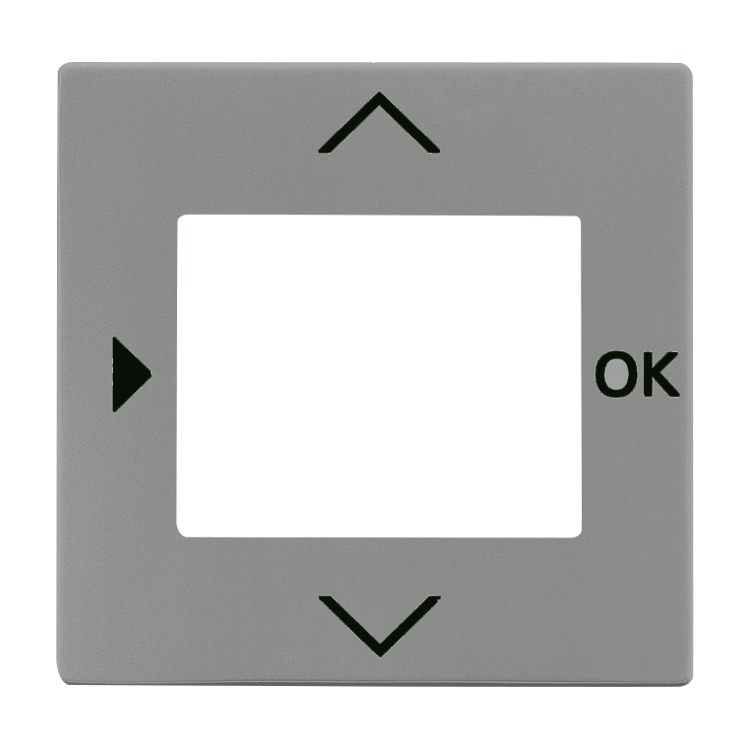

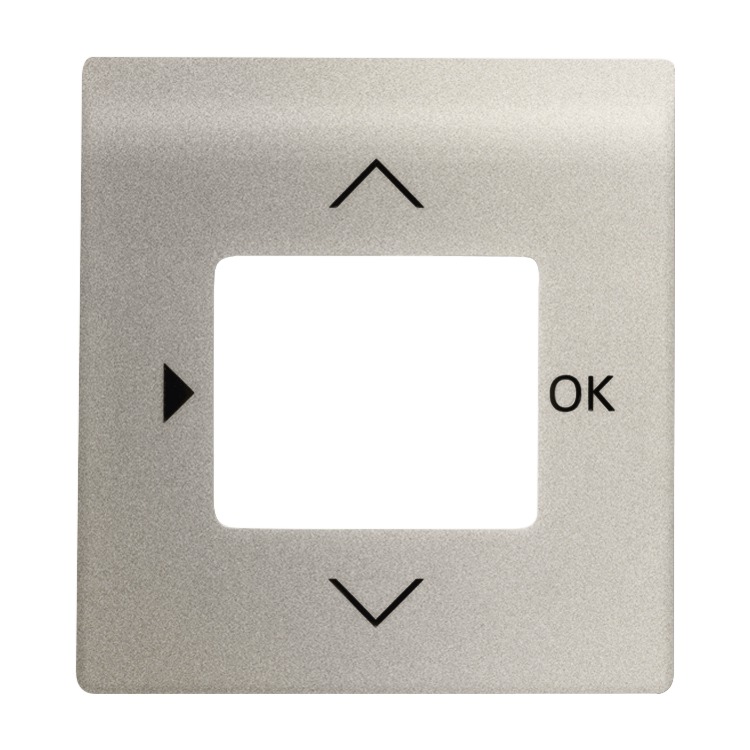

- With control cover, without cover plate.
- Minimum timer time: 1 second.
- Maximum timer time: 9:59:59 hours.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz

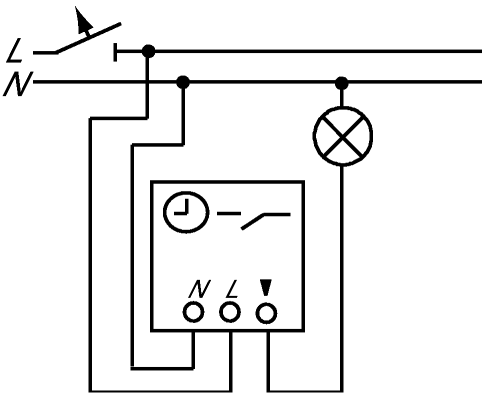

- Outputs: 1 Normally open contact
- Rated output: 2300 VA
- Rated current: 10 A, cos φ1
- Temperature range (device): 0 °C - 35 °C
- Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
