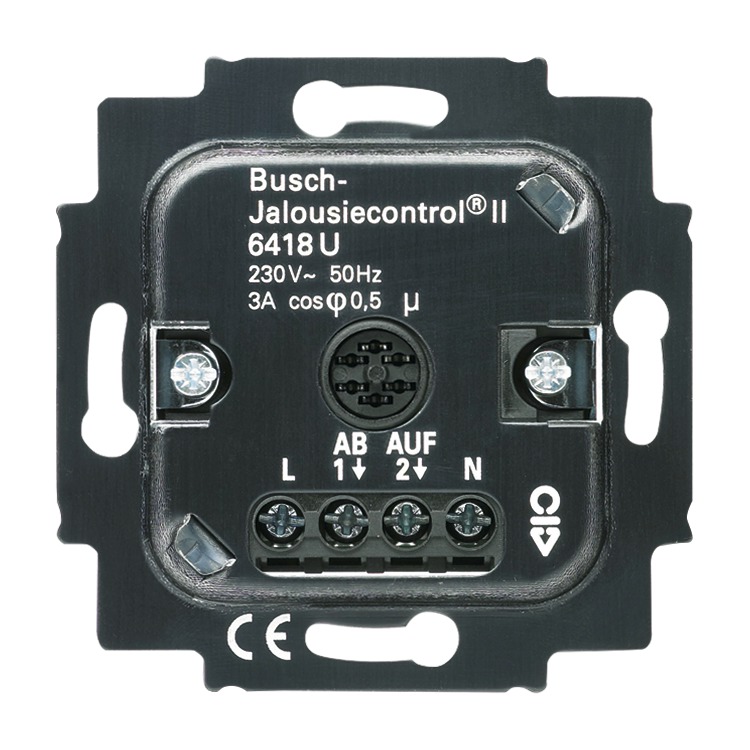

Basic blind insert
2-wire blind insert
Functions at a glance
- Suitable for blind and roller blind drives with mechanical or electronic limit switch shut-off.
- Suitable for operation without neutral conductor.
- Without an extension input.

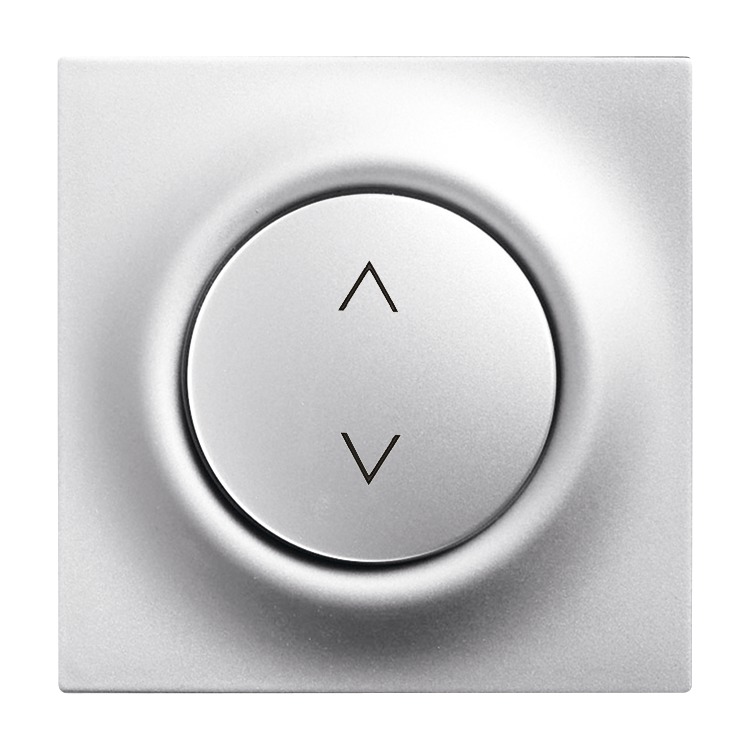

- For control cover 6430-xx-xxx.
- For standard timer control element 6456-101.
- Running time: 3 min
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Outputs: 2 Normally open contact
- Rated output: 690 VA
- Rated current: 3 A, cos φ0.5
- Temperature range (device): 0 °C - 35 °C
- N-conductor connection required for operation with control cover 6430-7x, illuminated.
- N-conductor connection may be required for operation with blind and roller blind drives with electronic limit switch shut-off. If no N-conductor is available, capacitor set 6498 can be used.
Order details
| Article No.: | 6418 U |
| Order No.: | 2CKA006410A0375 |
| EAN: | 4011395075753 |
| Customs tariff number: | 85389099 |
| Price group: | 20 |
| Price: | 81,60 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Dimensions

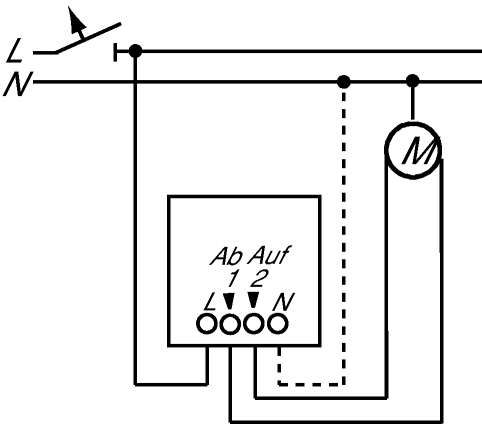

Wiring diagram
Basic blind insert 6418 U suitable without neutral conductor but recommended.
Basic blind insert 6418 U with capacitor set 6498
