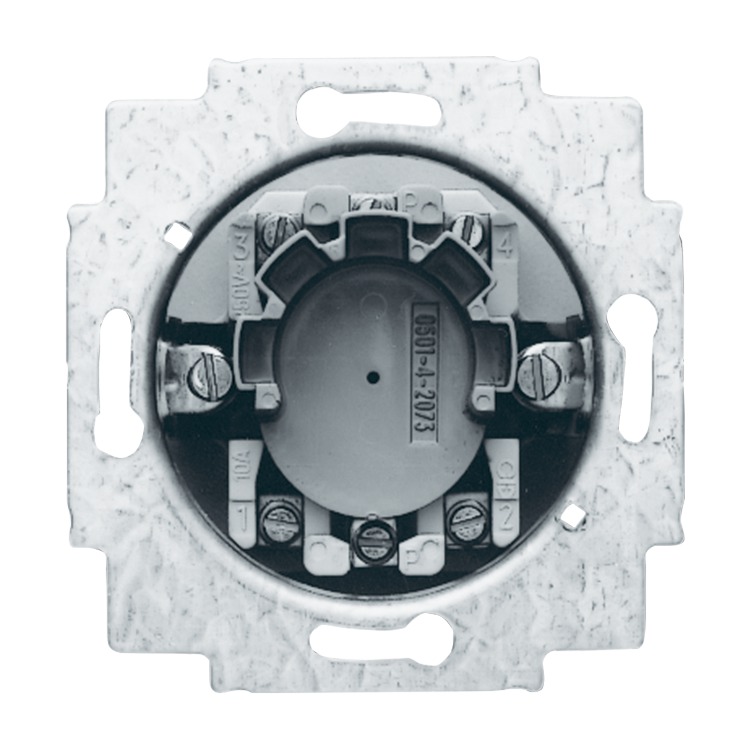

Blind switch/push-switch DP

Functions at a glance

  • For profile semi-cylindrical lock/switch and push-switch.
  • Delivered without cylindrical lock.
  • Rated voltage: 250 V~
  • Rated current: 10 AX
  • Protection class (device): IP 20
    • For installation on British Standard wallboxes please use adapter plate APBS (6599-0-2813). (Depth of box 60 mm.)
    • Blind switches/push switches prevents fast change over between operating directions.

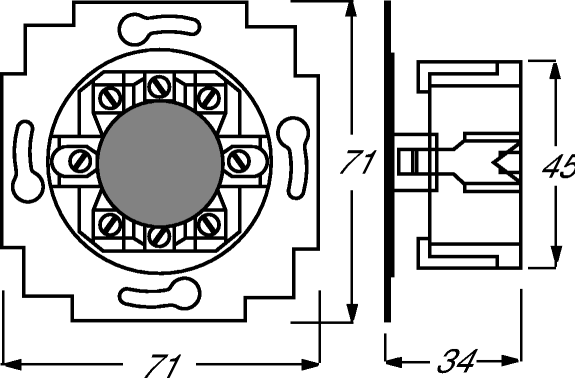

    • Use the cylindrical lock according to the enclosed drawing.
    • See semi-cylindrical lock.
    • Also suitable for controlling direct voltage drives.

    Order details

    Article No.:2712 USL-101
    Order No.:2CKA001101A0872
    Customs tariff number:85365080
    Preis:59,00 EUR plus VAT
    Info sheet:Download PDF
    Wiring diagram
    Blind switch/push-switch DP, rotary knob or key 2712-...and 2722-...
    Control of d.c. drive via DP blind switch/push switch 2712 U/ 2722 U
