Push-switch mechanism
2 x SP, 2 normally open contact

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • 2 normally open contacts.
  • Rated voltage: 250 V~
  • Outputs: 2 Normally open contact
  • Rated current: 10 A
  • Protection class (device): IP 20
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)

      Order details

      Article No.:2020 US-205-101
      Order No.:2CKA001413A0509
      EAN:4011395045800
      Customs tariff number:85365080
      Price group:01
      Price:30,00 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates
      Tips / Tricks
      Dimensions

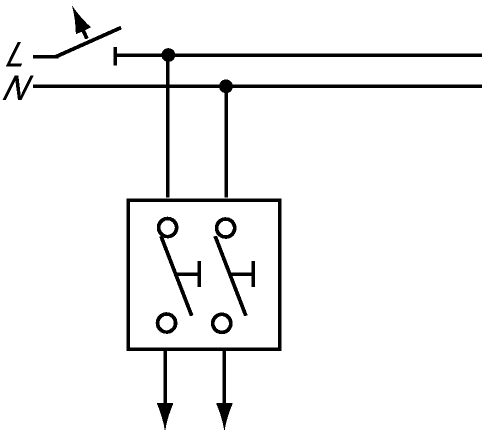

      Wiring diagram
      2gang 2way push switch -205-101
      2gang 1way, -205
