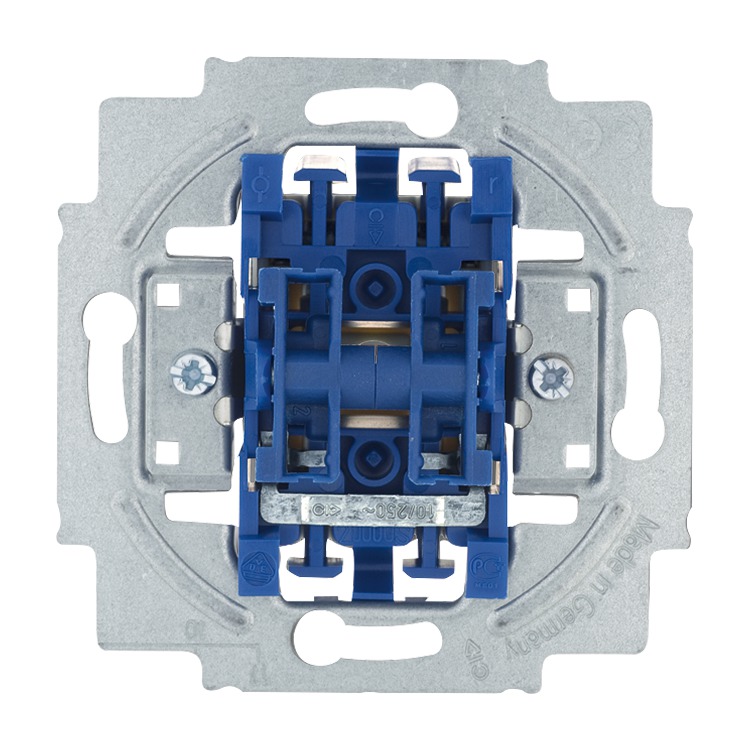

Push-switch mechanism

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With one input terminal and 2 actuating covers.
  • Rated voltage: 250 V~
  • Outputs: 2 Normally open contact
  • Rated current: 10 A
  • Protection class (device): IP 20
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)

      Order details

      Article No.:2020 US-205
      Order No.:2CKA001413A0491
      EAN:4011395045701
      Customs tariff number:85365080
      Price group:01
      Price:20,68 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates
      Tips / Tricks

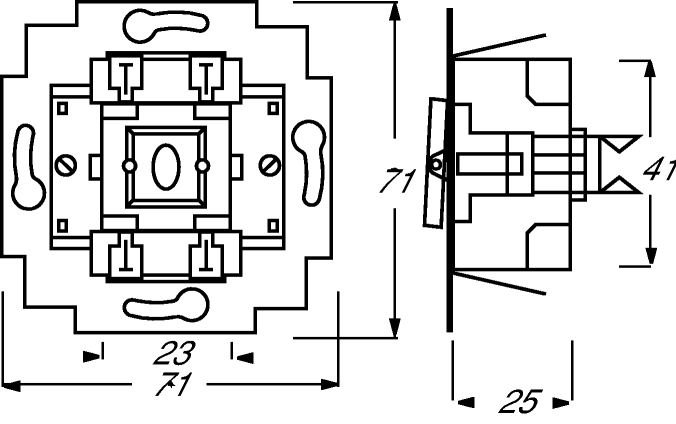

      Dimensions

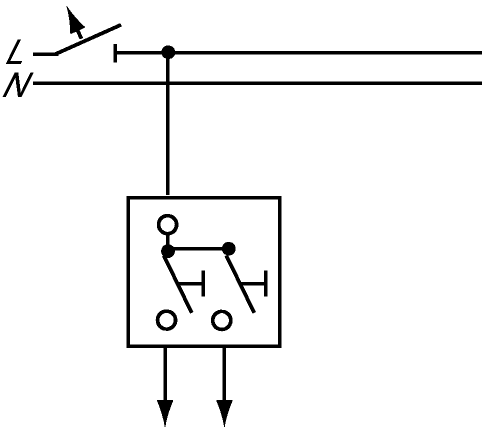

      Wiring diagram
      2gang 1way, -205

      Related products

      Compatible with
      Page 1 of 2
      Item was added to the parts list.
      Rocker 1785-82
      2CKA001751A2744

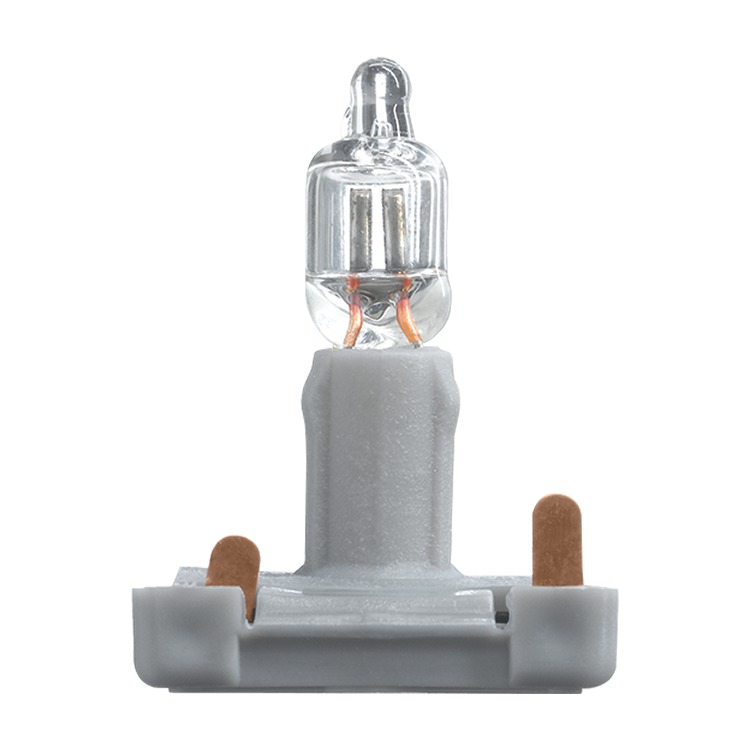

      plug-in neon lamp 8338-1
