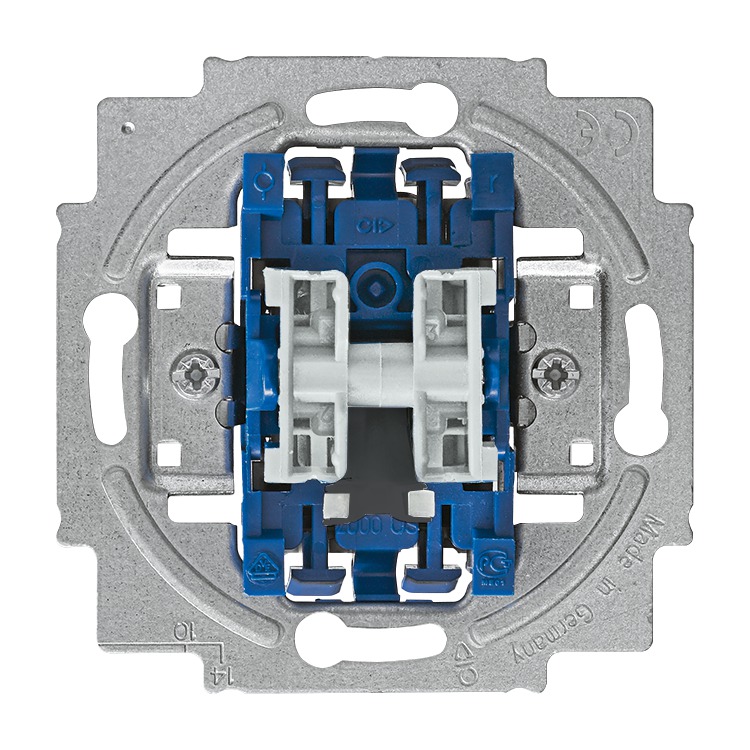

Rocker Switch Mechanism, control
2gang switch with N-clamp 16 A

Take over in my parts list / tender specifications

Functions at a glance

  • with LED,
  • Rated voltage: 250 V~
  • Rated current: 16 AX
  • suitable for: LEDi / CFLi
    • Rated output: 200 W
  • Protection class (device): IP 20
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)

      Order details

      Article No.:2400/5 USK
      Order No.:2CKA001012A2237
      EAN:4011395223819
      Customs tariff number:85365080
      Price group:01
      Price:41,30 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates

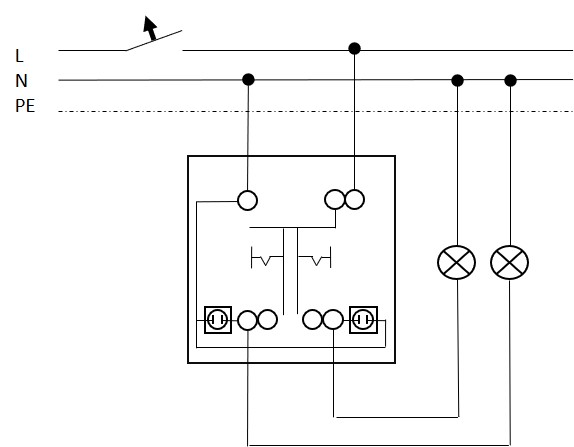

      Wiring diagram
