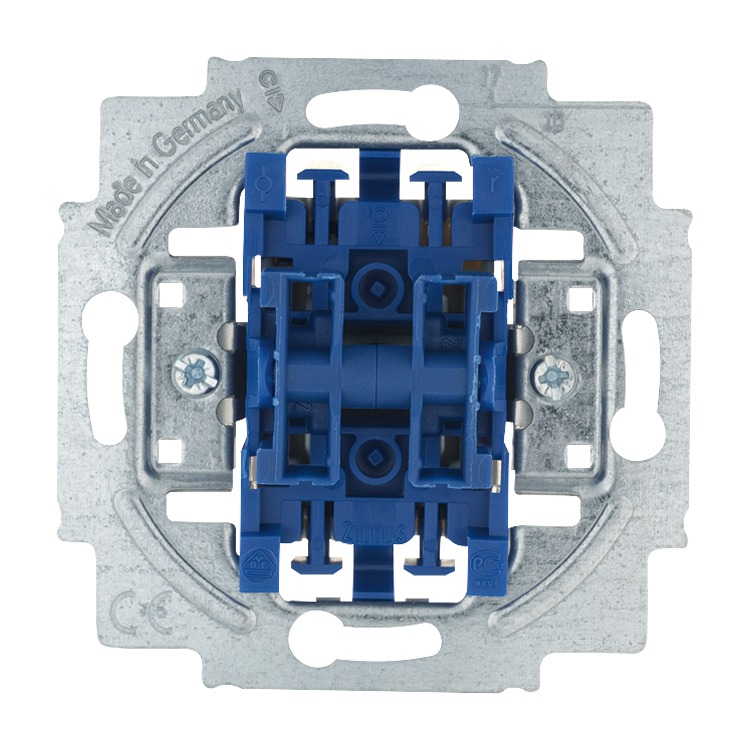

Functions at a glance

  • With illumination.
  • Rated voltage: 250 V~
  • Rated current: 10 AX
  • suitable for: LEDi / CFLi
    • Rated output: 100 W
  • Protection class (device): IP 20
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)

      Order details

      Article No.:2000/5 USGL
      Order No.:2CKA001012A1135
      EAN:4011395007709
      Customs tariff number:85365080
      Price group:01
      Price:22,30 EUR plus VAT
      Info sheet:Download PDF
      Dimensions
      Wiring diagram
      2gang 1way SP
