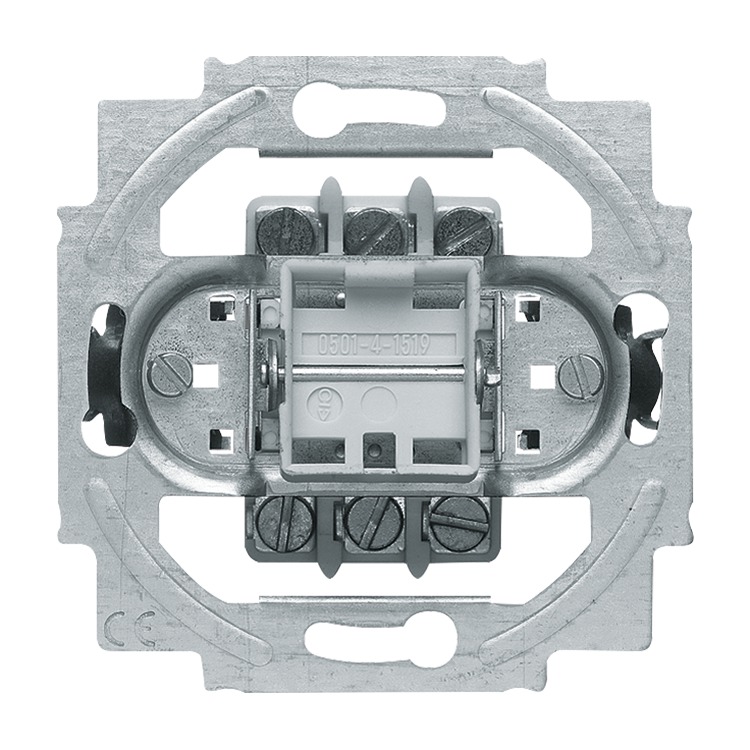

Rocker Switch Mechanism
3-pole, 1gang 1way switch

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Rated voltage: 400 V~
  • Rated current: 16 AX
  • suitable for: LEDi / CFLi
    • Rated output: 200 W
  • Protection class (device): IP 20
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
    • With screw-type terminals. Non-illuminable.

      Order details

      Article No.:2000/3 US
      Order No.:2CKA001011A0816
      EAN:4011395780404
      Customs tariff number:85365080
      Price group:01
      Price:41,65 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates

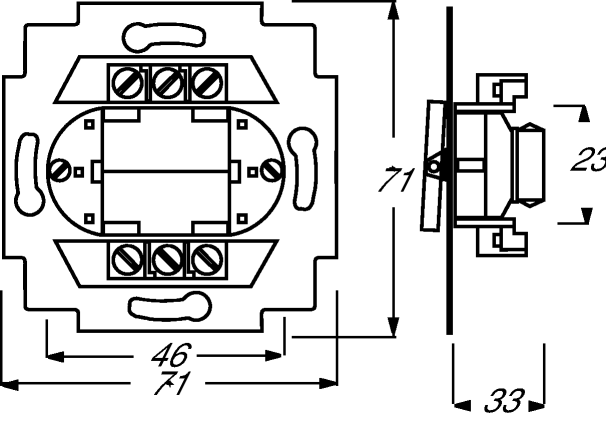

      Dimensions

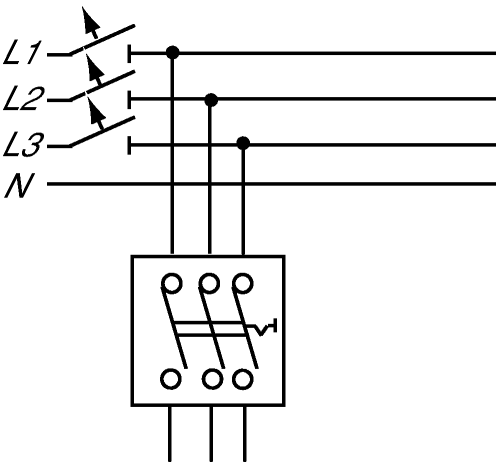

      Wiring diagram
      1gang 1way 3-pole

      Related products

      Compatible with
      Page 1 of 2
      Item was added to the parts list.

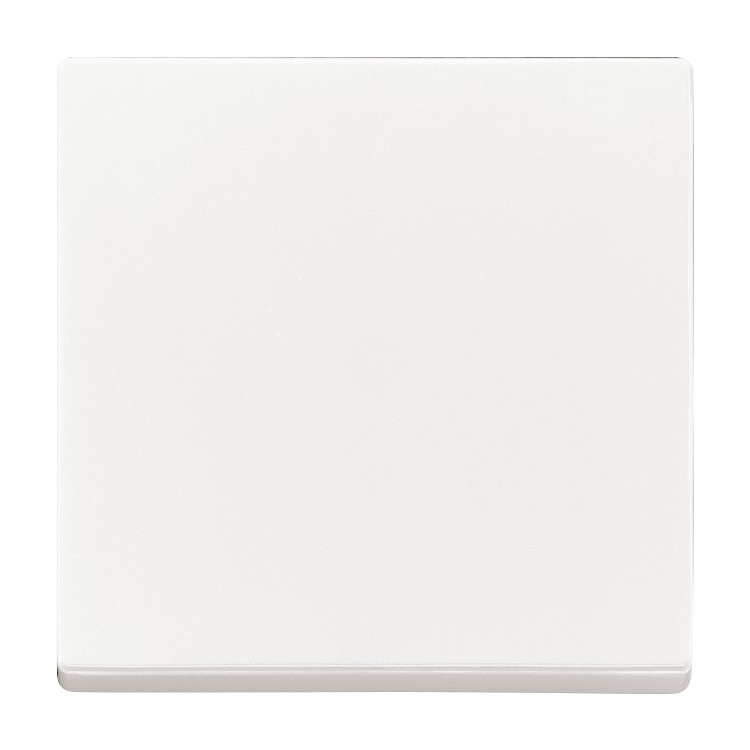

      Rocker 1786-84
      2CKA001751A2749

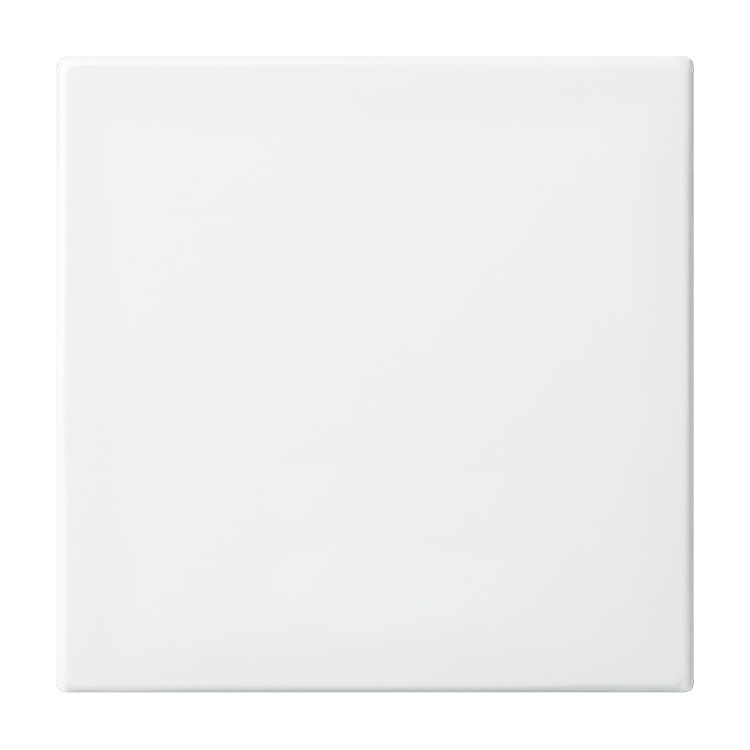

      Rocker 2506-914
      2CKA001731A2002

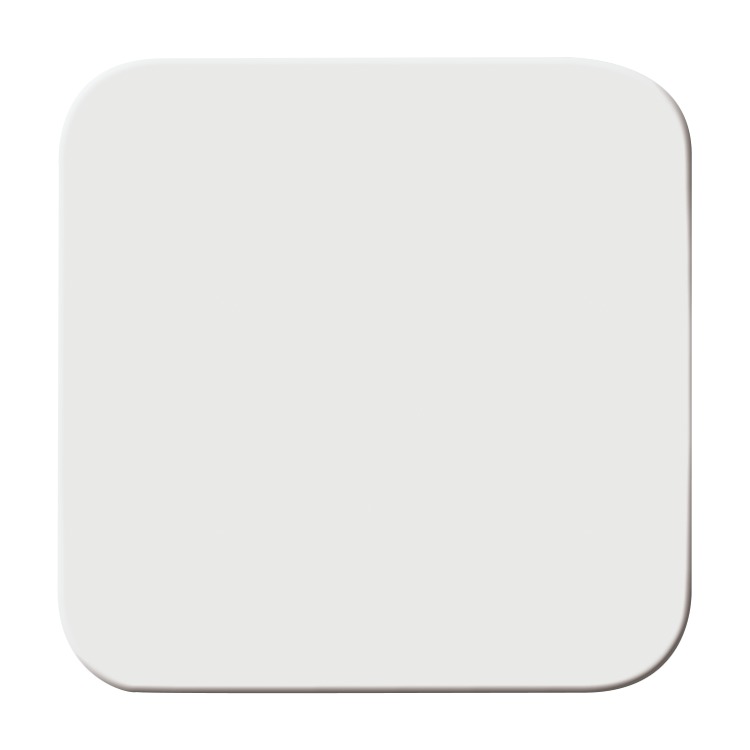

      Rocker 2506-214
      2CKA001731A0876

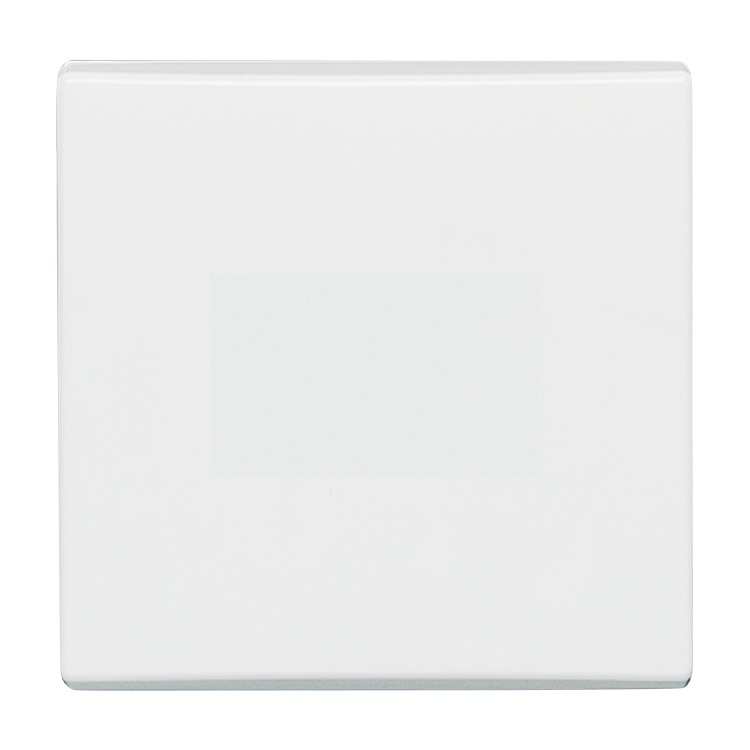

      Rocker 2106-34
      2CKA001731A1593
