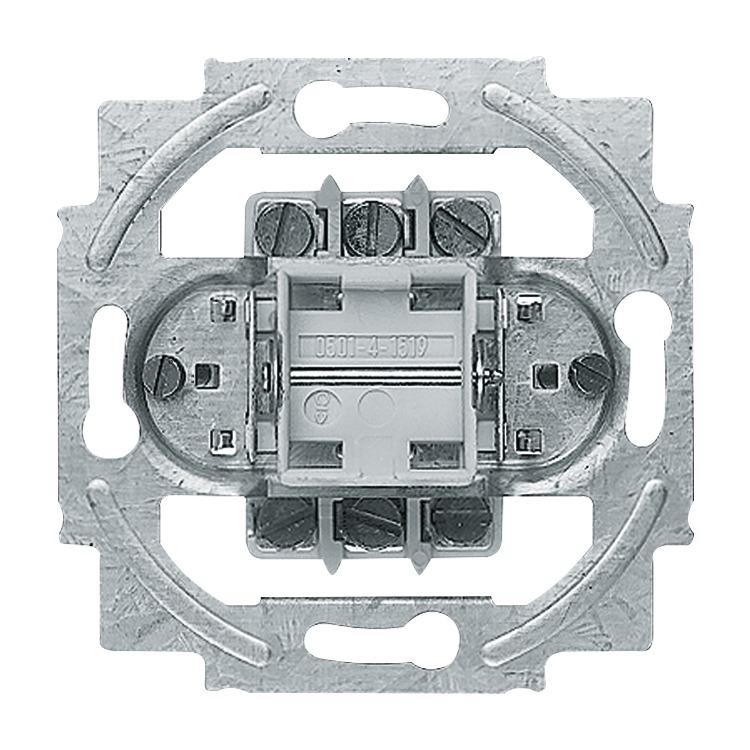

Rocker Switch Mechanism
DP, 1gang 2way

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Rated voltage: 250 V~
  • Rated current: 10 AX
  • suitable for: LEDi / CFLi
    • Rated output: 100 W
  • Protection class (device): IP 20
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
    • With screw-type terminals. Non-illuminable.

      Order details

      Article No.:2000/6/2 US
      Order No.:2CKA001012A0954
      EAN:4011395007006
      Customs tariff number:85365080
      Price group:01
      Price:35,76 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates
      Tips / Tricks

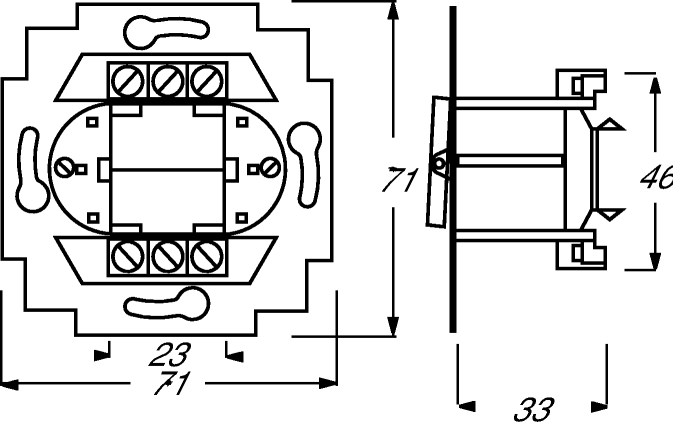

      Dimensions

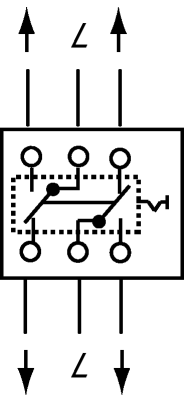

      Wiring diagram
      1gang 2way switch, 2-pole
