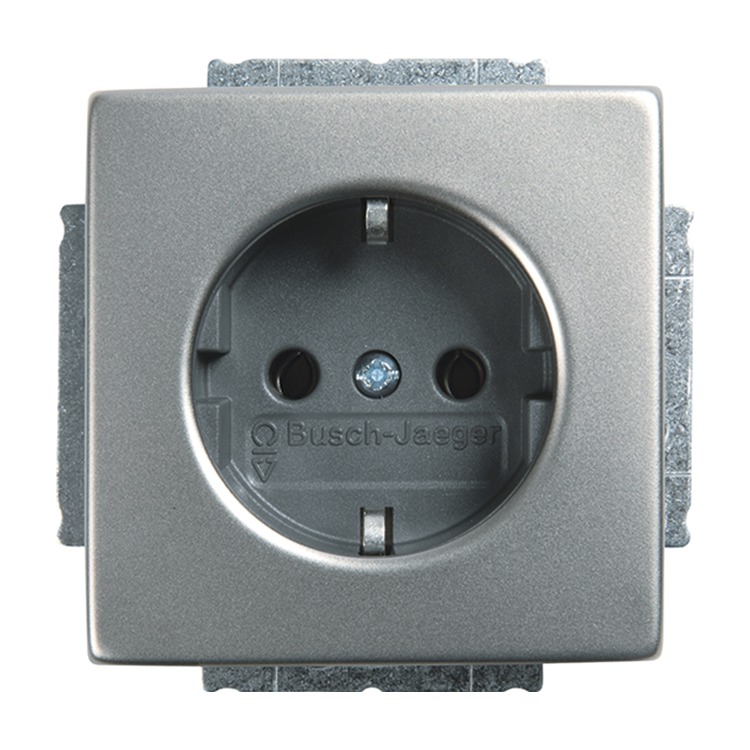

SCHUKO® socket outlet

Take over in my parts list / tender specifications

Functions at a glance

  • With screwless terminals.
  • DP (2 P + E)
  • Material stainless steel.
  • Anti fingerprint.
  • Rated voltage: 250 V~
  • Rated current: 16 A
  • Protection class (device): IP 20

      Order details

      Article No.:20 EUC-866
      Order No.:2CKA002011A3850
      EAN:4011395086889
      Customs tariff number:85366990
      Price group:04
      Price:23,58 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates
      Dimensions
