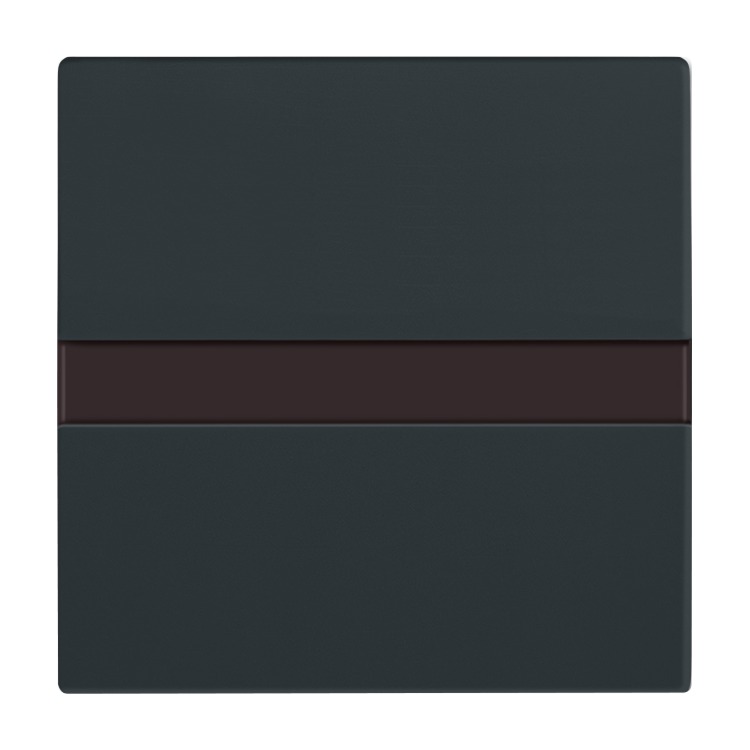

Functions at a glance

• With notice LED when manual operation is necessary.
• Movement detector push-button switch combination.
• Push switch function possible at all times.
• For switching lighting systems that depend on brightness and movement.
• Extension of the detection range by means of master/slave combination.
• Additional activation/deactivation possibility through pushbutton input.
• Adjustable operating mode: automatic mode, automatic (motion-controlled) switch-on and switch-off.
• Adjustable operating mode: semiautomatic, manual switch-on, automatic (timer and movement-controlled) switch-off.
• Adjustable operating mode: automatic mode, automatic switch-on, manual switch-off.
• With continuous light/continuous Off function.
• Adjusting elements on rear side.
• Surveillance density: 9 sectors with 28 switching segments.
• Switch-off delay: 1 to 10 min., adjustable.
• For Universal relay insert 6440/01 U.
• For Universal e-contact insert 6440/04 U.
• For Universal slave insert 6440/05 U.

• Control element: 2 controllers for setting the brightness switching threshold and switch-off delay.
• Display elements: LED for status display.

• Protection class (sensor): IP 20
• Temperature range (device): 0 °C - 35 °C
• Detection range: frontal: 5 m, lateral: 3 m, at mounting height: 1.1 m
• Detection range 2:
• Brightness limit value: 0.5 Lux - , Daytime operation
• Detection angle: 170 °

• Dimensions: (L x W x D): 63 mm x 63 mm x 28.3 mm
• Mounting height: 0.8 m - 1.2 m

• Please order the respective flush-mounted insert separately.
• The range specifications refer only to an ambient temperature of 21°C.
