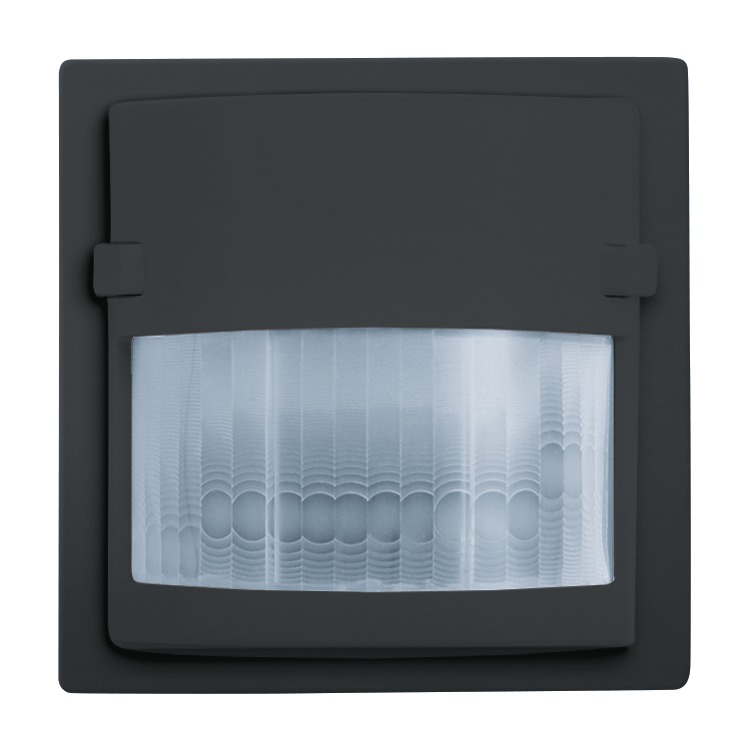

Busch-Watchdog 180 flush-mounted comfort sensor II
with select-lens
Functions at a glance
- For automatic switching of devices dependent on motion and brightness.
- For relay inserts 6401 U-102, 6402 U and 6812 U-101.
- For MOS-Fet insert 6804 U-101.
- For Dimmer insert 6593 U.
- For extension insert 6805 U.
- With integrated selector switch for ON-AUTOMATIC-OFF (lockable).
- Soft phase-out: In combination with the 6593 U (mode of operation: Soft OFF) the illumination is dimmed down within 60 sec and switched off.
- Surveillance density: 18 sectors with 72 switching segments.
- Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
- Protection class (sensor): IP 20
- Temperature range (device): 0 °C - 35 °C
- Detection range: frontal: 12 m, lateral: 8 m
- Detection range 2:
- Brightness limit value: 5 Lux - Up to daytime operation
- Detection angle: 180 °
- Mounting height: 0.8 m - 1.2 m
- Please order the respective flush-mounted insert separately.
- RAL colour number: 9005
- Surface painted.
Order details
| Article No.: | 6800-885-104 |
| Order No.: | 2CKA006800A2506 |
| EAN: | 4011395129845 |
| Customs tariff number: | 85389099 |
| Price group: | 19 |
| Price: | 140,00 EUR plus VAT |
| Info sheet: | Download PDF |
Dimensions
