Discontinuation type

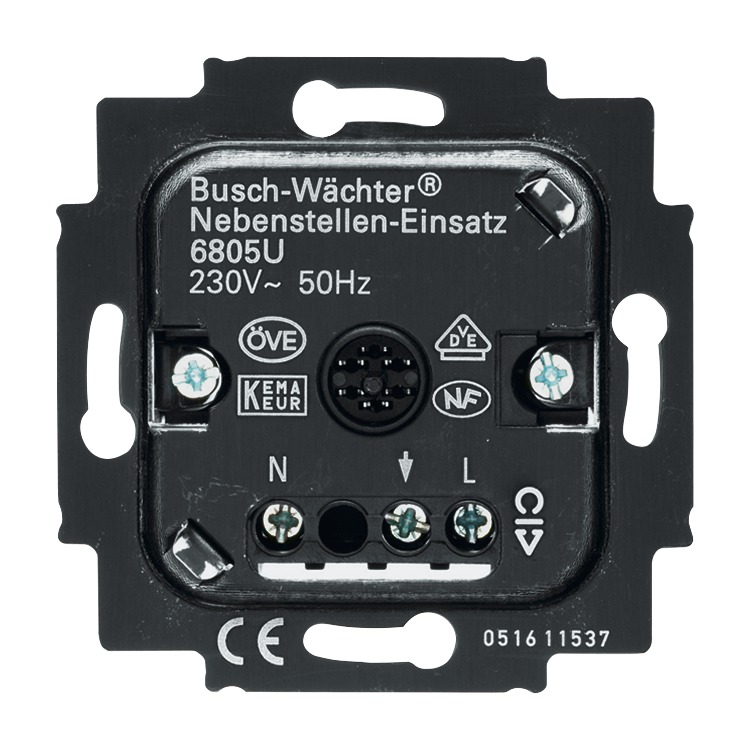

Busch-Watchdog extension insert
Functions at a glance
- 3 wire connection (neutral conductor required).
- For extending Busch-Watchdog 180 flush-mounted and Busch-Watchdog Presence tech installations.
- For combination with relay insert 6401 U-102 and 6402 U.
- For combination with MOS-Fet insert 6804 U-101.
- For combination with Dimmer insert 6593 U and 6550 U-101.
- For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101.
- For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M.
- For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Control/Signal outputs: 1 electronic output, potential-bound
- Temperature range (device): 0 °C - 35 °C
- Not combinable with relay switch insert 6812 U-101.
Order details
| Article No.: | 6805 U |
| Order No.: | 2CKA006800A1468 |
| EAN: | 4011395763308 |
| Customs tariff number: | 85365080 |
| Price group: | 19 |
| Price: | 38,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Tips / Tricks
Dimensions
Wiring diagram
Extension of the detection zone to include several extensions 6805 U in combination with a master station.
*A neutral wire is required for 6401 U-102 and 6402 U.
Activation of a light with Busch-Watchdog 180 UP Standard or Comfort 6401 U-102, 6402 U, 6804 U-101, 6593 U in combination with Busch-Watchdog Extension 6805 U and NO Contacts pushbutton.

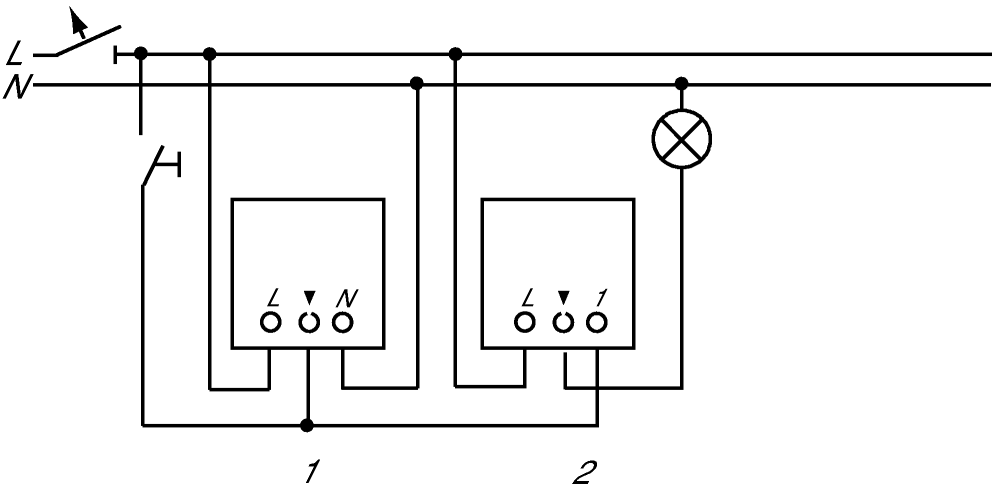

Expansion of the detection range using several extensions (1) 6805 U in combination with a central unit (2) 6401 U-102 (N-connection required), 6804U-101, or 6593 U
