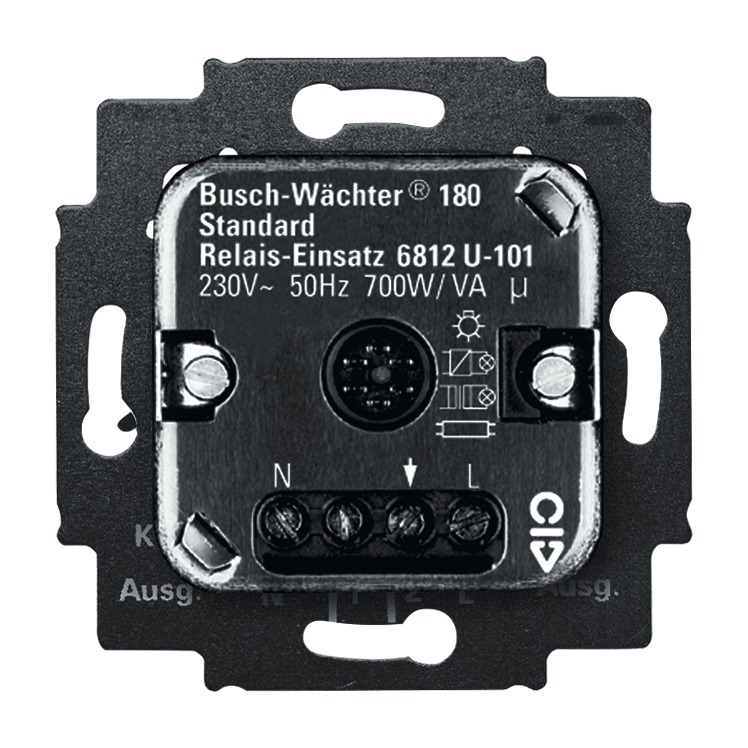

Busch-Watchdog relay mechanism

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • 3 wire connection (neutral conductor required).
  • For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101.
  • For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M.
  • For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx.
  • Rated voltage: 230 V, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Outputs: 1 Normally open contact, potential-bound
  • suitable for: 230 V incandescent lamps, 230 V halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are operated via transformers.
    • Rated output: 700 W/VA
  • Temperature range (device): 0 °C - 55 °C
      GluehlampeTrafoElektronisches-TrafoLeuchtstofflampe

      Order details

      Article No.:6812 U-101
      Order No.:2CKA006800A2011
      EAN:4011395956809
      Customs tariff number:85176200
      Price group:19
      Price:87,00 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Certificates
      Dimensions

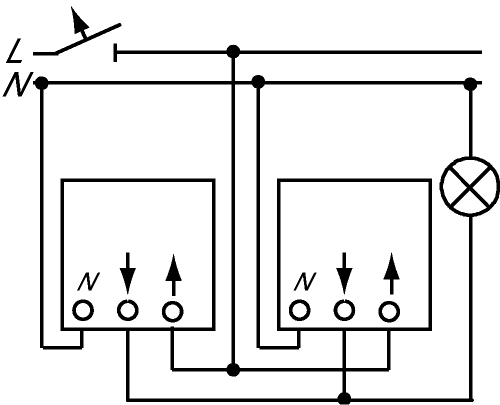

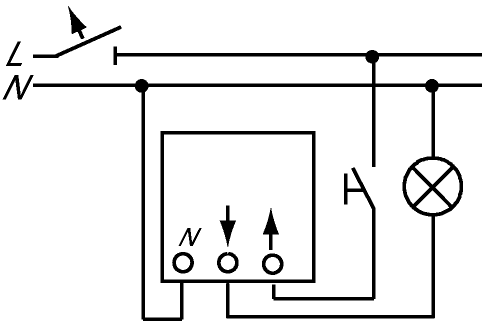

      Wiring diagram

      Related products

      Compatible with
