Discontinuation type

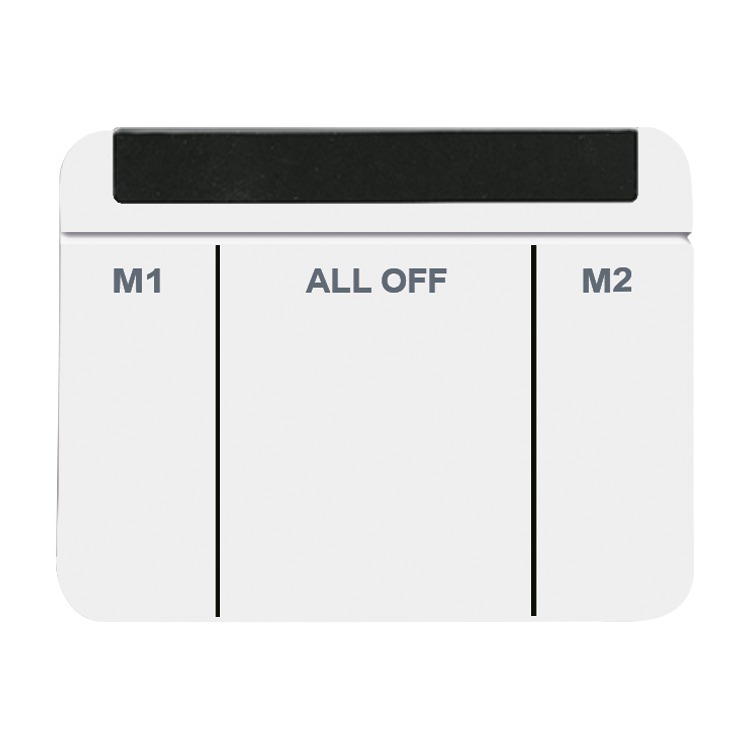

IR wall-mounted transmitter
Functions at a glance
- Battery-supplied infrared remote control.
- For IR receiver and KNX flush-mounted IR interfaces (selection of 2 memo functions for each address group and ALL OFF).
- Address group switch-over (1-5/6-10)
- Supply: 6 V Flat-Pack battery (e.g. Duracell 7 K 67, not included in delivery)
- Range: 15 m
- For programming the memory M1 and M2 the IR Mobile Remote Control 6010-xx is required.
- For function together with KNX flush-mounted, infrared interface, see Technical Manual.
Order details
| Article No.: | 6020-24 |
| Order No.: | 2CKA006020A0051 |
| EAN: | 4011395326503 |
| Customs tariff number: | 85176200 |
| Price group: | 19 |
| Price: | 124,00 EUR plus VAT |
| Info sheet: | Download PDF |
Dimensions
IR wall-mounted transmitters 6020-… and 6021-…
Horizontal/vertical transmission range of wall-mounted transmitters 6020-... and 6021-...
Transmission range of wall-mounted transmitters 6020-… and 6021-… (100% = 15 m)
Reception range of flush-mounted receivers and socket receivers (100 % = 15 m)
Horizontal detection of the flush-mounted and socket outlet receivers
