Discontinuation type

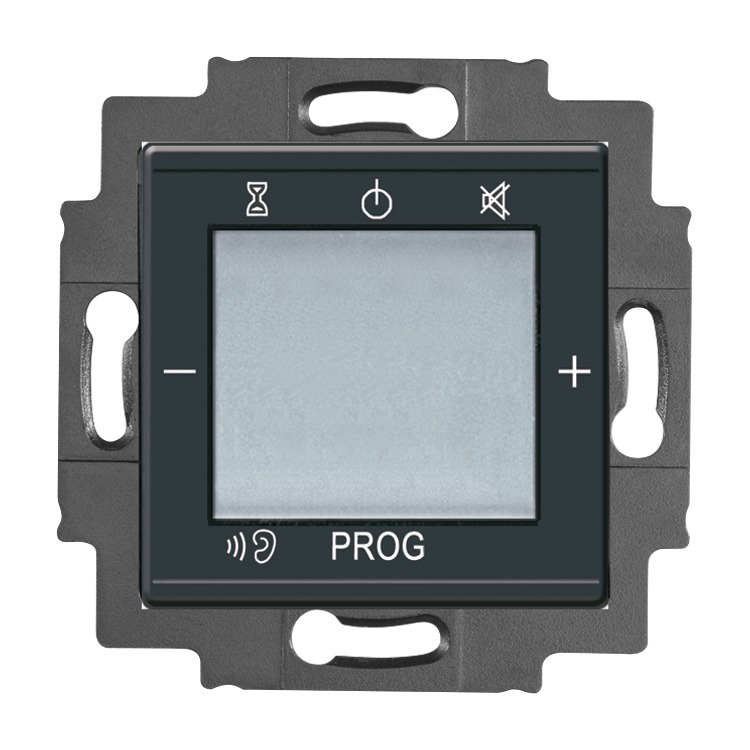

Intercom amplifier insert
with display
Functions at a glance
- Busch-AudioWorld® system amplifier.
- For individual volume control.
- For language announcements to 15 individual call zones.
- With additional broadcast function
- For switching between Busch-AudioWorld® system channel 1 and 2.
- For switching of the central radio channel.
- Optional deactivation of announcements (do not disturb).
- For mono/stereo operation.
- With noise control function.

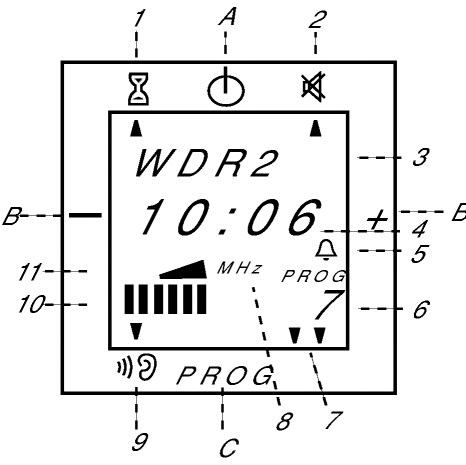

- With time display.
- With alarm function.
- With automatic switch-off function (automatic sleep mode).
- With acoustic monitoring function (baby monitor).
- Permitted speaker impedance: 8 - 16 Ohm
- Rated voltage: 15 V-
- Protection class (device): IP 20, SELV
- Mounting depth: 36 mm
- No claw. Screw-fixing via keyholes.
- RAL colour number: 7021
Order details
| Article No.: | 8214 U |
| Order No.: | 2CKA008200A0119 |
| EAN: | 4011395113226 |
| Customs tariff number: | 85184000 |
| Price group: | 19 |
| Price: | 248,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Wiring diagram
System diagram for selective call; A= floating contact (switch, push button=NO contact)
