Discontinuation type

Comfort blind insert
with memory and positioning function

Functions at a glance

  • For the manual and automatic control of roller blinds.
  • The roller blind moves to the position set using the turn knob.
  • Executes the individually programmed switching commands (UP/DOWN) in a 24-hour rhythm.
  • Suitable for roller blind drives with mechanical or electronic limit switch shut-off.
  • Suitable for operation without neutral conductor.
  • Without an extension input.
  • Power reserve of 45 minutes (maintenance-free as capacitor).
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Outputs: 2 Normally open contact
  • Rated output: 300 VA
  • Rated current: 1.3 A, cos φ0.5
  • Temperature range (device): 0 °C - 35 °C
    • Pertinent cover plates 6436-xx.
    • N-conductor connection may be required for operation with blind and roller blind drives with electronic limit switch shut-off. If no N-conductor is available, capacitor set 6498 can be used.
    • Only suitable for single unit control.

      Order details

      Article No.:6419 U
      Order No.:2CKA006410A0390
      Customs tariff number:85389099
      Price group:20
      Price:119,00 EUR plus VAT
      Info sheet:Download PDF

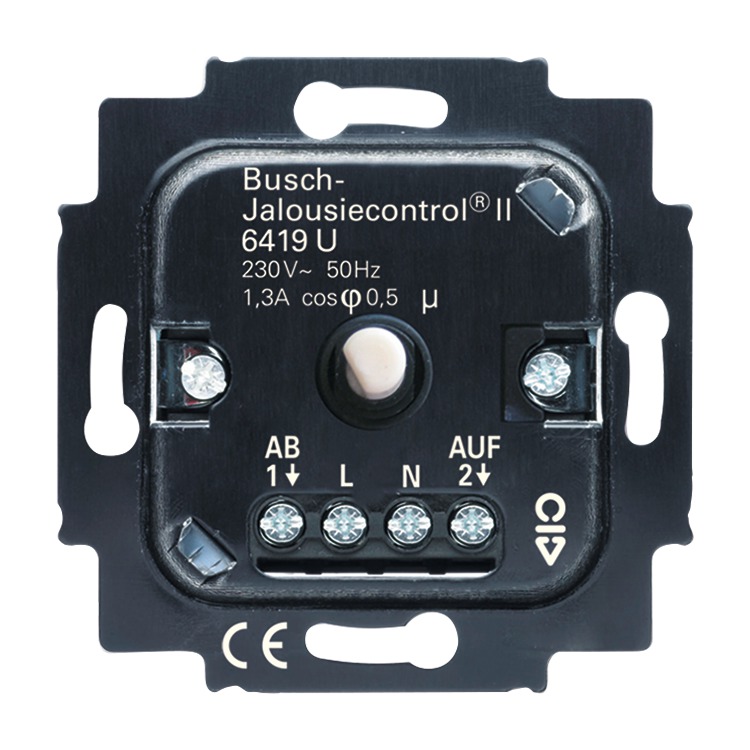

      Comfort blind insert 6419 U

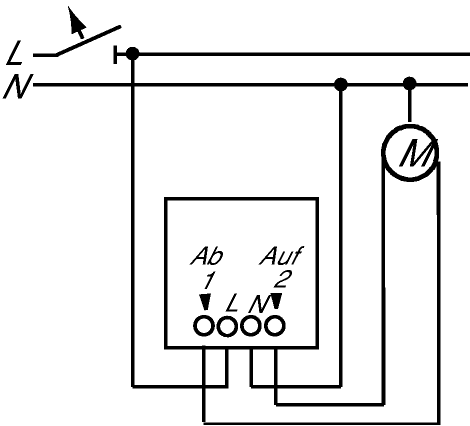

      Wiring diagram
      Comfort blind insert 6419 U
