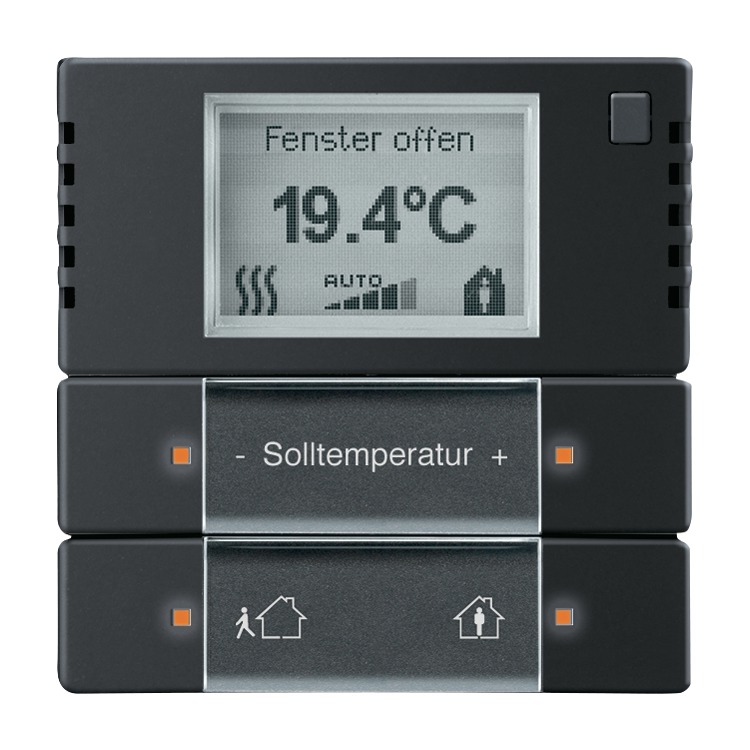

Functions at a glance

• With labelling field.
• For ABB i-bus^® KNX bus coupler 6120/12-101, 6120/13.
• Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
• Control element with room thermostat function for controlling TSA/K 230.1, TSA/K 24.1 in connection with KNX-Heating actuator, commercially available valve drives or analogue valve drives (continuous controllers).
• The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems.
• The fan stage can be switched manually or in automatic mode.
• Transparent labelling sheet with standard symbols included in delivery.
• Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
• Class of temperature controller 1
• Contribution to space heating energy efficiency 1,0%.

• Control element: Switch contacts left/right for selecting setpoint and mode of operation
• Display elements: LCD showing operation modes

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 63 mm x 63 mm

• For software and description please check the current Online-Catalogue.
• For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
