Discontinuation type

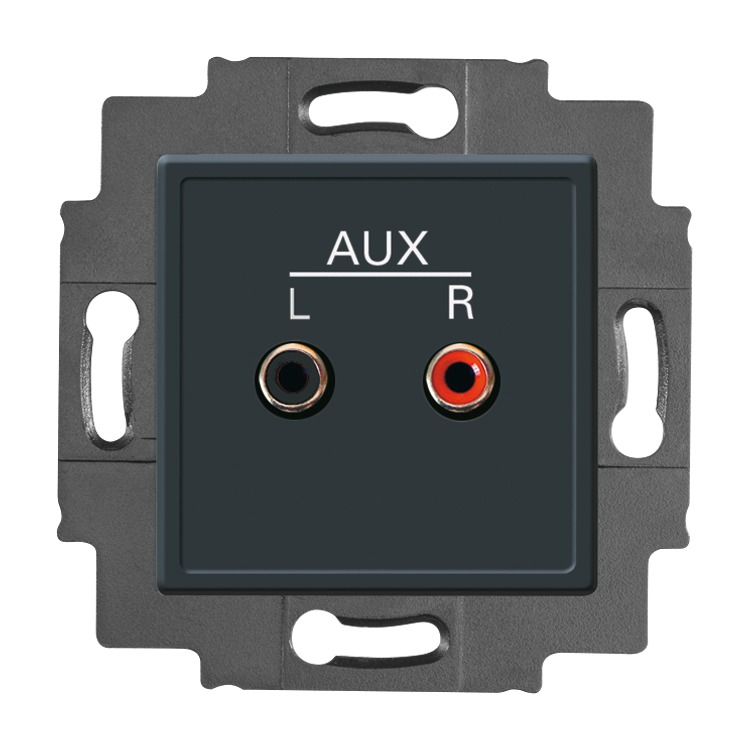

Functions at a glance

  • For feeding external music sources into the Busch-AudioWorld® public address system.
  • For 1 stereo audio channel
  • For amplifier insert 8211 U.
  • For intercom amplifier inserts 8214 U.
  • MDRC amplifier 8208.
  • Can be combined with Busch-DigitalRadio (8215 U) and Busch-Radio iNet (8216 U).
  • Rated voltage: 15 V-
  • Protection class (device): IP 20, SELV
  • Mounting depth: 34 mm
  • No claw. Screw-fixing via keyholes.
  • RAL colour number: 7021

Order details

Article No.:8210 U
Order No.:2CKA008200A0108
Customs tariff number:85184000
Price group:19
Price:178,00 EUR plus VAT
Info sheet:Download PDF

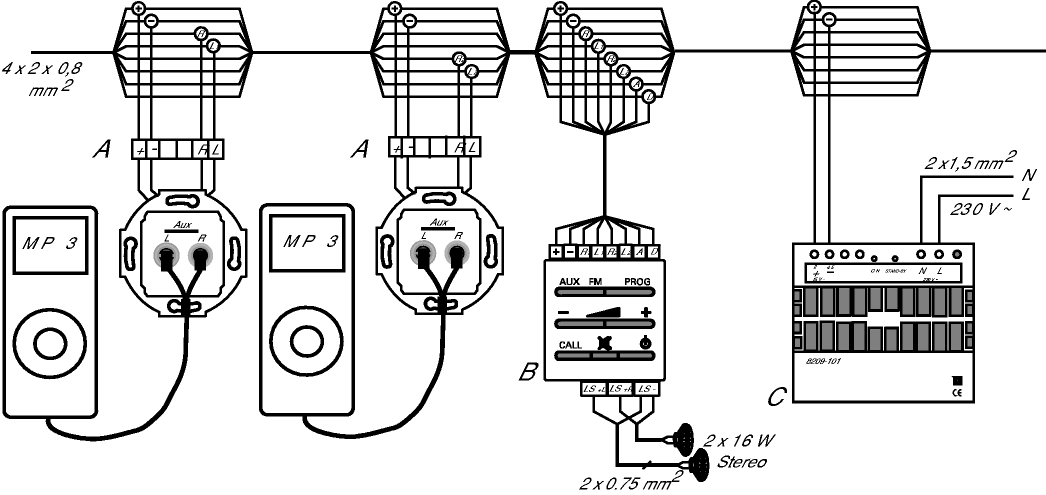

Wiring diagram
A= 8210U; B= 8212U; C= 8209-101
