Discontinuation type
MDRC power supply unit
Functions at a glance
- For extending the maximum number of system amplifiers at one base station.
- For 5 additional Busch-AudioWorld® system amplifiers.
- Parallel connection possible to base station and to each other.
- Can be used in "standalone" mode, i.e. without base station.
- Rated voltage: 230 V~, +10 % / -10 %
- Output voltage: 15 V-
- Rated frequency: 50 Hz / 60 Hz
- Rated current: 1.5 A
- Protection class (device): IP 20, SELV
- Dimensions: (L x W x D): 110 mm x 125 mm x 70 mm
- Module width: 7
- Division units: 7

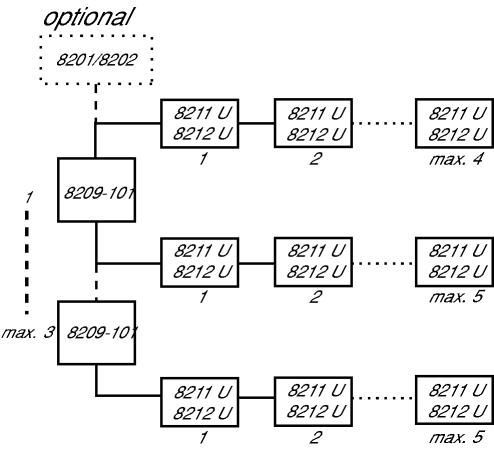

- Max. 3 MDRC power supply units per system.
Order details
| Article No.: | 8209-101 |
| Order No.: | 2CKA008200A0106 |
| EAN: | 4011395112410 |
| Customs tariff number: | 85184000 |
| Price group: | 19 |
| Price: | 215,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates

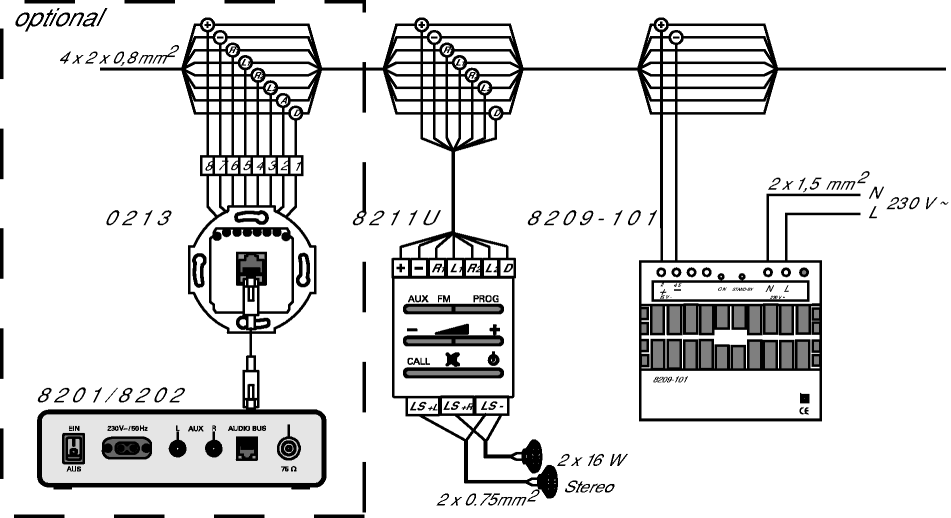

Wiring diagram
A= optional; B= 0213;
C= 8201/8202; D= 8211U; E= 8209-101
