Discontinuation type
Central unit
with RDS tuner, stereo, 2 channels
Functions at a glance
- For setting up multi-room public address systems.
- With integrated RDS tuner.
- Reception frequency: 87.50 MHz - 108.00 MHz.
- 8 radio stations storable.
- 2 separate stereo audio channels.
- 1 additional channel for voice messages.
- With intercom management function.
- With 2 external AUX inputs.
- For 4 Busch-AudioWorld® system amplifiers.
- Extendable via the MDRC power supply unit 8209-101.
- Rated voltage: 230 V~, +10 % / -10 %
- Output voltage: 15 V-
- Rated frequency: 50 Hz / 60 Hz
- Rated current: 1.2 A
- Protection class (device): IP 20, SELV
- Dimensions: (L x W x D): 53 mm x 203 mm x 201 mm
Order details
| Article No.: | 8202 |
| Order No.: | 2CKA008200A0118 |
| EAN: | 4011395113219 |
| Customs tariff number: | 85184000 |
| Price group: | 19 |
| Price: | 811,00 EUR plus VAT |
| Info sheet: | Download PDF |

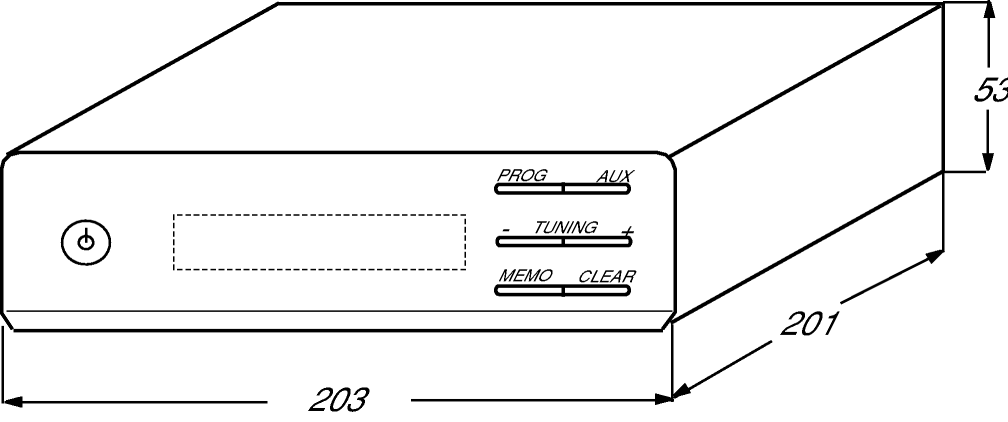

Dimensions

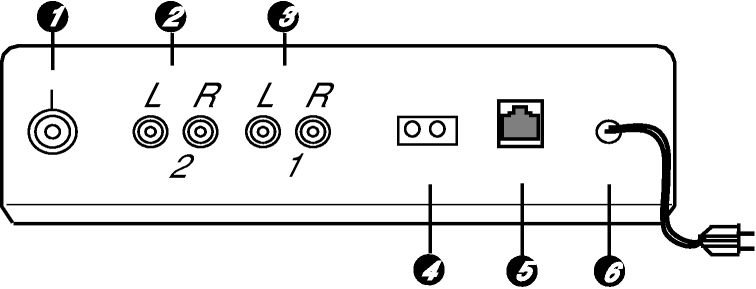

Wiring diagram
