Functions at a glance

  • 2-wire connection (neutral conductor not required)
  • For Busch-Comfort switch sensors 6815-xxx.
  • Operation in 1gang 2way installations via push switch-unit for combination with flush-mounted units.
  • Operation also possible via conventional push buttons (2020 US, 2021/6 UK).
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz / 60 Hz
  • suitable for: 230 V incandescent lamps, 230 V halogen lamps and low-voltage halogen lamps with conventional transformers or Busch Electronic Transformer.
    • Rated output: 40 - 300 W/VA
  • Temperature range (device): 0 °C - 35 °C
    • In case of electronic transformers, 5 % transformer losses.
    • In the case of conventional transformers, take ~20% transformer loss into account.
    • Not suitable for the activation of energy-saving lamps, conventional and electronic ballast units and LED lamps.
    • Not suitable for activating the staircase time delay.
    • Cannot be used to control relais.
    • Output cannot be connected in parallel.

      Order details

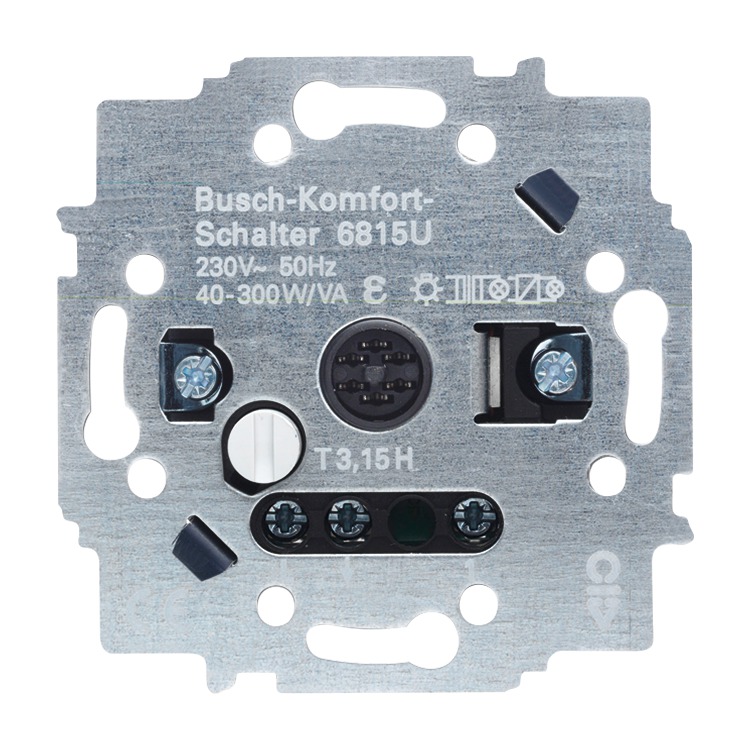

      Article No.:6815 U
      Order No.:2CKA006800A2270
      Customs tariff number:85365080
      Price group:19
      Price:63,75 EUR plus VAT
      Info sheet:Download PDF
      Wiring diagram

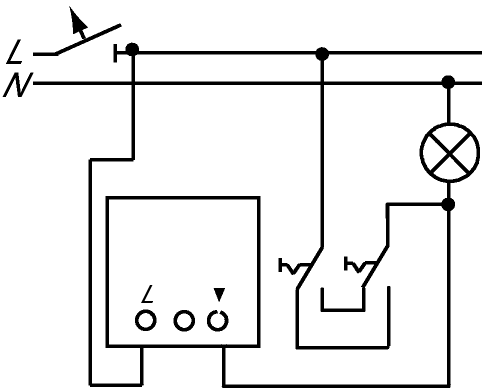

      Busch-Comfort switch 6815U with changeover circuit

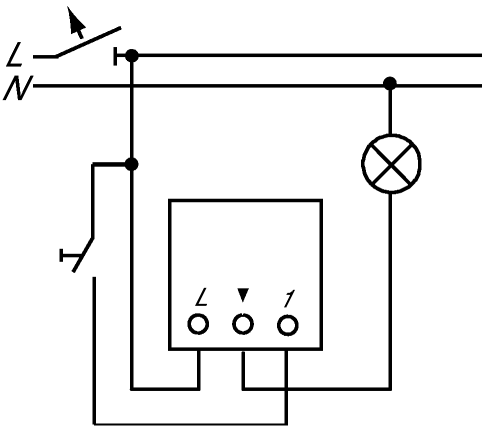

      Busch-Comfort switch 6815 U with extension. An extension is possible via L as well via N or the output.

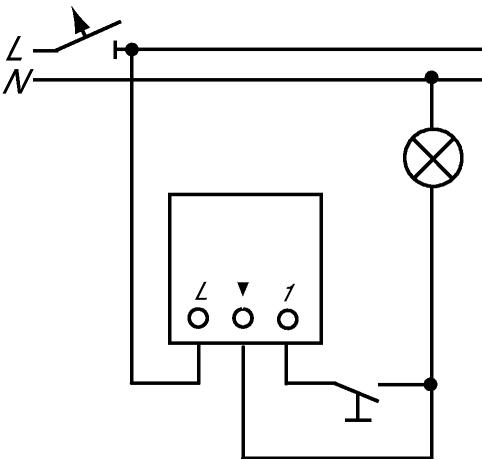

      Busch-Comfort switch 6815 U as 1gang 2way circuit (variant)
