Discontinuation type

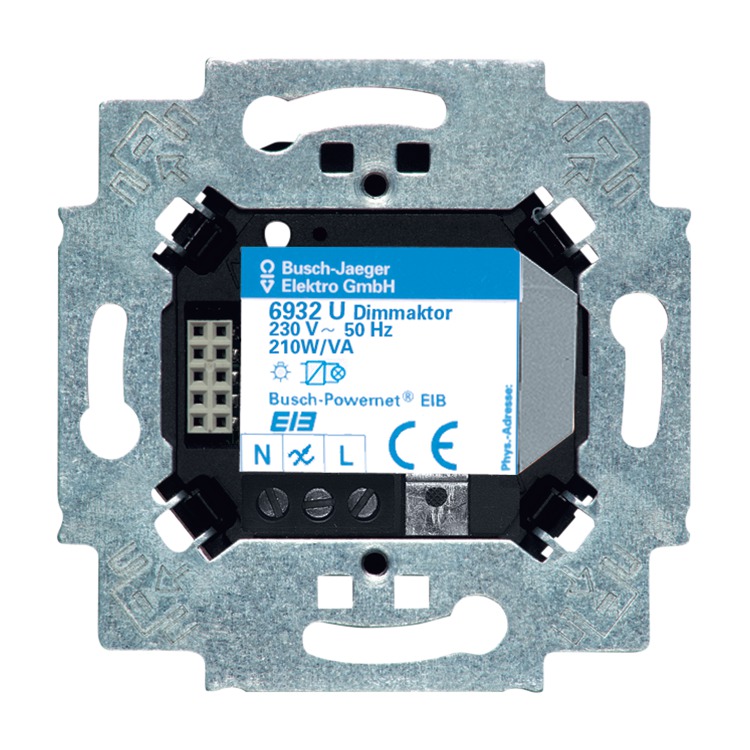

Flush-mounted dimmer actuator/sensor 1gang

Take over in my parts list / tender specifications
This article is no longer available.

Functions at a glance

  • Network coupler with dimmer output for incandescent lamps, 230 V tungsten halogen lamps or low-voltage halogen lamps using electronic transformers 40-210 W/VA.

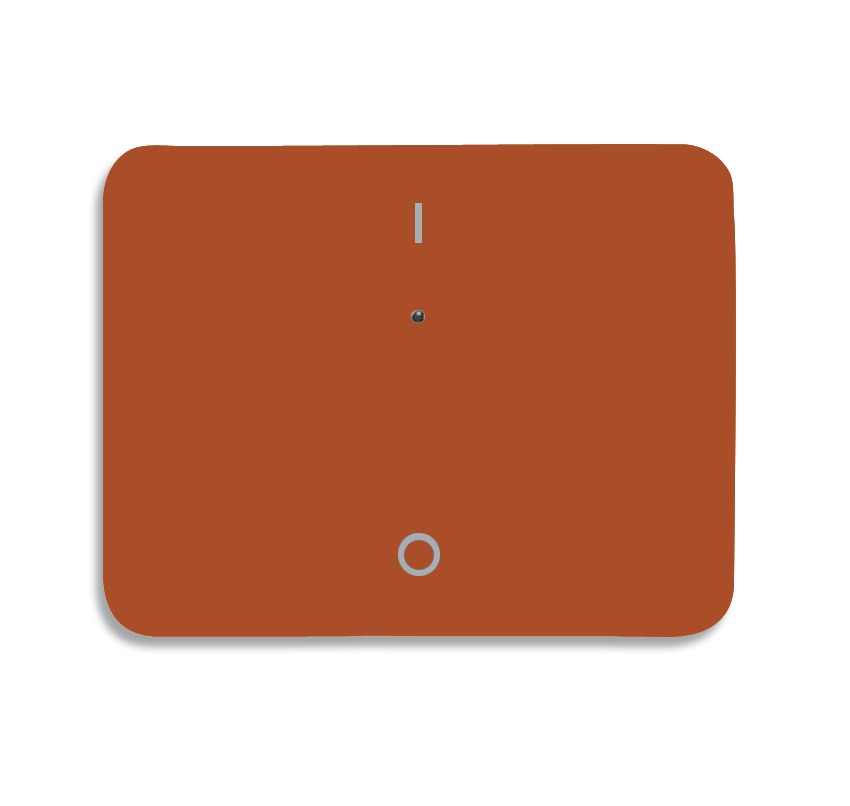

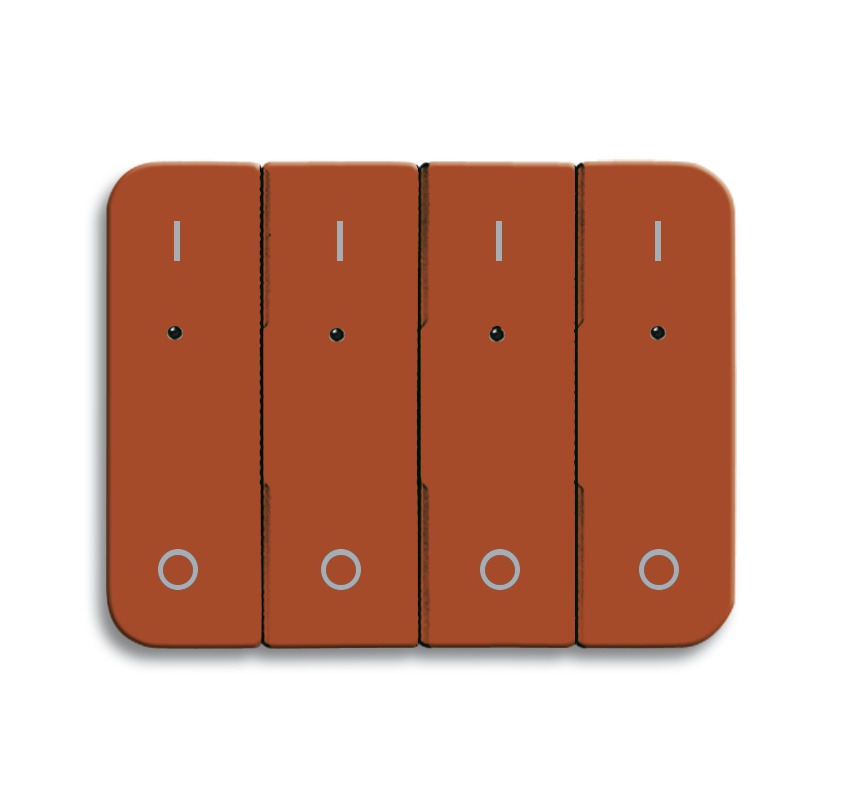

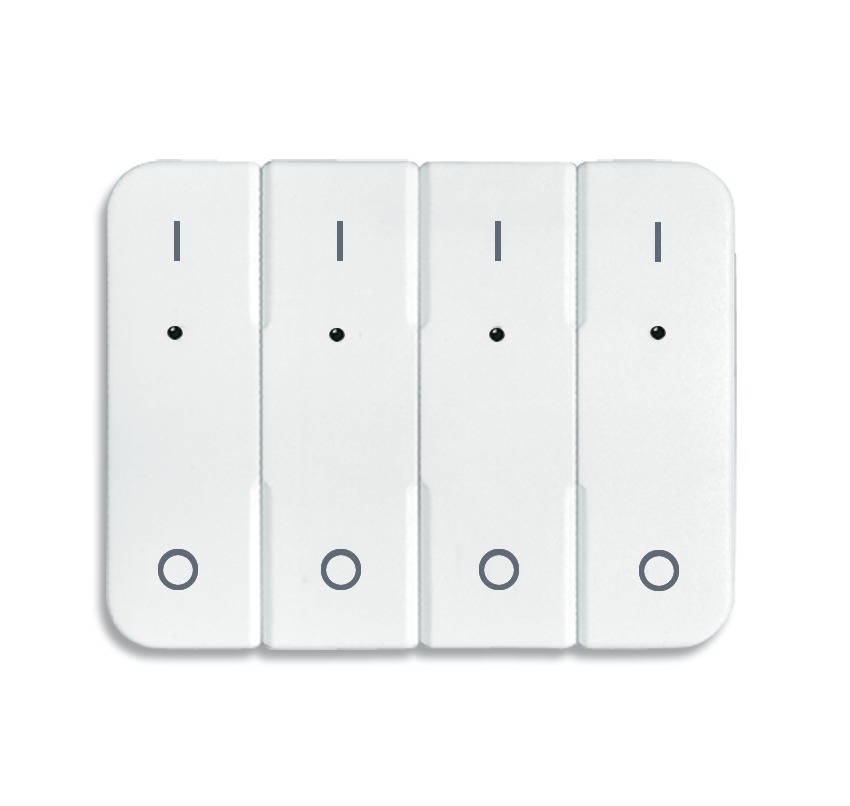

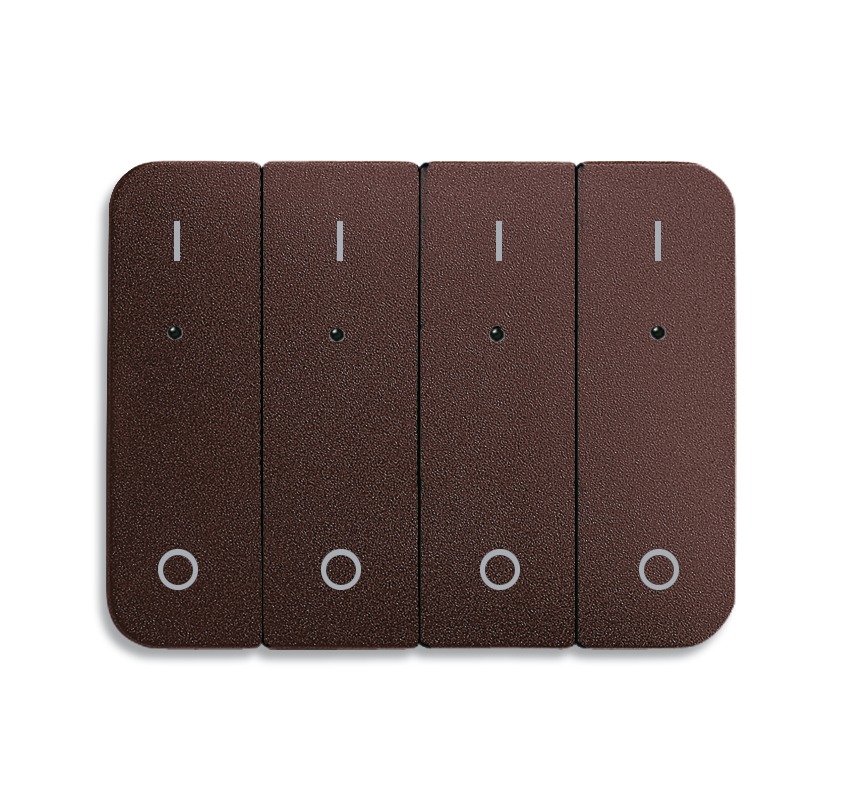

  • For all solo® control elements 612x-xxx-101, 6127 MF-xx-101, 6128/10-xxx-101, 6730-xxx, 6122-xxx, 6123-xxx, 6123 USB-xxx
  • "Local operation" with clip-on control element.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Power dissipation: 0.6 W
  • Outputs: 1 electronic output, potential-bound
  • Lastart: 230 V incandescent lamps/230 V halogen lamps
  • Rated output: 40 - 210 W
  • Lastart: electronic transformers with LV halogen lamps
  • Rated output: 40 - 210 VA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 48 mm x 44 mm x 35 mm
  • Mounting depth: 35 mm
  • As required, you can find the programmable functions in the current application description, which you can download at www.BUSCH-JAEGER-CATALOGUE.com.
  • To be mounted only in connection with commercially available flush-mounted installation boxes according to DIN 49073  > 40 mm depth gauge or Busch-Jaeger art. no. 3040, 3050 or 3060.
    Elektronisches-TrafoGluehlampe

    Order details

    Article No.:6932 U-101
    Order No.:2CKA006900A1677
    EAN:4011395037980
    Customs tariff number:85371091
    Preisgruppe:30
    Preis:268,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Technical manual
    Software

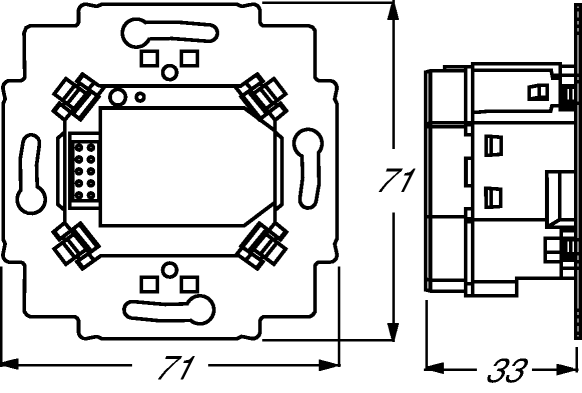

    Dimensions

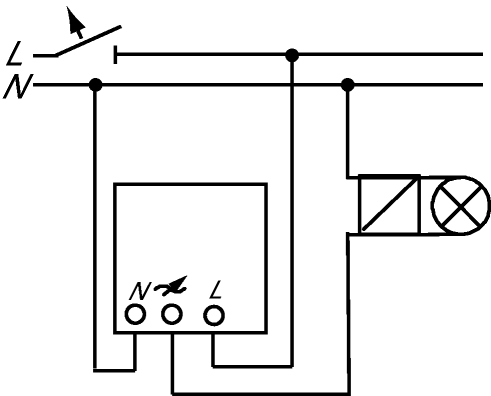

    Wiring diagram
    FM dimmer actuator, 6932 U-10x

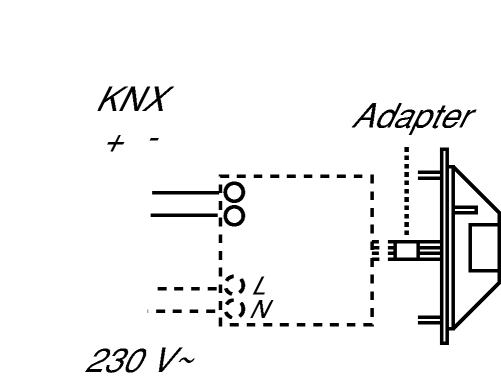

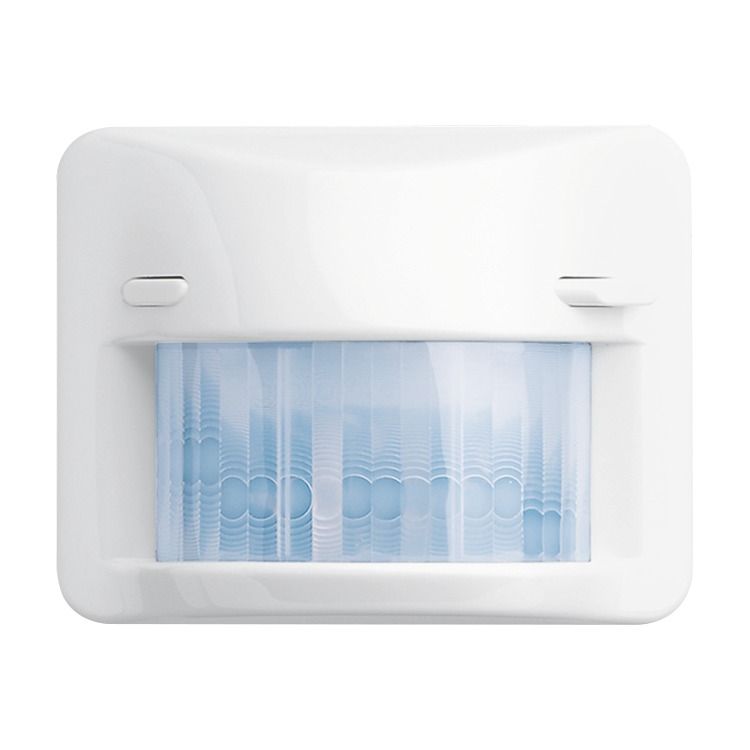

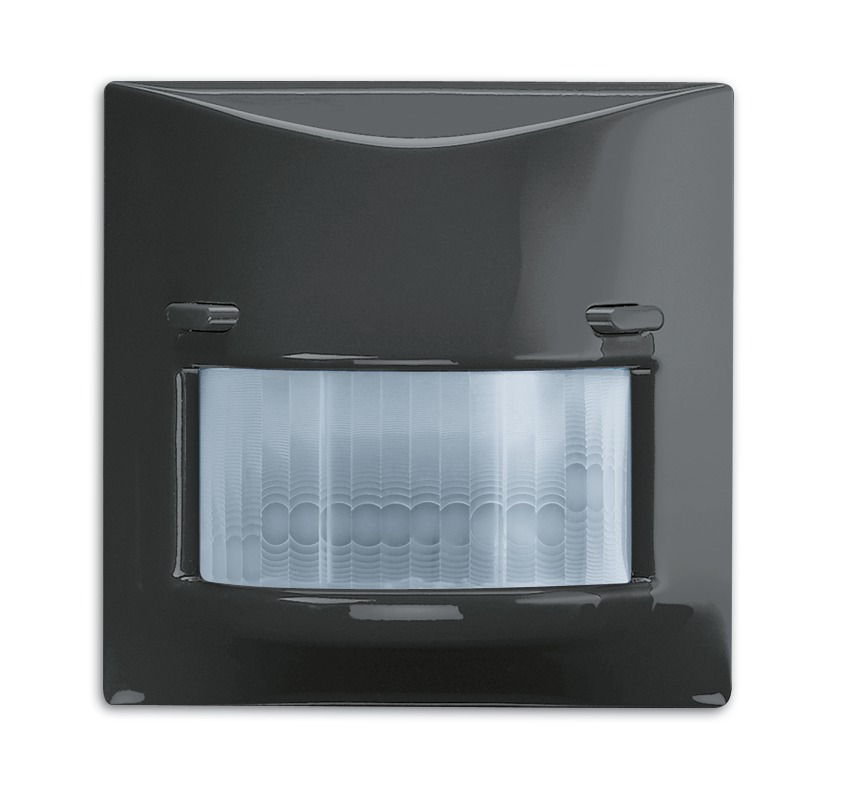

    Busch-Watchdog 180 FM sensor comfort and adaptation to (+/-;24V) 6120U-102, 6109U, 6110U-101 and (+/-; 230V~) 6920U-10x, 6931U, 6932 U-10x and 6933U

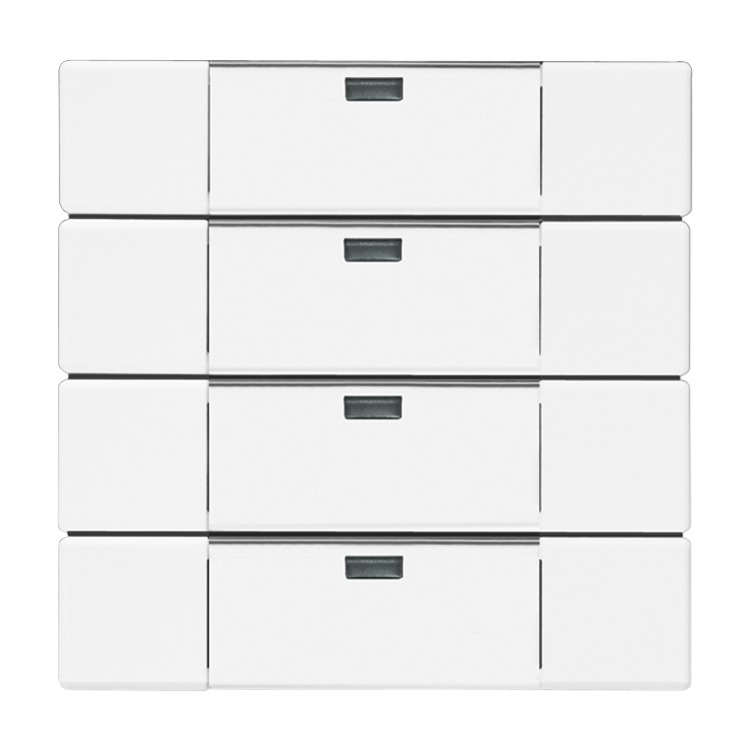

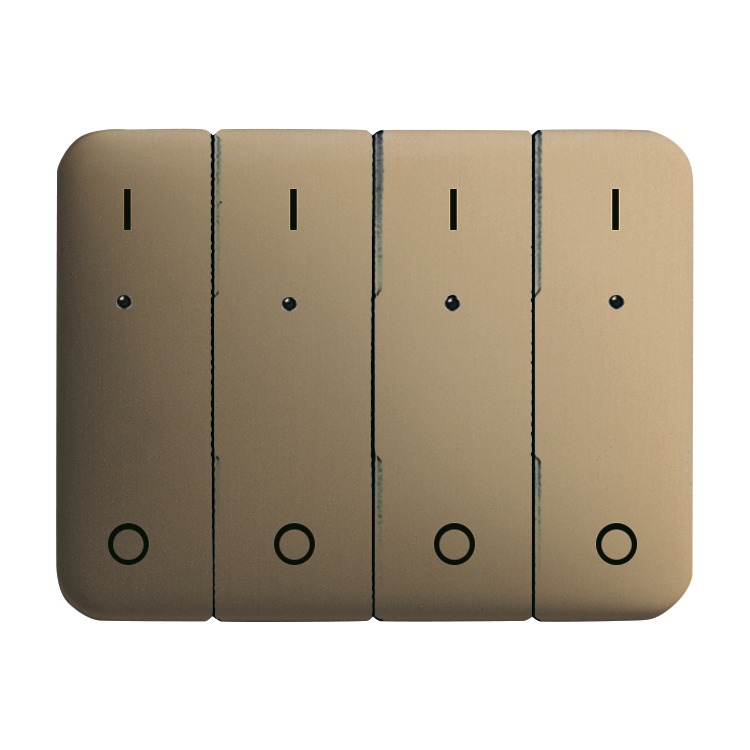

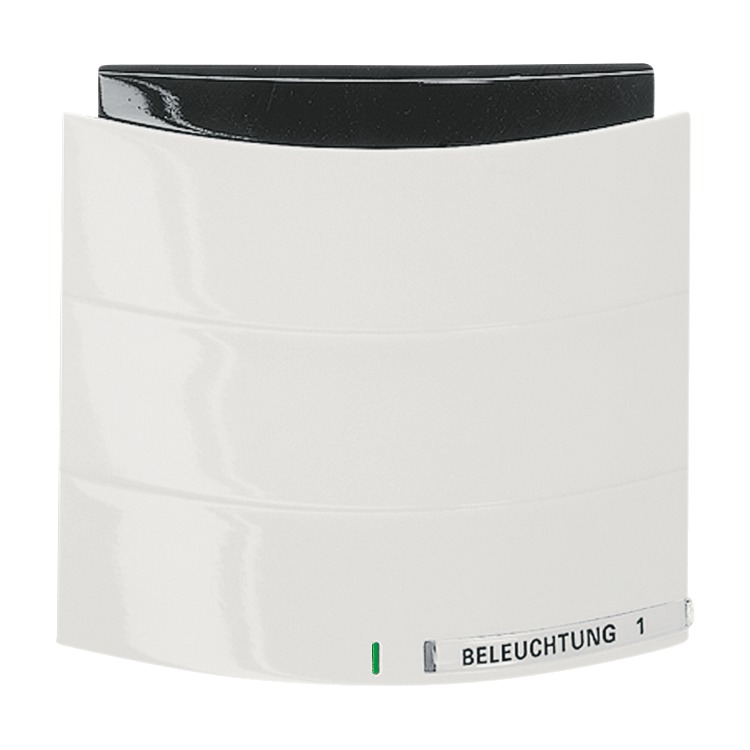

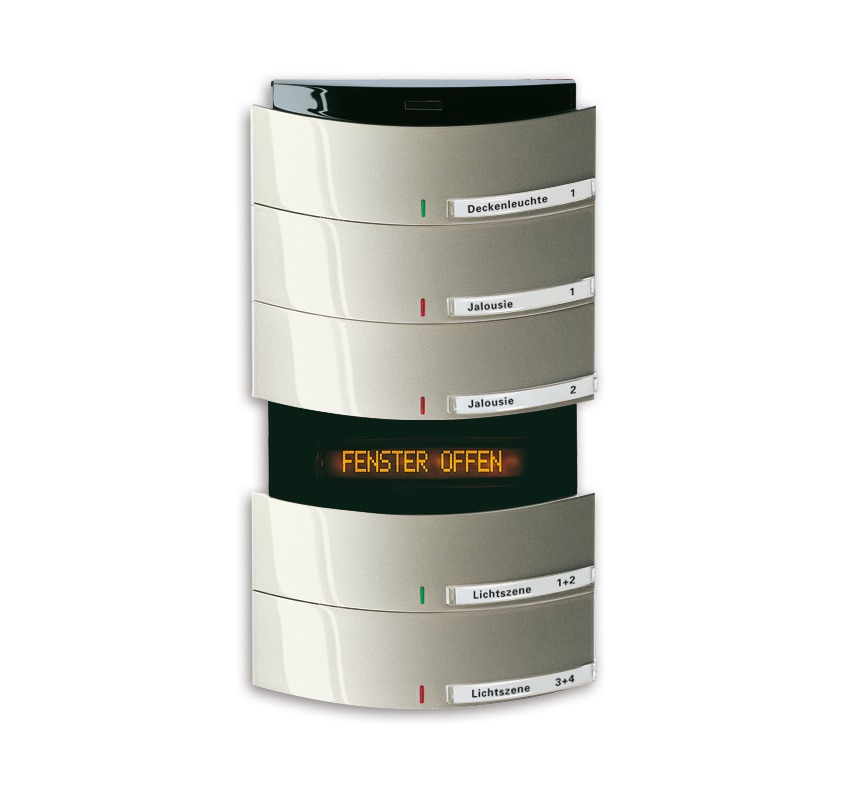

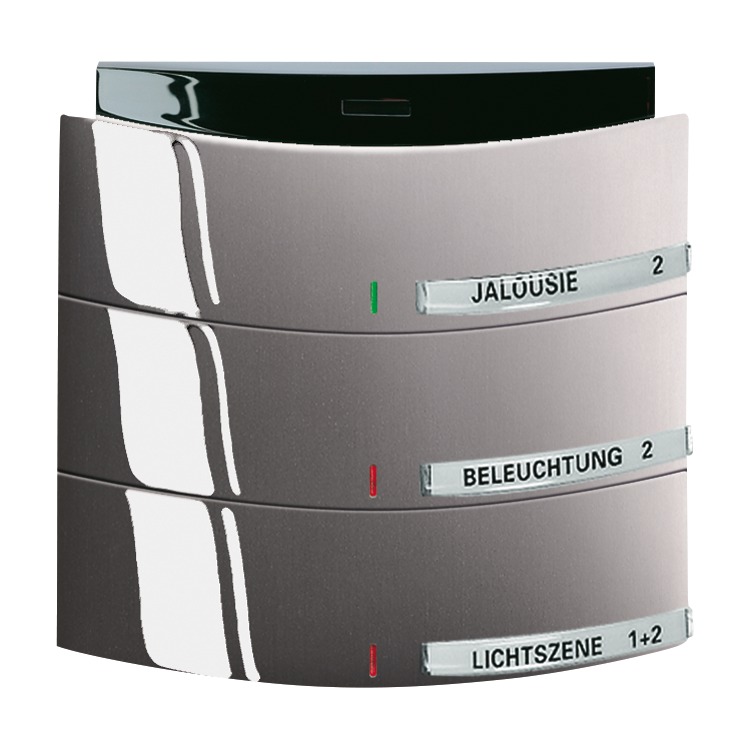

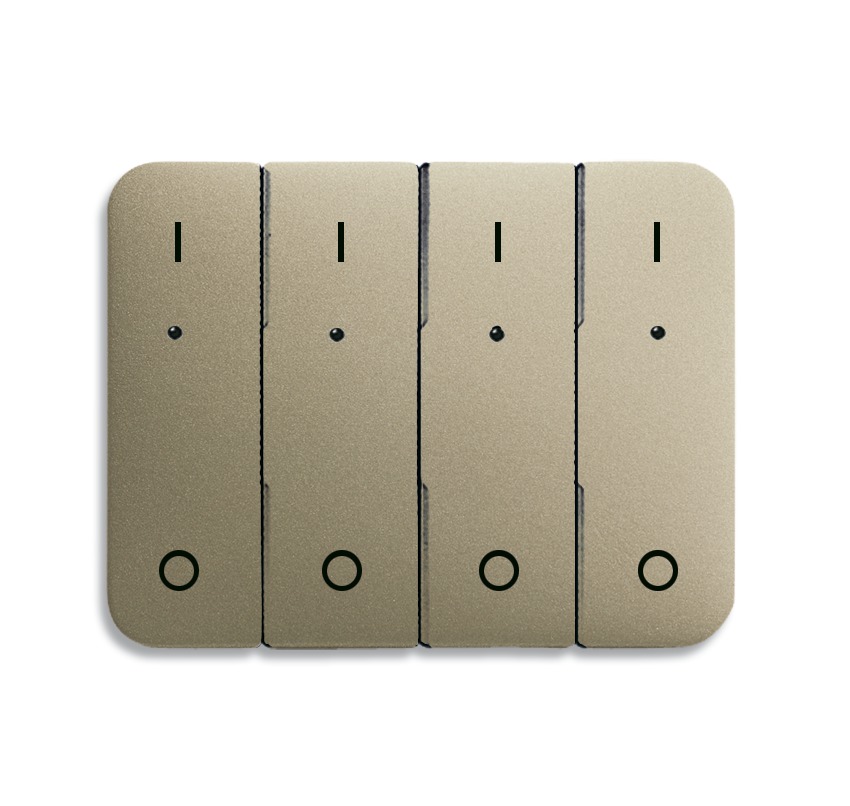

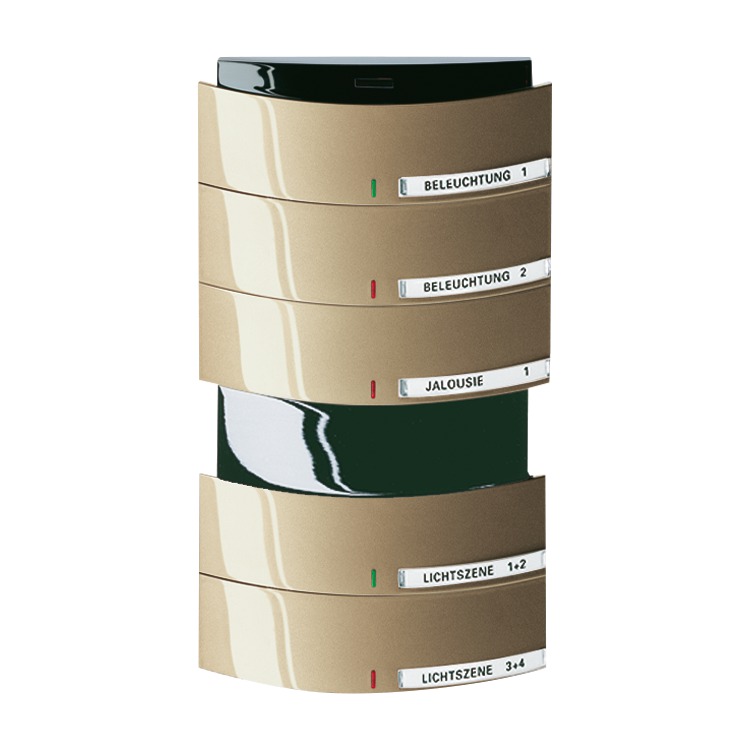

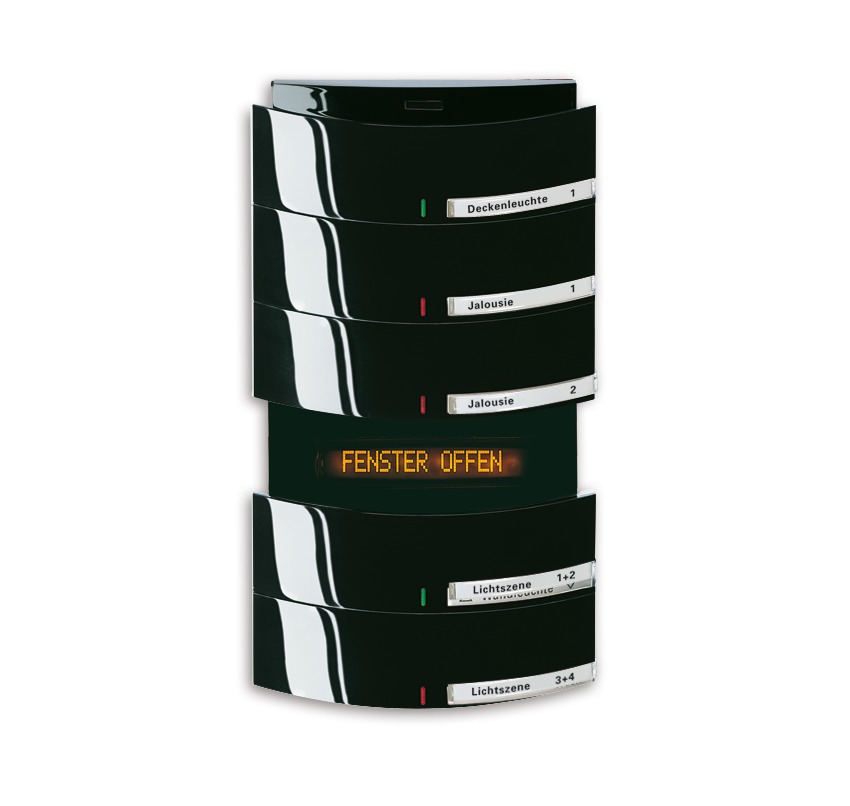

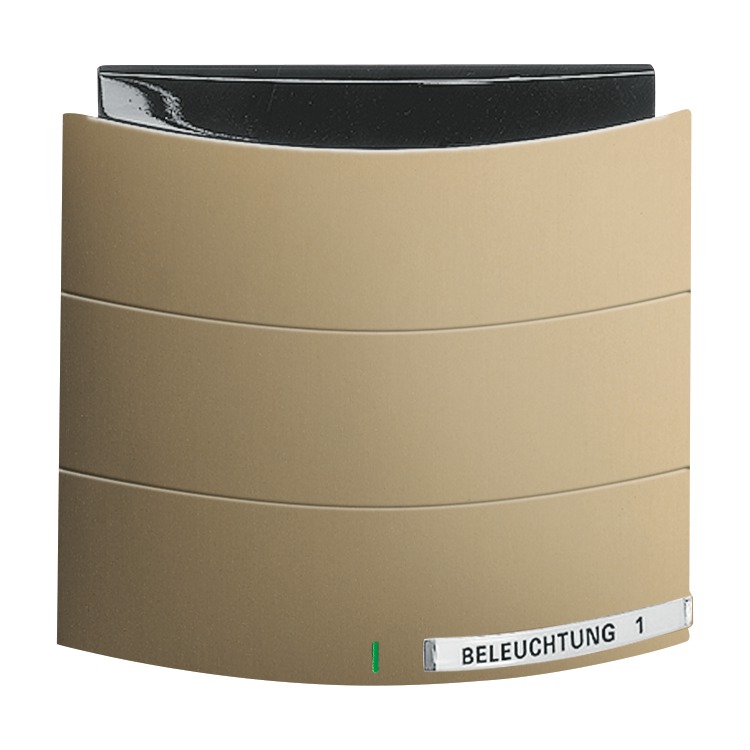

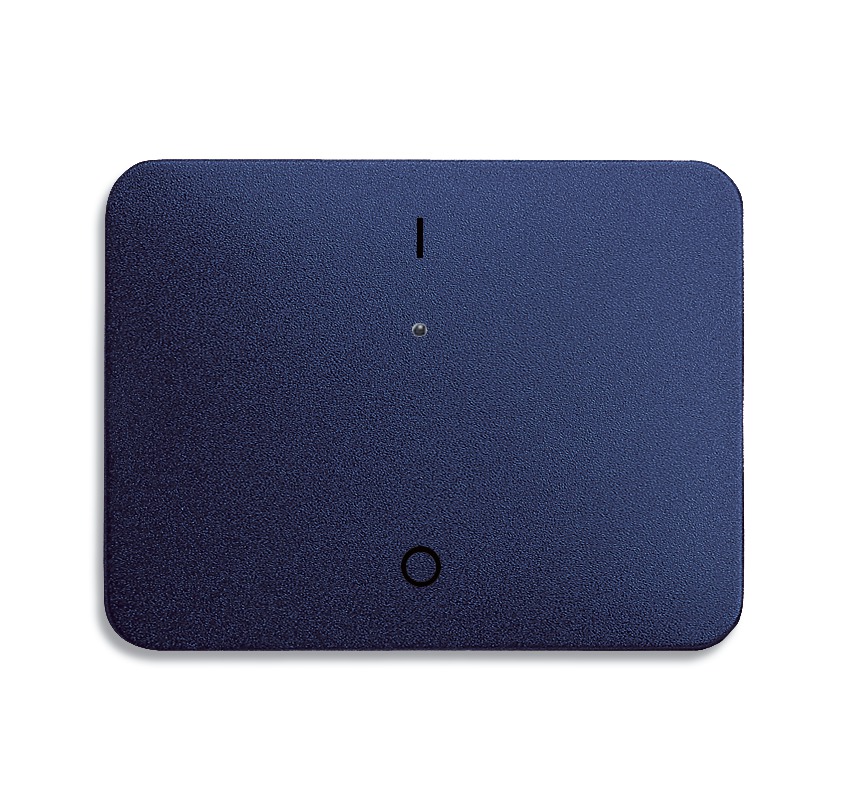

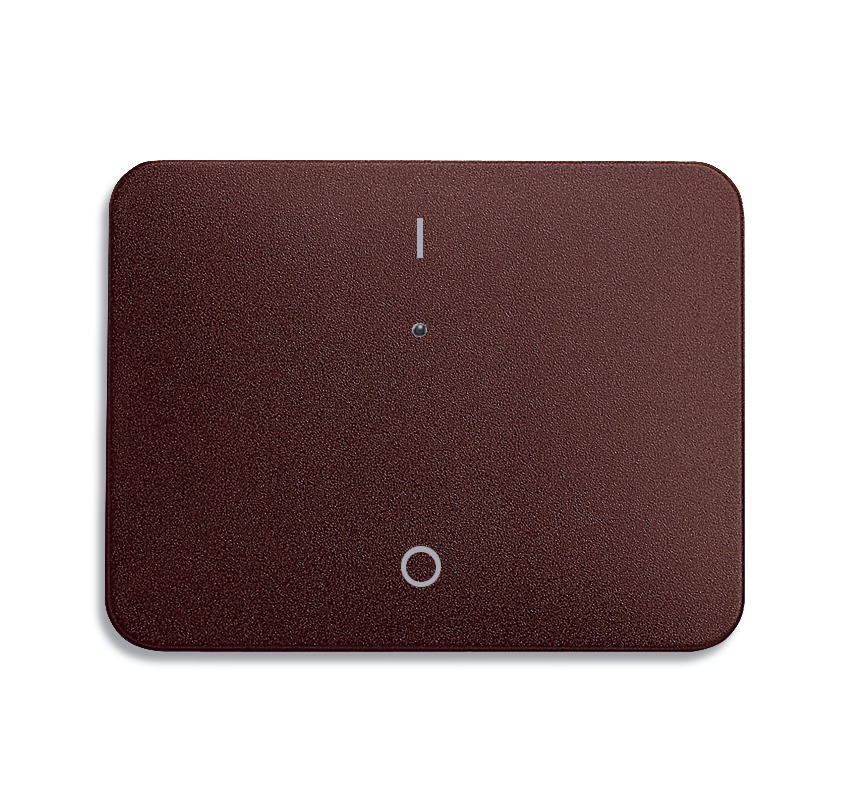

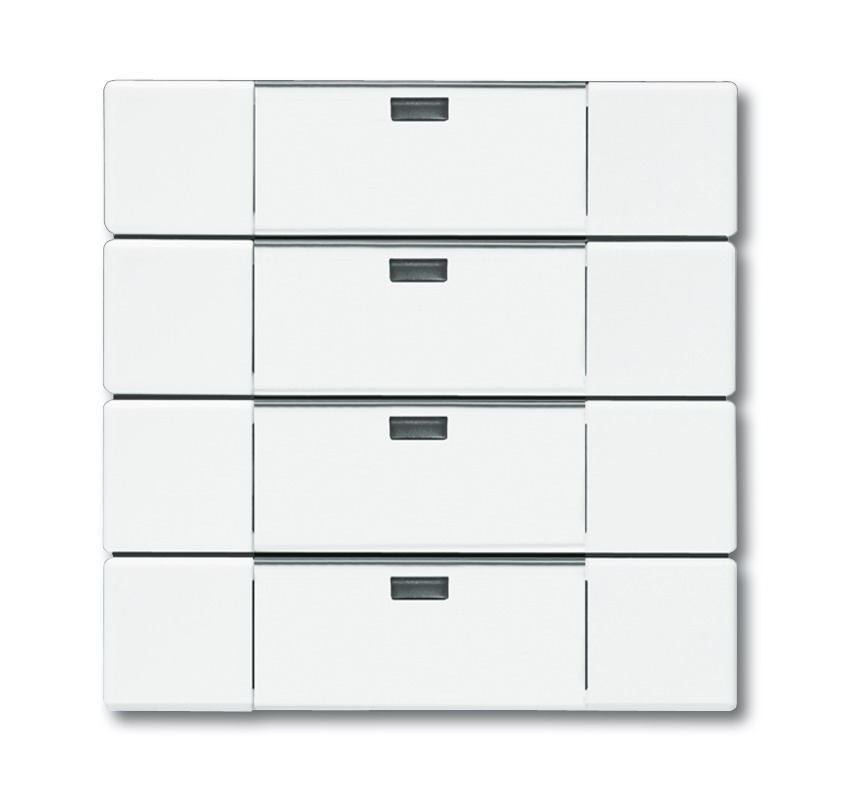

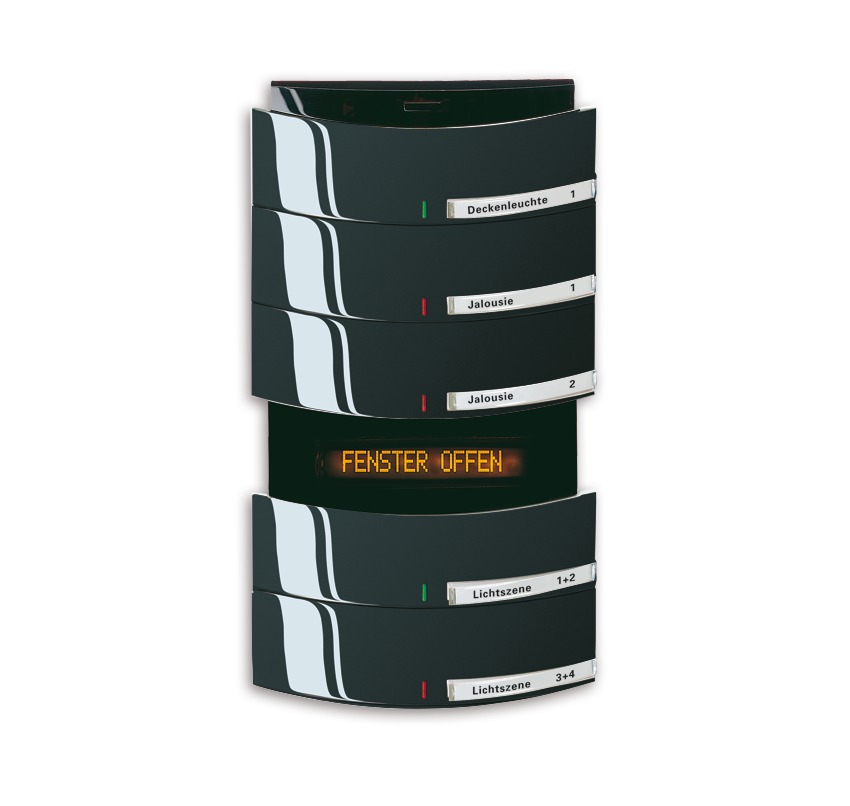

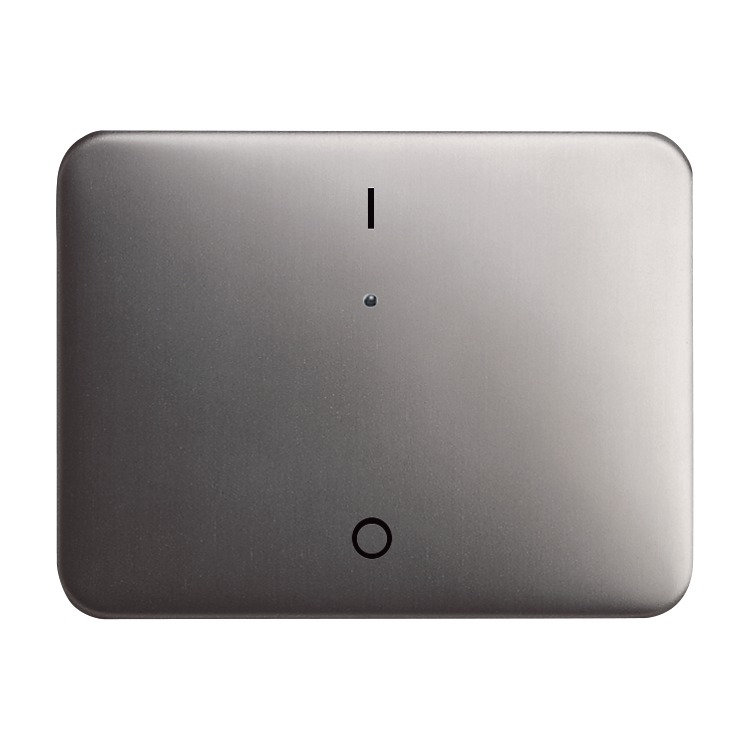

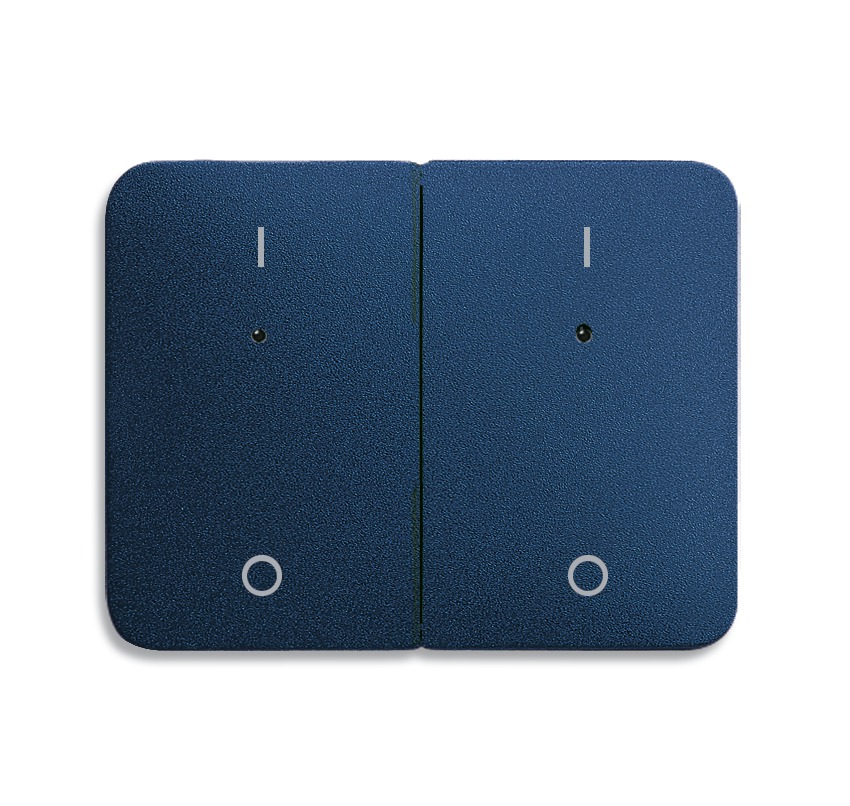

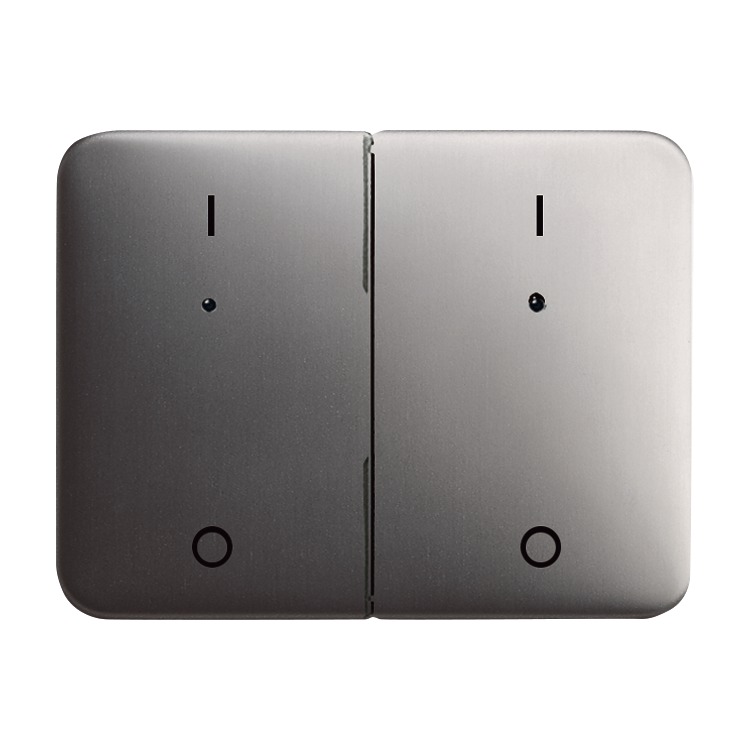

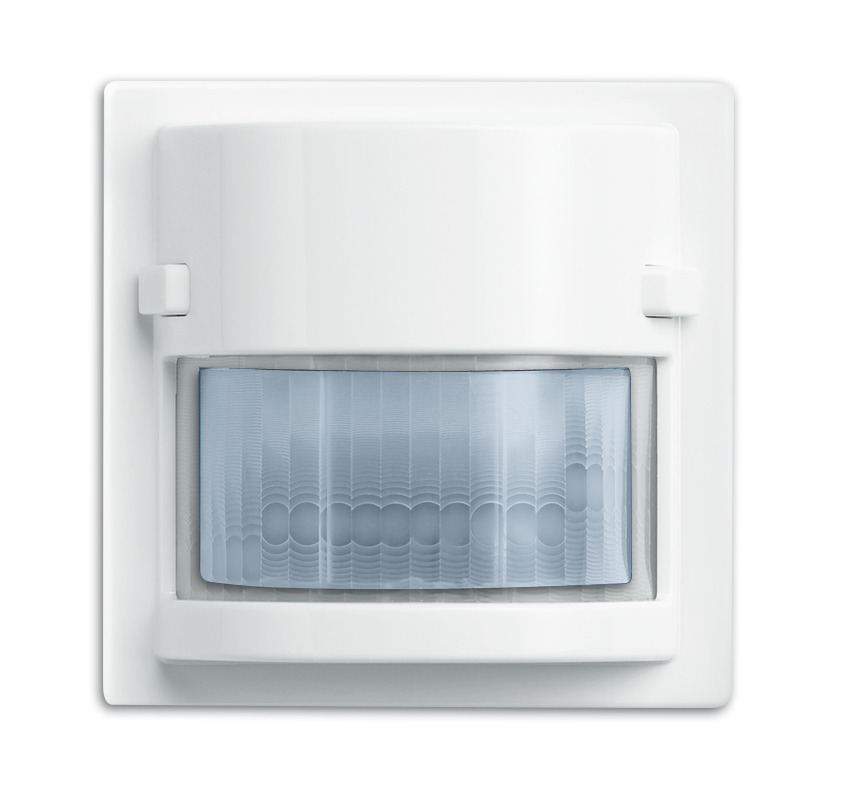

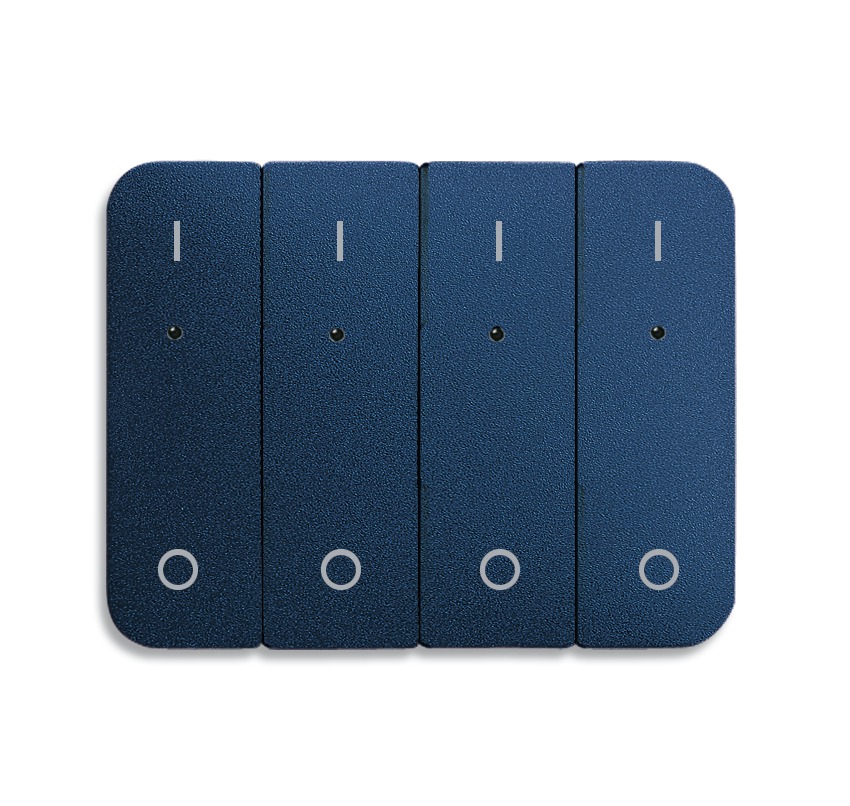

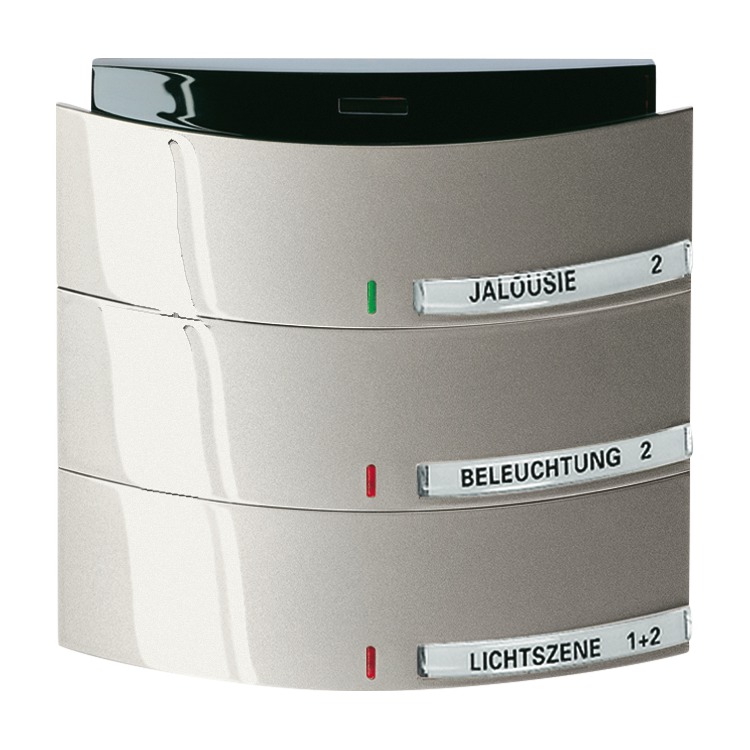

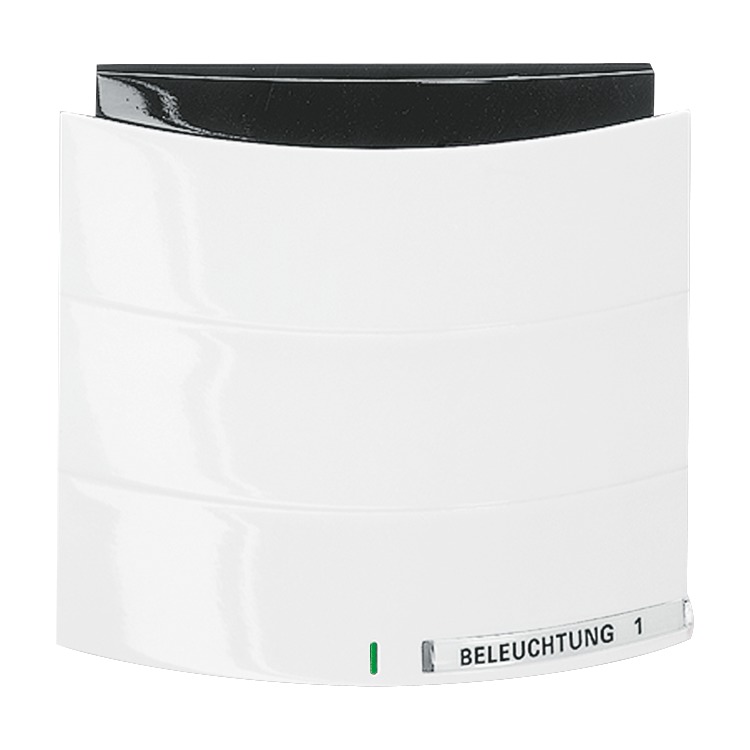

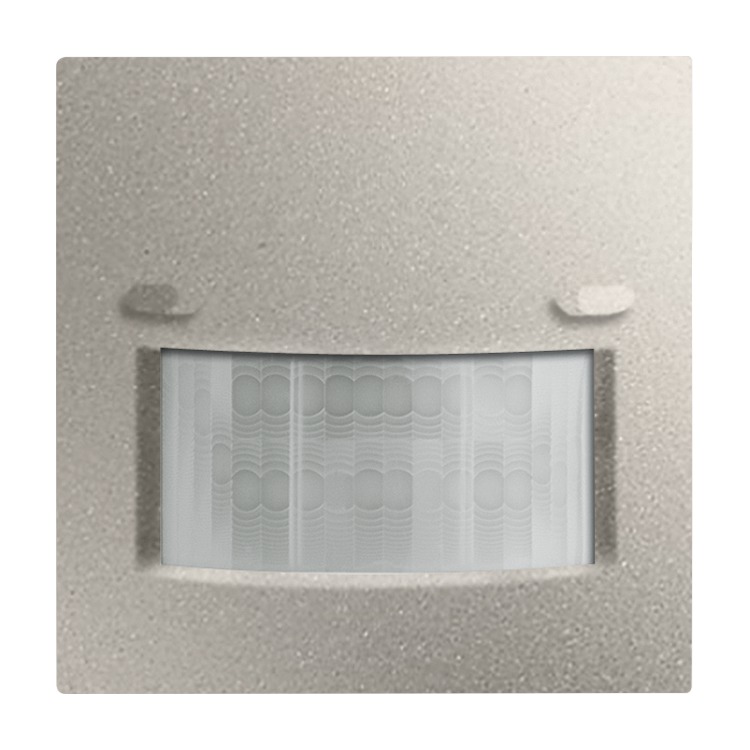

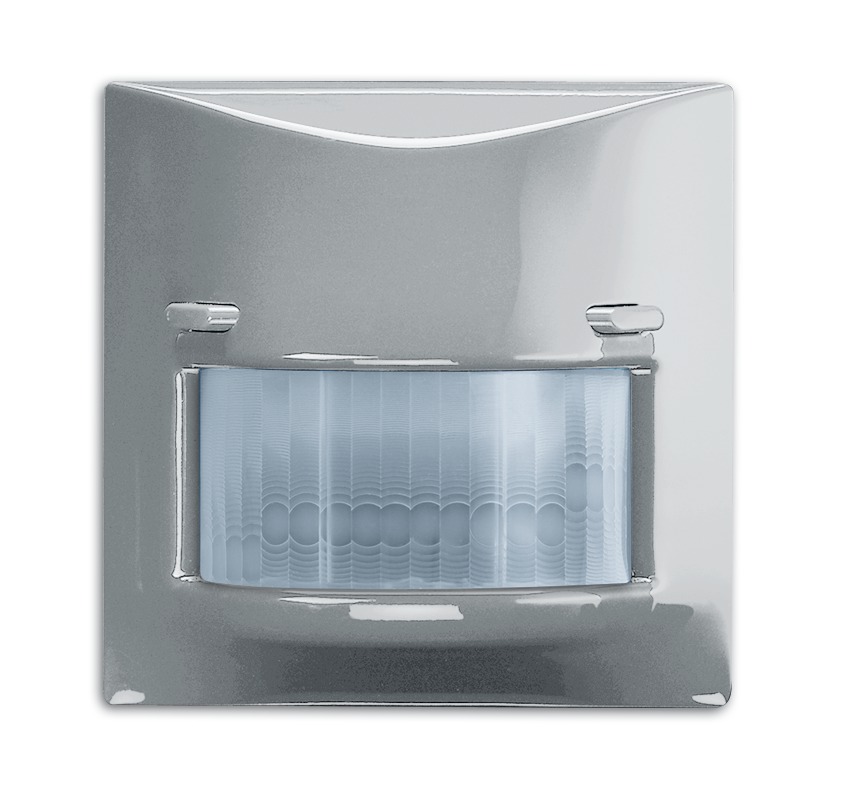

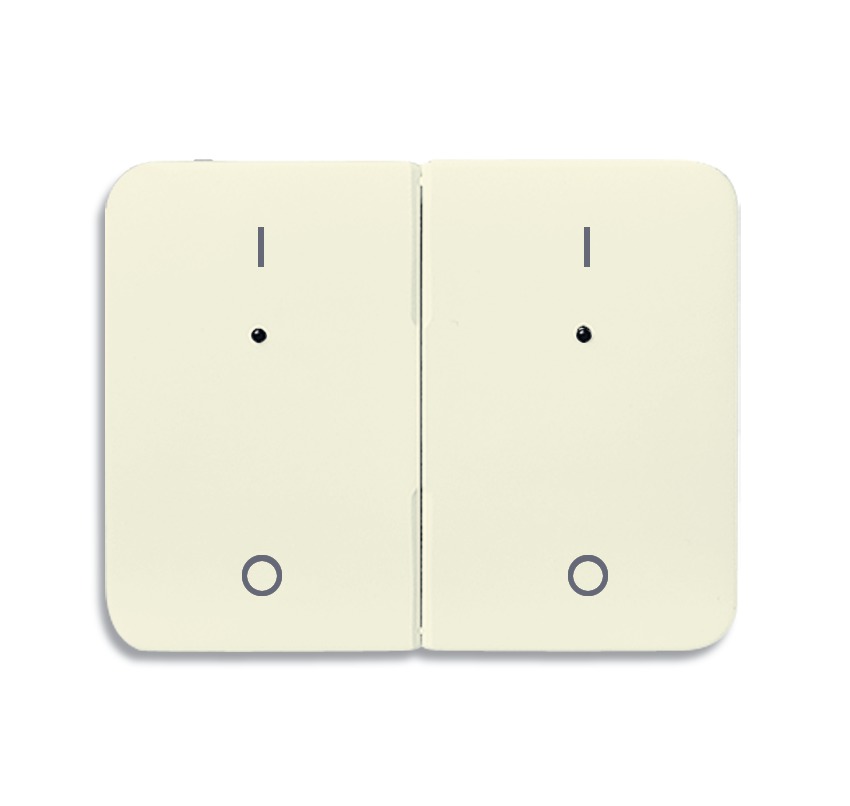

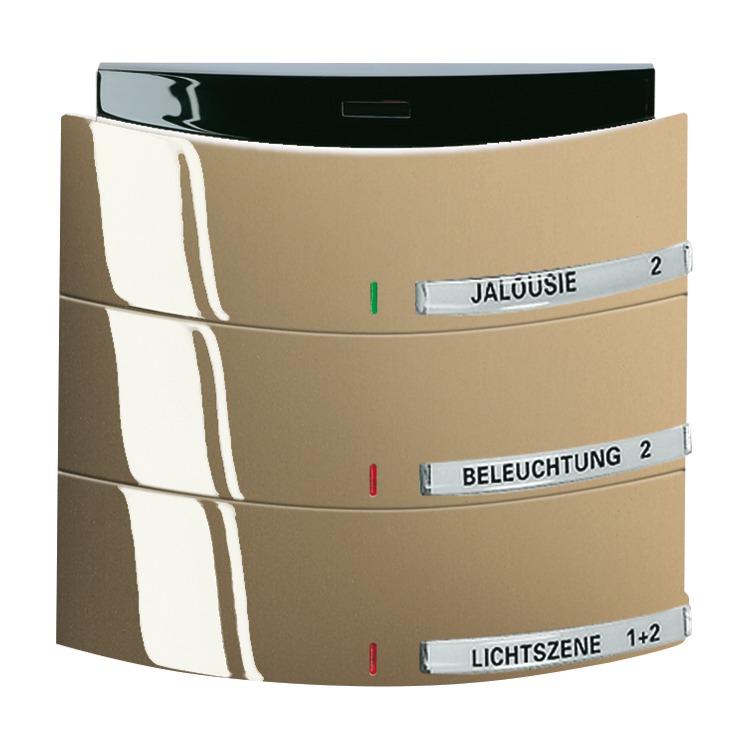

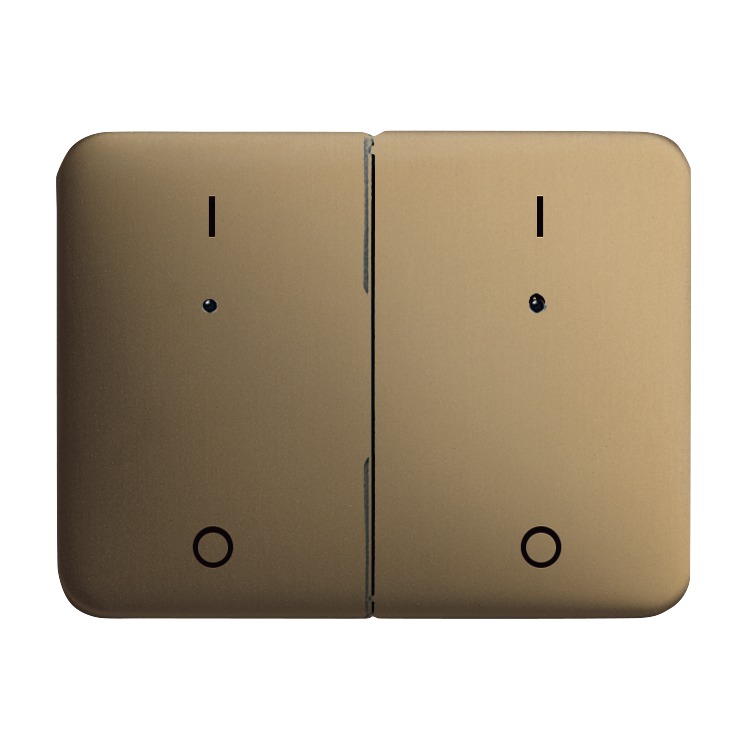

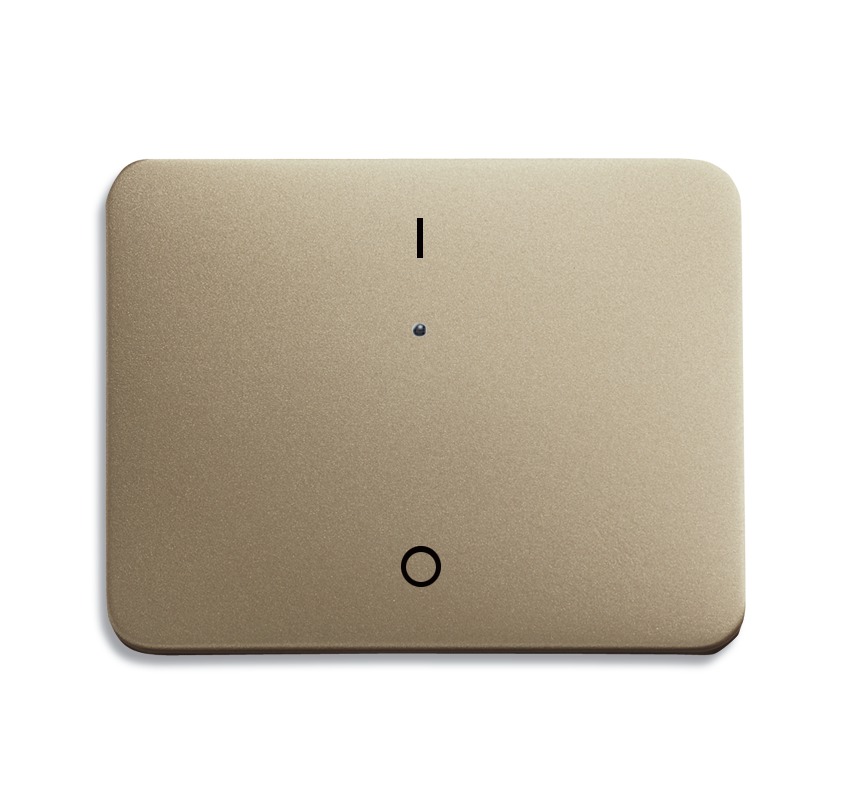

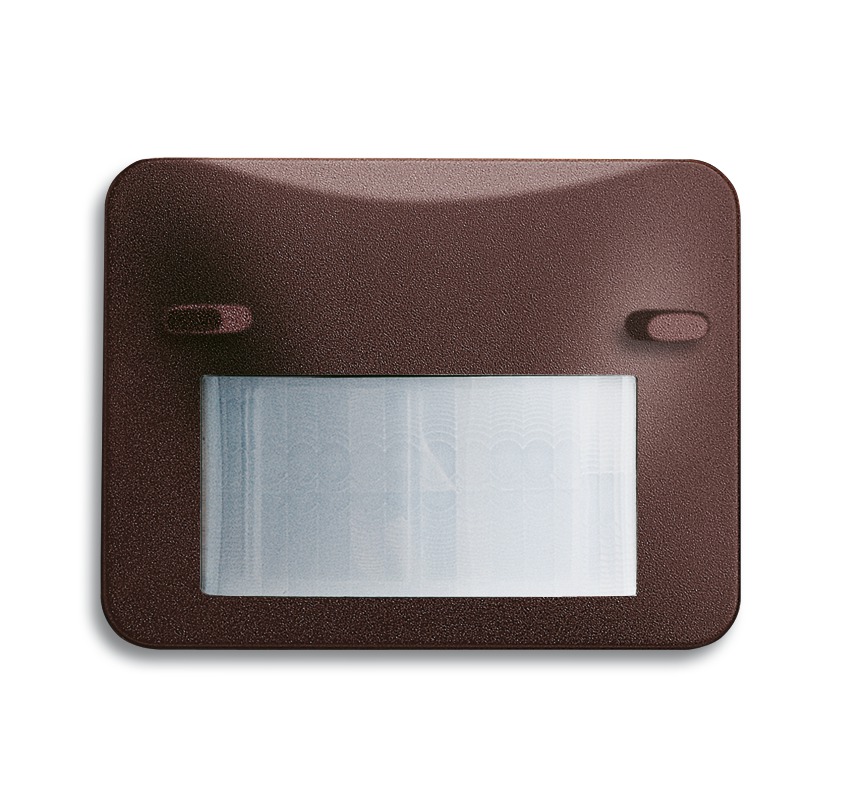

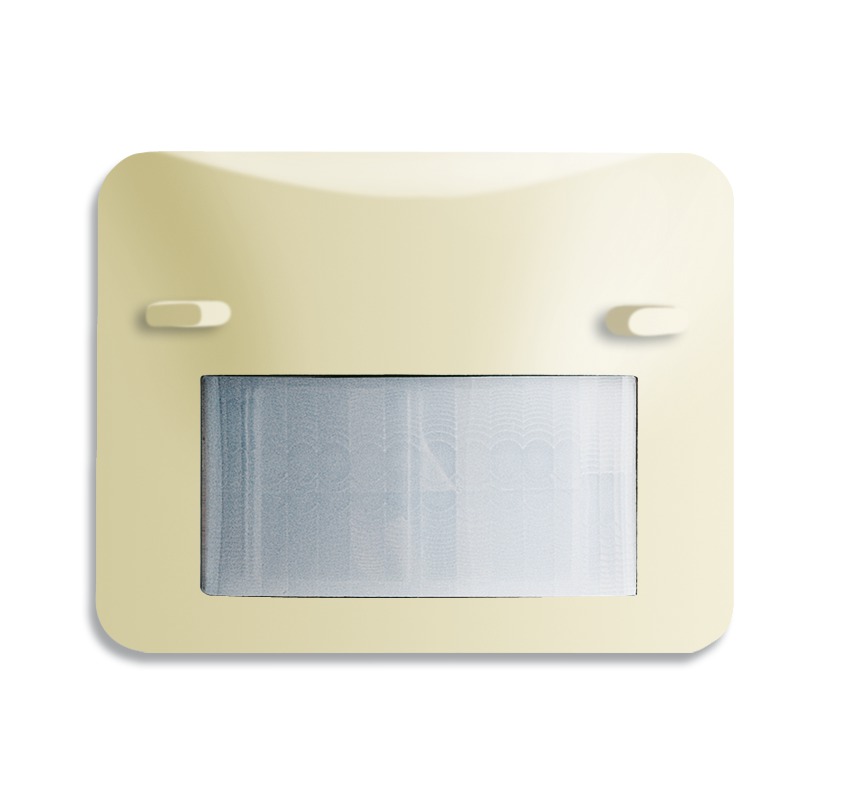

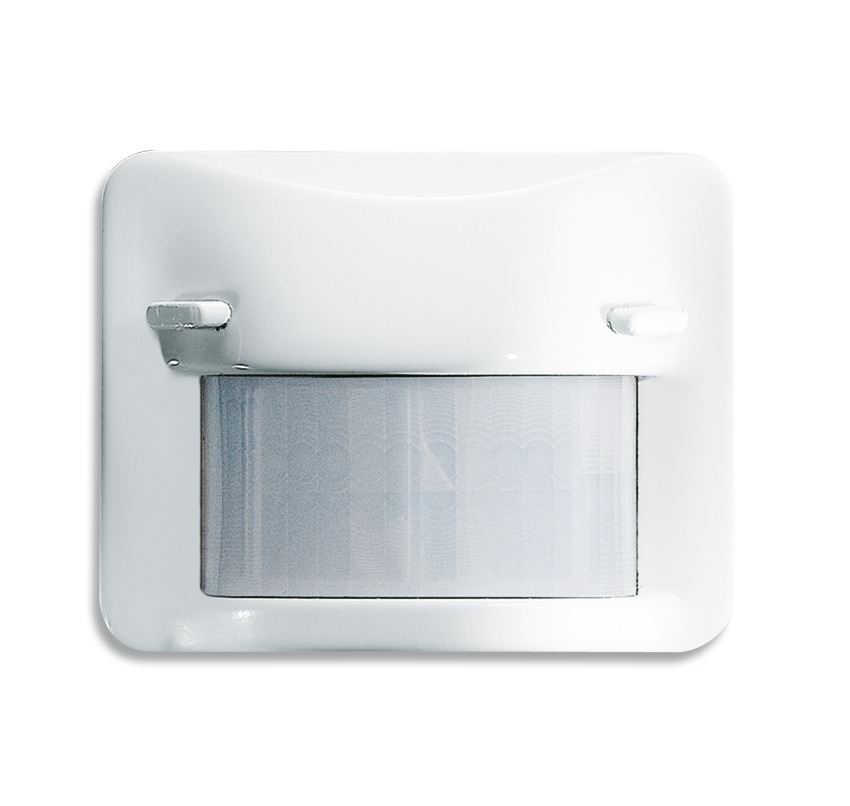

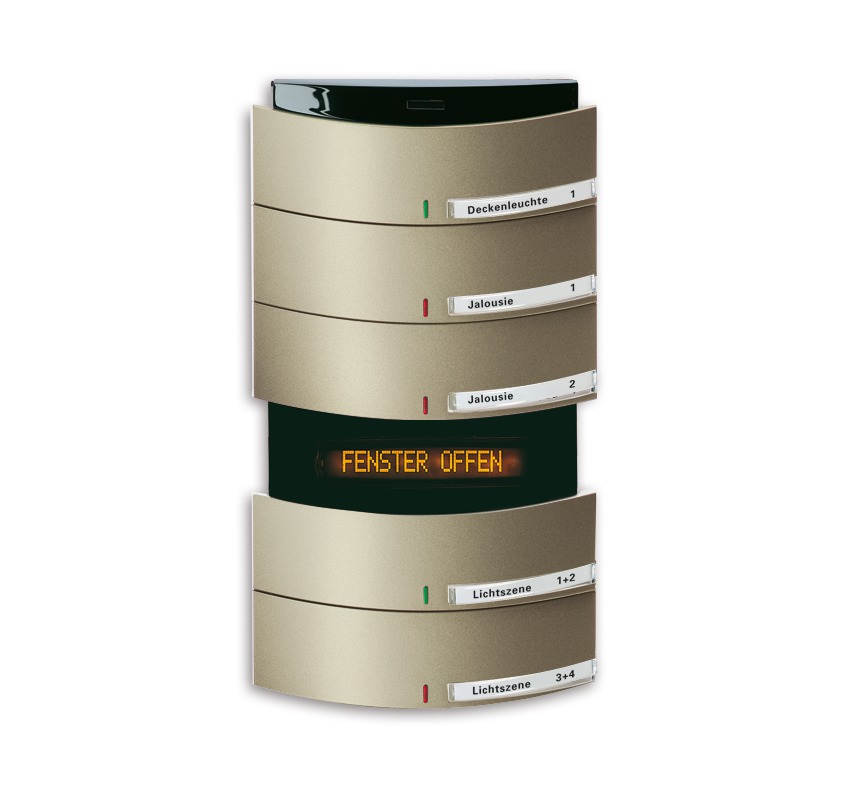

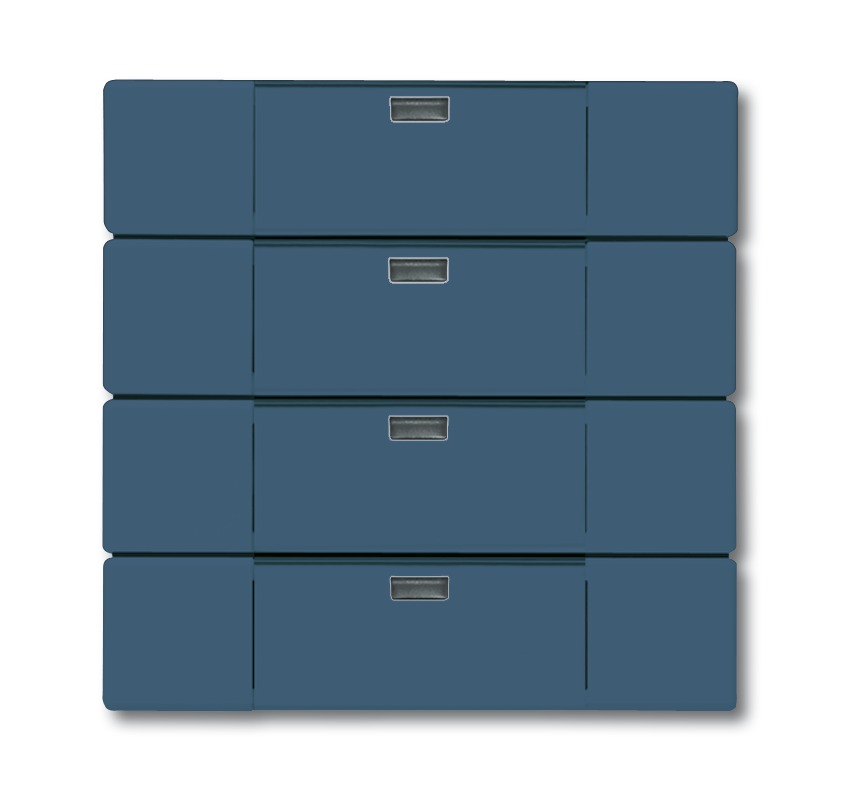

    Combineable with
