Discontinuation type

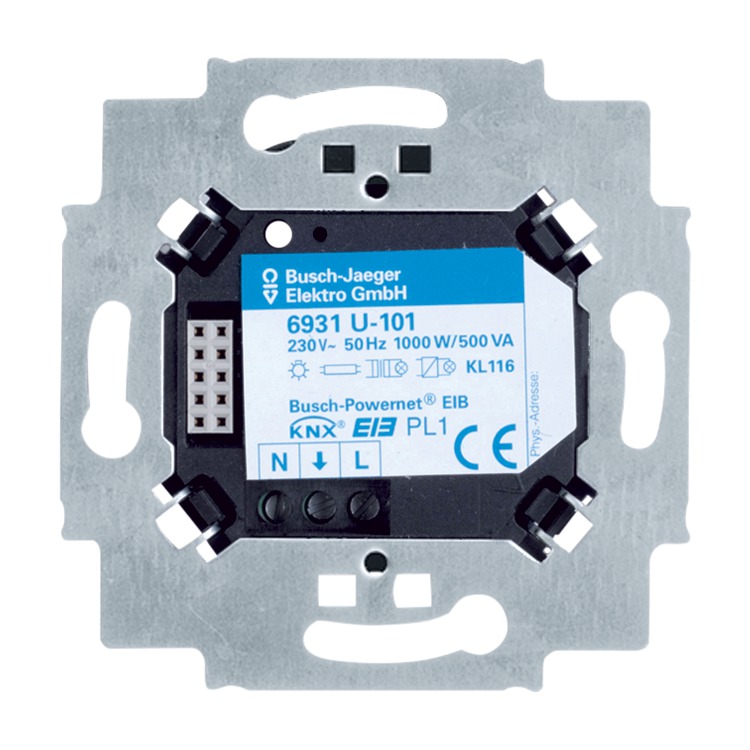

Flush-mounted switch actuator/sensor
1gang
1gang
Functions at a glance
- Network coupler with switch contact for switching one consumer up to 1,000 W/500 W/VA
- For all solo® control elements 612x-xxx-101, 6127 MF-xx-101, 6128/10-xxx-101, 6730-xxx, 6122-xxx, 6123-xxx, 6123 USB-xxx
- "Local operation" with clip-on control element.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Power dissipation: 0.6 W
- Outputs: 1 Normally open contact, potential-bound
- suitable for: AC1
- Rated output: 1000 W
- suitable for: AC3
- Rated output: 500 VA
- Protection class (device): IP 20
- Temperature range (device): -5 °C - 45 °C
- Storage temperature range: -25 °C - 55 °C
- Transport temperature range: -25 °C - 70 °C
- Dimensions: (L x W x D): 48 mm x 44 mm x 35 mm
- Mounting depth: 35 mm
- As required, you can find the programmable functions in the current application description, which you can download at www.BUSCH-JAEGER-CATALOGUE.com.
- To be mounted only in connection with commercially available flush-mounted installation boxes according to DIN 49073 > 40 mm depth gauge or Busch-Jaeger art. no. 3040, 3050 or 3060.
Order details
| Article No.: | 6931 U-101 |
| Order No.: | 2CKA006900A1667 |
| EAN: | 4011395037881 |
| Customs tariff number: | 85389091 |
| Price group: | 30 |
| Price: | 224,00 EUR plus VAT |
| Info sheet: | Download PDF |
Dimensions

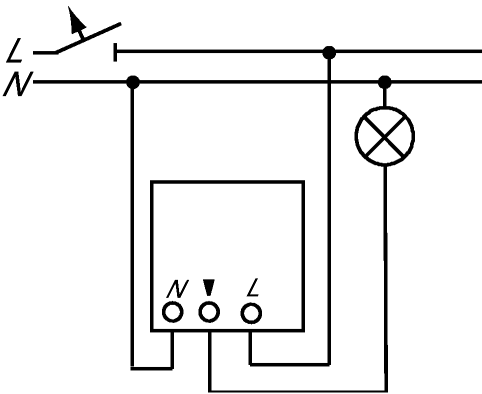

Wiring diagram
FM switch actuator, 6931U-10x
Busch-Watchdog 180 FM sensor comfort and adaptation to (+/-;24V) 6120U-102, 6109U, 6110U-101 and (+/-; 230V~) 6920U-10x, 6931U, 6932 U-10x and 6933U
