Functions at a glance

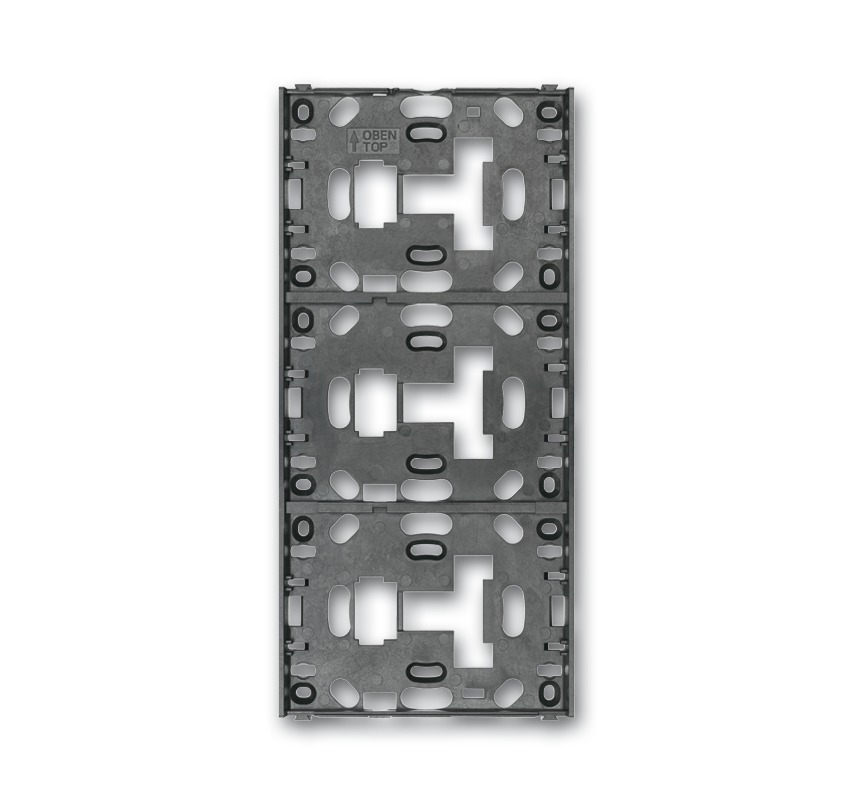

• For Busch-priOn^® support frame, 1gang, 2gang, and 3gang.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 48 mm x 44 mm x 33 mm
• Mounting depth: 33 mm

• For software and description please check the current Online-Catalogue.
• ETS programming only with ETS 3.0f or higher
• To be mounted only in connection with commercially available flush-mounted installation boxes according to DIN 49073  > 40 mm depth gauge or Busch-Jaeger art. no. 3040, 3050 or 3060.
