Functions at a glance

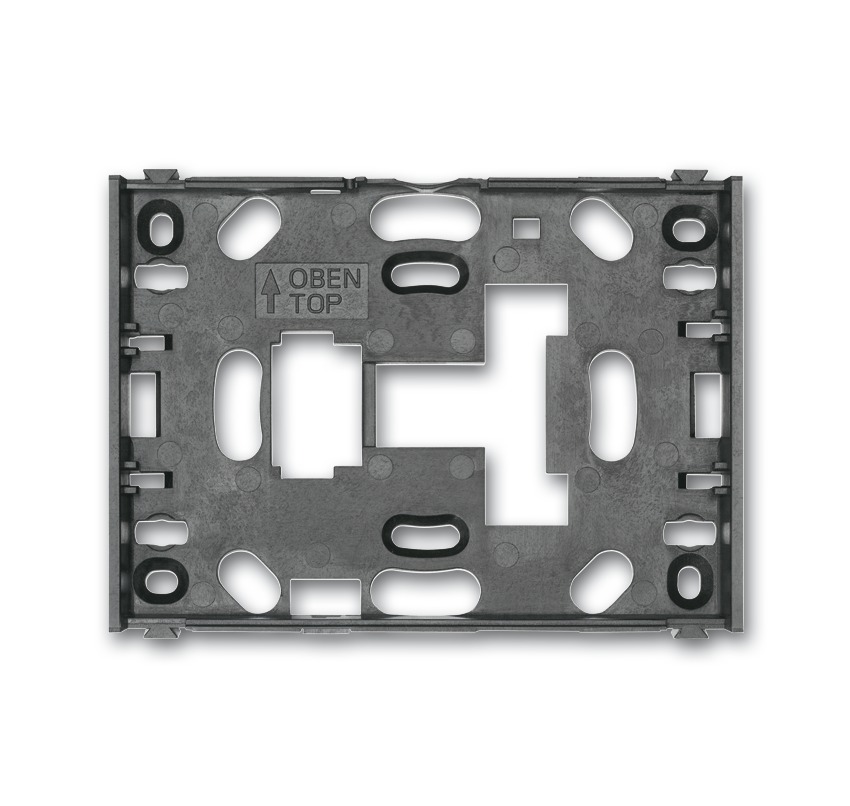

• For Busch-priOn^® 1gang support frame 6346/10-10x and control elements 6122/0x-xxx, 6124/0x-xxx, 6125/0x-xxx, 6126/0x-xxx, 6127/0x-xxx, 6128/0x-xxx, 6129/0x-xxx.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz
• Power dissipation: 0.6 W

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 48 mm x 44 mm x 33 mm
• Mounting depth: 33 mm

• For software and description please check the current Online-Catalogue.
• ETS programming only with ETS 3.0f or higher
• To be mounted only in connection with commercially available flush-mounted installation boxes according to DIN 49073  > 40 mm depth gauge or Busch-Jaeger art. no. 3040, 3050 or 3060.
