Functions at a glance

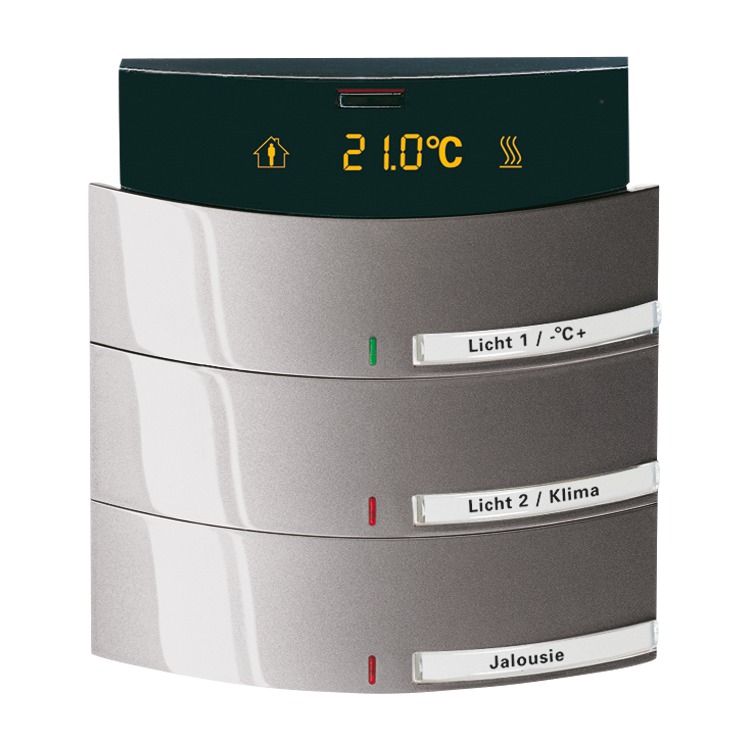

• Busch-triton^®
• With labelling field.
• For ABB i-bus^® KNX bus coupler 6120 U-10x.
• Universal control cover with room thermostat function for controlling TSA/K 230.1, TSA/K 24.1 in connection with 6164 U, commercially available valve drives or analogue valve drives (continuous controllers).
• For heating and cooling (PI, PWM or 2-point).
• Push button function (switching/dimming/blind/value transmission/fan function)

• Control element: Switch contacts left/right, also for selecting setpoint and mode of operation.
• Display elements: LCD showing operation mode and temperature.

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

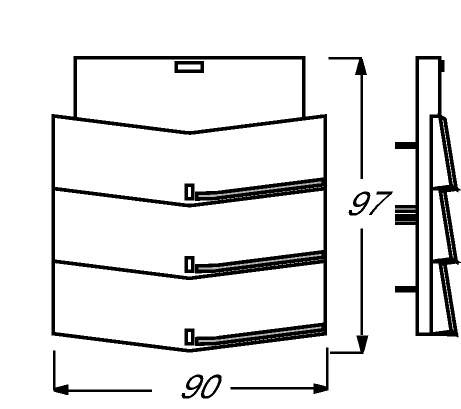

• Dimensions: (L x W x D): 97 mm x 90 mm

• Illumination according to Arb.Stätt.V (German Workplace Ordinance).
• For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
• For software and description please check the current Online-Catalogue.
