My parts list/tender specifications

Actions:
ARCHIVE
Discontinuation type

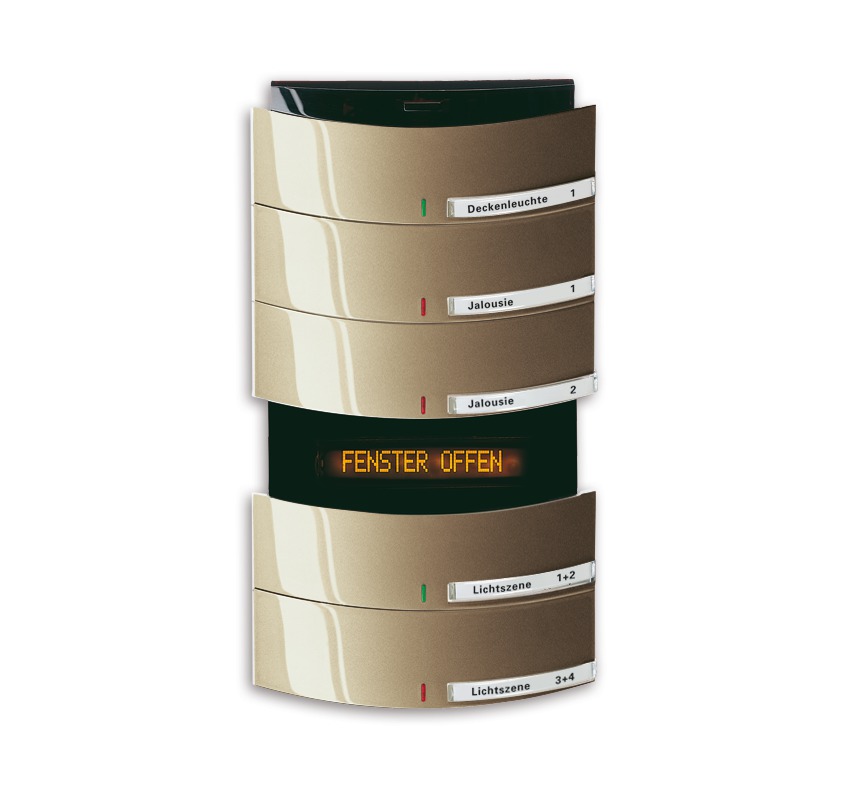

Switch sensor with display
5gang switch sensor

platinum
studio white matt
studio white
ivory
obsidian
palladium
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Busch-triton®
  • With labelling field.
  • For ABB i-bus® KNX devices 6120 U-10x, 6110 U-10x, 6114 U .
  • Universal control cover with IR reception and display
  • Control element: rocker switch left/right
  • Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 159 mm x 90 mm
  • Illumination according to Arb.Stätt.V (German Workplace Ordinance).
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • For software and description please check the current Online-Catalogue.
  • Surface painted.

Order details

Article No.:6325-21
Order No.:2CKA006300A1048
EAN:4011395915509
Customs tariff number:85389099
Price group:42
Price:306,00 EUR plus VAT
Info sheet:Download PDF

Downloads

Technical manual
Software
Dimensions
Busch-triton® flush-mounted touch sensor with IR reception 6320/50-; additionally with room thermostat 6320/58-..
Wiring diagram
