My parts list/tender specifications

Actions:
ARCHIVE
Discontinuation type

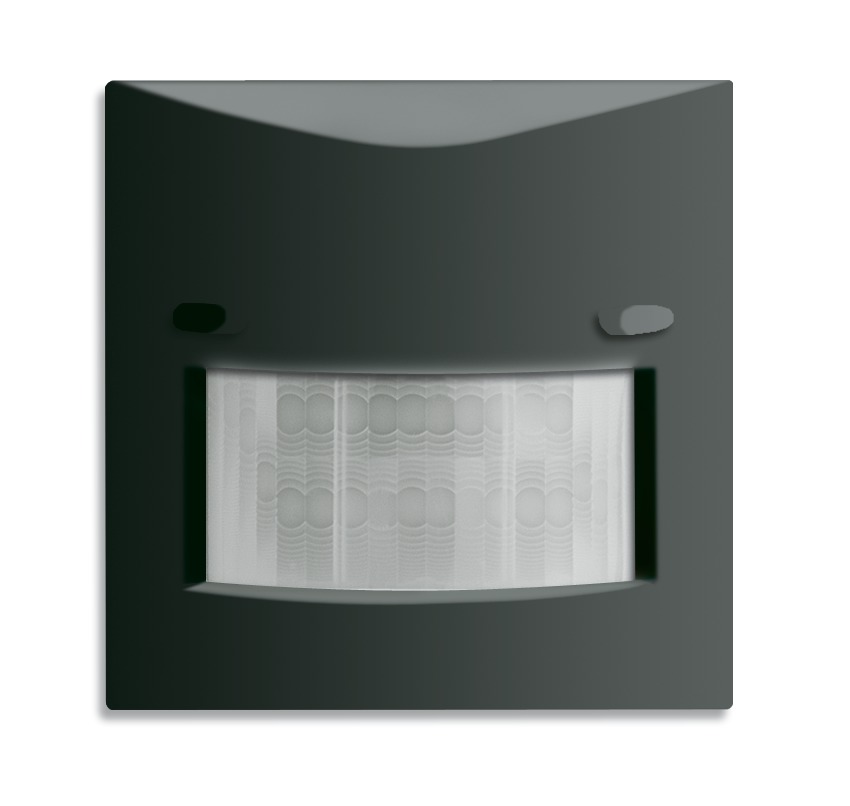

Busch-Watchdog 180 flush-mounted comfort sensor II
selective detection

No longer available from March 2011 on.

cobalt blue
alpine white
champagne metallic
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For ABB i-bus® KNX devices 6120 U-102, 6109 U, 6110 U-101, and 6114 U und ABB Powernet KNX devices 6920 U-10x, 6931 U-10x, 6932 U-10x, and 6933 U.
  • Control element: Sliding switch for manual operation ON/AUTOMATIC/OFF (lockable)
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Detection range: frontal: 12 m, lateral: 8 m
  • Detection range 2:
  • Brightness limit value: 5 Lux
  • Detection angle: 180 °
  • Dimensions: (L x W x D): 56 mm x 71 mm x 28 mm
  • Position for installation: vertical
  • Mounting height: 1.1 m
  • For software and description please check the current Online-Catalogue.
  • For compatible cover frames, see the following ranges: carat®, pure stainless steel, solo®, Busch-axcent® or future® linear.
  • No longer available from March 2011 on.

Order details

Article No.:6132-71-102
Order No.:2CKA006132A0119
EAN:4011395988084
Customs tariff number:85389099
Price group:42
Info sheet:Download PDF

Downloads

Instruction manual
Technical manual
Software
Tips / Tricks
Dimensions
1 = Brightness 2 = Light-on time 3 = Locking slide switch 4 = 12-pole plug
Wiring diagram
