My parts list/tender specifications

Actions:
ARCHIVE
Discontinuation type

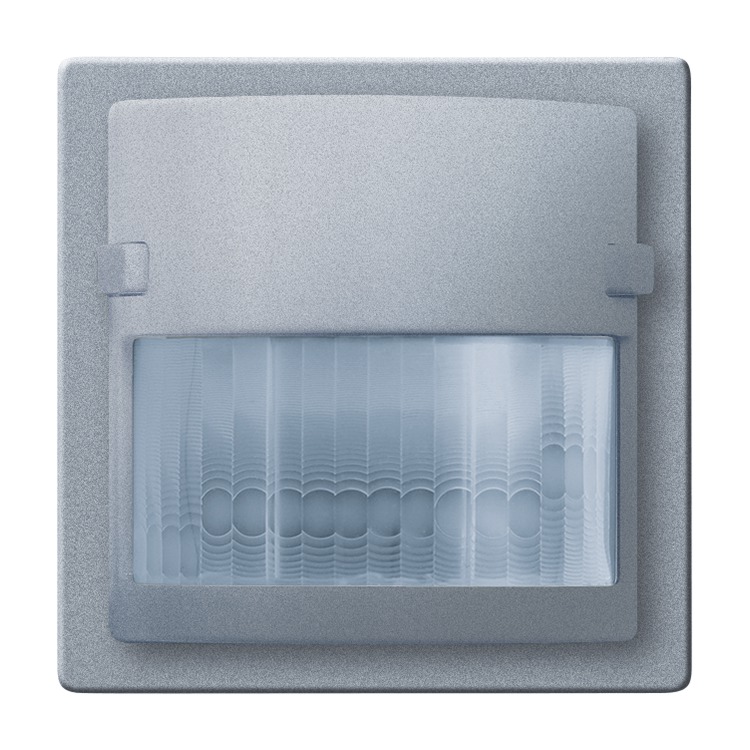

Busch-Watchdog 180 flush-mounted comfort sensor II
with multi-lens

anthracite
ivory white
studio white
Take over in my parts list / tender specifications

Functions at a glance

  • Control element: Sliding switch for manual operation ON/AUTOMATIC/OFF (lockable)
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Detection range: frontal: 15 m, lateral: 5 m
  • Detection range 2: frontal: 10 m, lateral: 2.5 m
  • Brightness limit value: 5 Lux
  • Detection angle: 180 °
  • Dimensions: (L x W x D): 63 mm x 63 mm x 28 mm
  • Mounting height: 1.1 m - 2.5 m
  • For compatible cover frames, see the following ranges: carat®, pure stainless steel, solo®, Busch-axcent® or future® linear.
  • For software and description please check the current Online-Catalogue.
  • Surface painted.

Order details

Article No.:6122-83
Order No.:2CKA006132A0163
EAN:4011395075050
Customs tariff number:85389099
Price group:42
Price:129,00 EUR plus VAT
Info sheet:Download PDF

Downloads

Instruction manual
Technical manual
Software
Dimensions
Wiring diagram
