Functions at a glance

  • With labelling field.
  • For ABB i-bus® KNX bus coupler 6120 U-102.

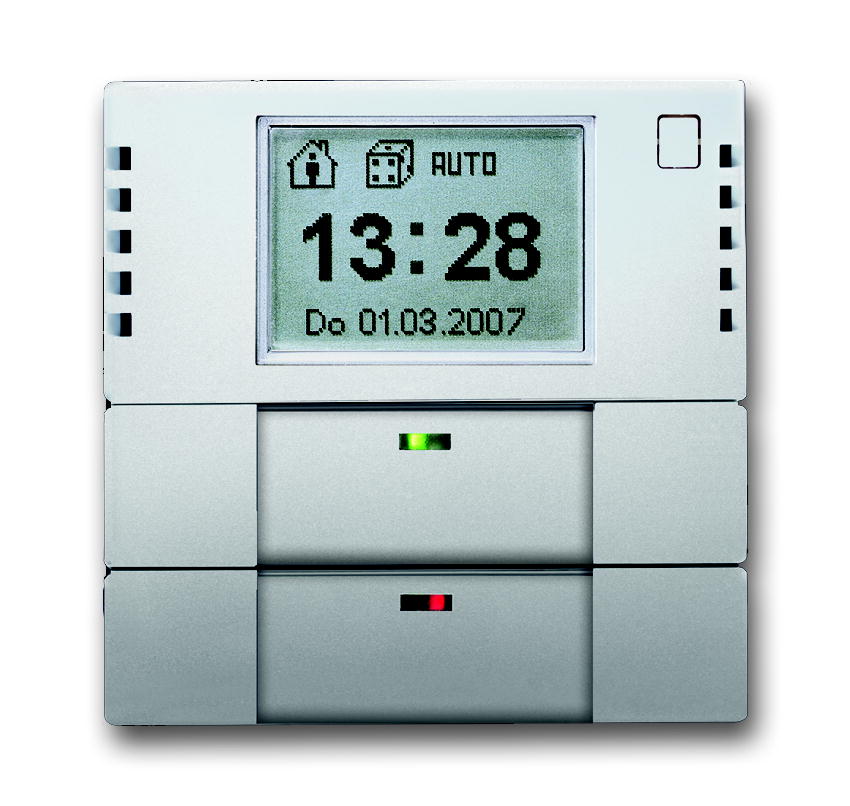

  • Universal control element with two-channel week timer.
  • Channels can be set using the device application and/or directly on the device by manual operation.
  • Sensor function (switching/dimming/blind/transmit value/light scene extension/ventilation function).
  • Surface painted.
  • Control element: Touch contacts left/right, also suitable for channel adjustment and operating mode selection
  • Display elements: LCD display of time/date and operating states per time channel
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 63 mm x 63 mm
  • For compatible lettering software, visit
  • For compatible cover frames, see the following ranges: carat®, pure stainless steel, solo®, Busch-axcent® or future® linear.
  • For software and description please check the current Online-Catalogue.
  • Surface painted.

Order details

Article No.:6128/10-866-101
Order No.:2CKA006136A0179
Customs tariff number:85389099
Price group:42
Price:247,00 EUR plus VAT
Info sheet:Download PDF
Wiring diagram
