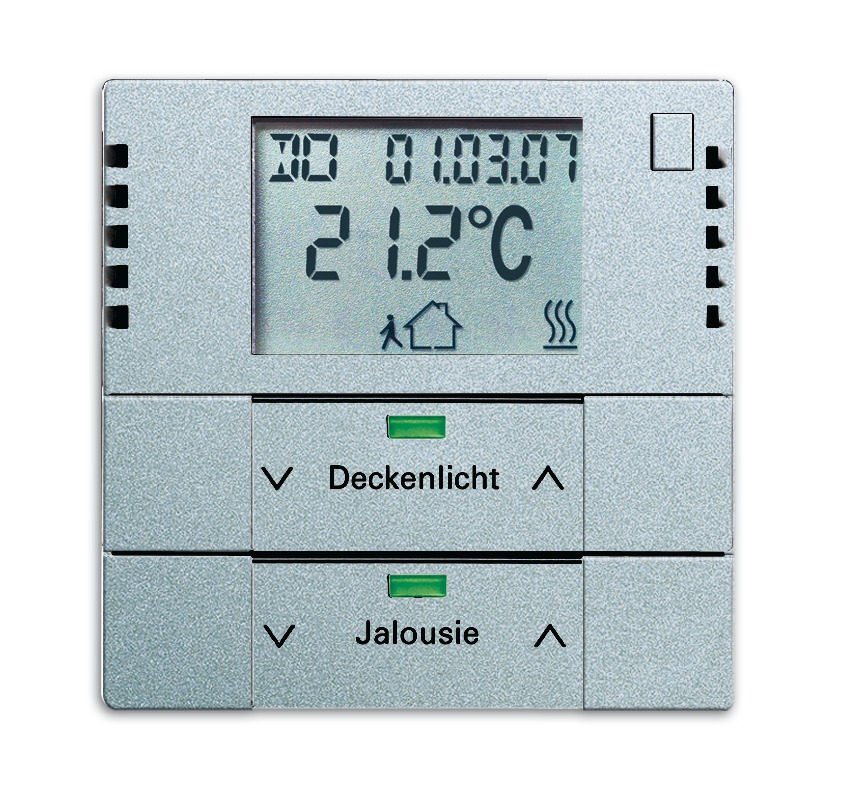

Functions at a glance

• With labelling field.
• For ABB i-bus^® KNX bus coupler 6120 U-102.
• Universal control cover with room thermostat function for controlling TSA/K 230.1, TSA/K 24.1 in connection with 6164 U, commercially available valve drives or analogue valve drives (continuous controllers).
• For heating and cooling (PI, PWM or 2-point).
• Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function).

• Control element: Switch contacts left/right, also for selecting setpoint and mode of operation.
• Display elements: LCD displaying operation mode, temperature, time and date

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 63 mm x 63 mm

• For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
• For compatible cover frames, see the following ranges: carat^®, pure stainless steel, solo^®, Busch-axcent^® or future^® linear.
• For software and description please check the current Online-Catalogue.
