Functions at a glance

  • For ABB i-bus® KNX bus coupler 6120 U-10x.
  • For controlling commercially available valve drives (e.g. TSA/K 230.1, TSA/K 24.1) or analogue valve drives (continuous controllers) in connection with e.g. 6164 U.
  • For heating and cooling (PI, PWM or 2-point).
  • Control element: Control wheel, presence push button
  • Display elements: LED displaying operation modes
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 56 mm x 71 mm x 17 mm
  • For software and description please check the current Online-Catalogue.
  • Cover frame,also with letterable inspection window.
  • Setpoint of the rotary button parameterizable.
  • No longer available from March 2011 on.

Order details

Article No.:6134-255-102
Order No.:2CKA006134A0145
Customs tariff number:90321020
Price group:42
Price:194,00 EUR plus VAT
Info sheet:Download PDF


Instruction manual
Technical manual
Wiring diagram

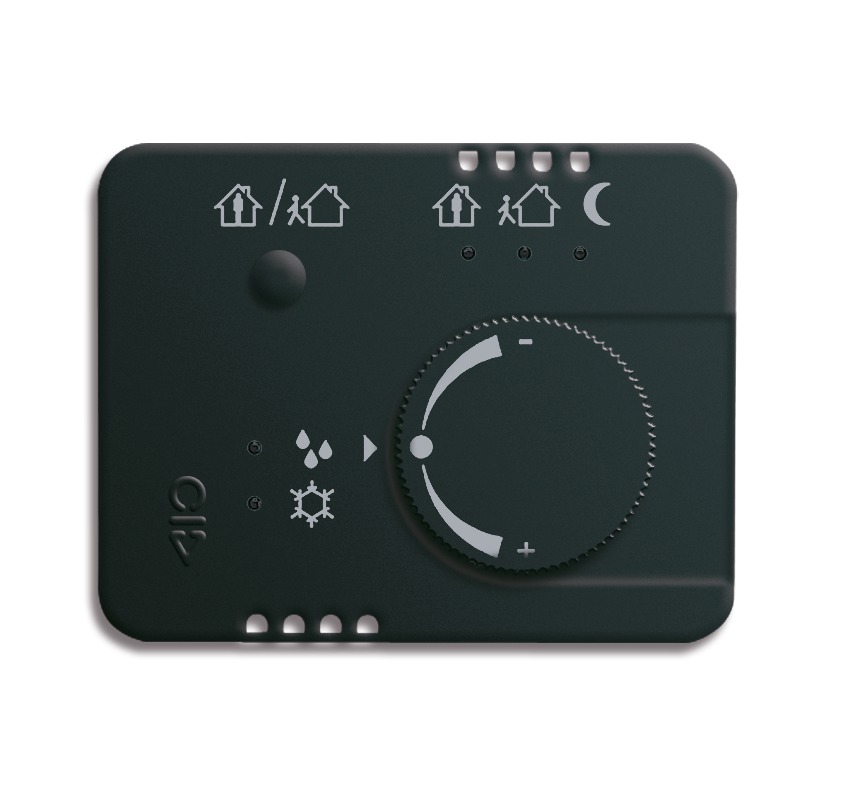

Room thermostat heating/air conditioning 6134-xx-10x
