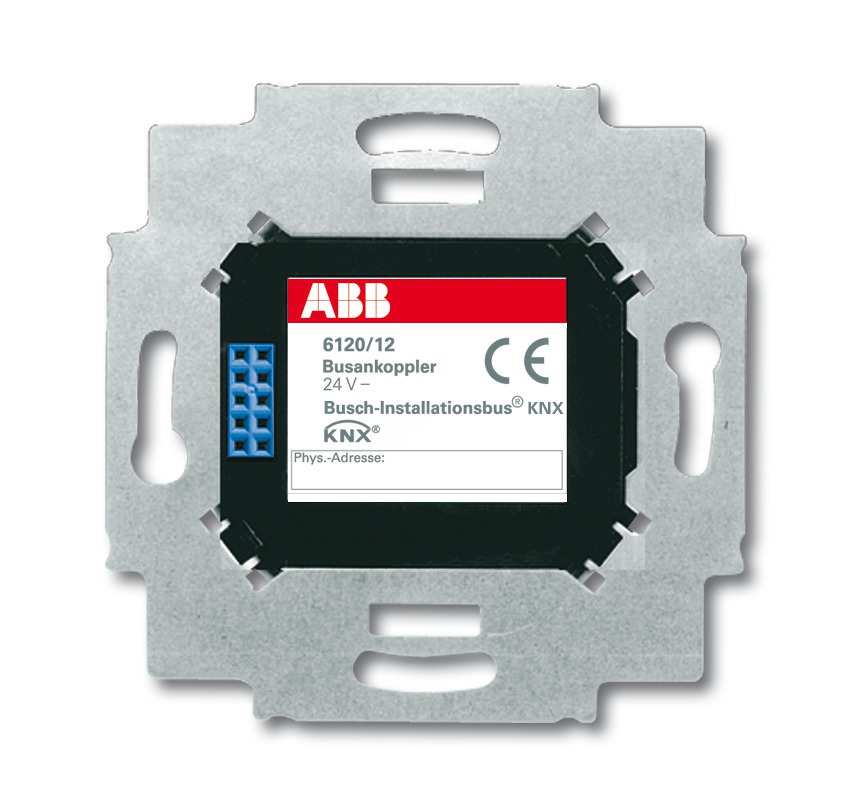

Flush-mounted bus coupler
Busch-priOn®

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For Busch-priOn® 1gang support frame 6346/10-10x and control elements 6122/0x-xxx, 6125/0x-xxx, 6126/0x-xxx, 6127/0x-xxx, 6129/0x-xxx.
  • The bus can be connected via enclosed terminal block.
  • Rated voltage: 24 V
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
    • For software and description please check the current Online-Catalogue.
    • Device should only be commissioned via the commissioning interface/adapter 6149/20 or USB/S 1.1.

      Order details

      Article No.:6120/12
      Order No.:2CKA006120A0068
      EAN:4011395102237
      Customs tariff number:85176200
      Price group:42
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Software
      Dimensions
      Flush-mounted bus coupler Busch-priOn® 6120/1x
      Wiring diagram
