Functions at a glance

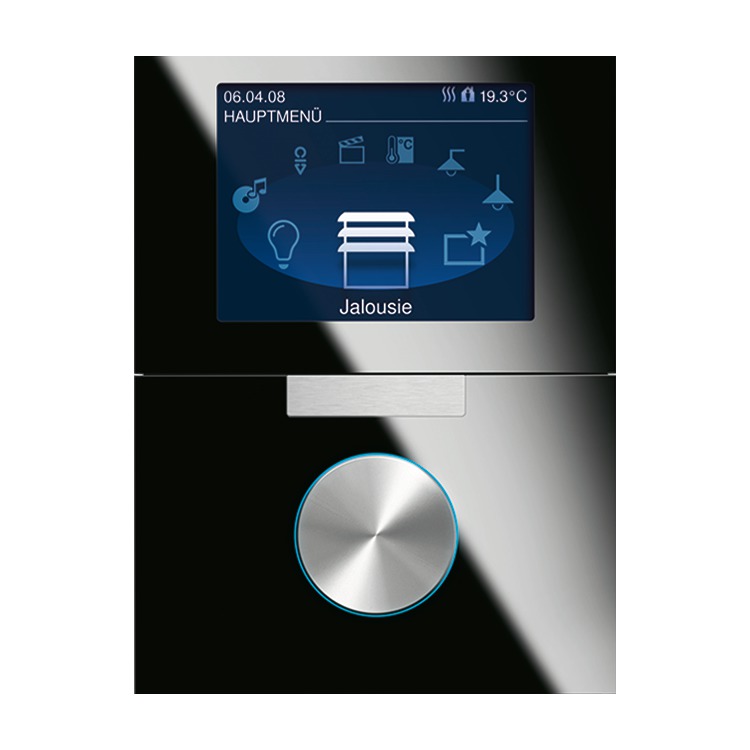

• Free programmable KNX 8.89 cm (3.5") TFT colour display with rotary control element
• For installation in the 2gang and 3gang support frame (6346/11-101 and 6346/12-101).
• For the display and operation of up to 120 KNX functions (switching, dimming, blinds, etc.)
• With integrated week timer, alarm, timer, with light scene function, screensaver and control of multimedia devices (in connection with an additional device) via the KNX system.
• Functions can be freely labelled using customisable symbols and texts.
• Primary function for calling up the main functions
• With status bar for display of up to 10 signals, Thermostat function and date/time
• Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
• Master/slave configuration.
• With base-load operation.
• Class of temperature controller 1
• Contribution to space heating energy efficiency 1,0%.

• Control element: Freely programmable control panels
• Display elements: TFT Display

• Rated voltage:

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

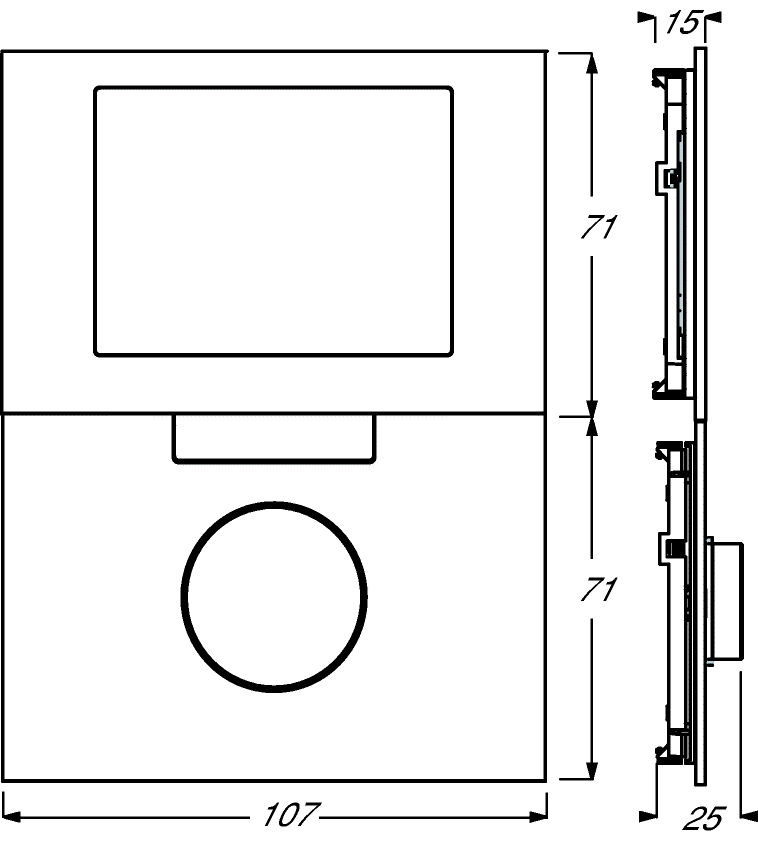

• Dimensions: (L x W x D): 142 mm x 106.6 mm x 11 mm

• For software and description please check the current Online-Catalogue.
• ETS programming only with ETS 3.0f or higher
• Additional Power-Tool software necessary.
