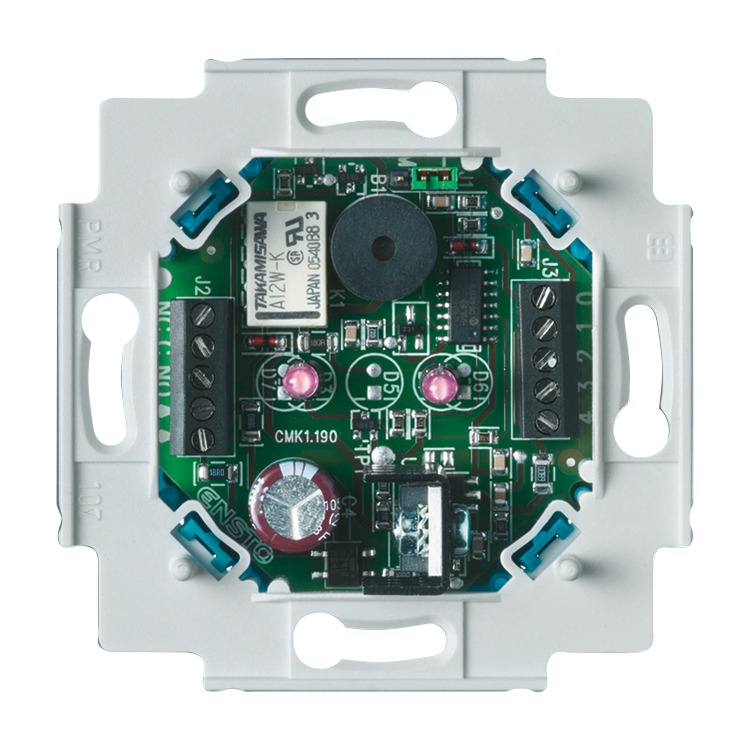

Functions at a glance

• Operates as normal alarm panel.

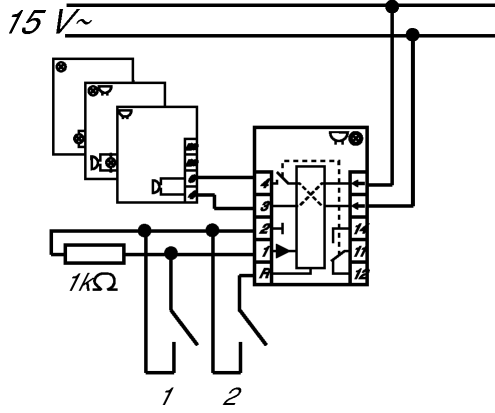

• For monitoring a break or short circuit in a current loop.
• With storage of the alarm status (can be switched off).
• With reset input.
• Permanent acoustic alarm.
• Type: 70 dB, distance apart 1 m.
• Pulsating optical alarm.
• Maintenance free due to using LEDs.

• Display elements: LED flashing lamp

• Rated voltage: 15 V~
• Rated frequency: 50 Hz
• Power dissipation: 1.6 W

• Outputs: 1 Normally open contact, potential-bound

• Control/Signal outputs: 1 1gang 2way, insulated, 42 V~/60 V-, 30 W/VA

• Protection class (device): SELV
• Temperature range (device): 5 °C - 40 °C
• Storage temperature range: -40 °C - 70 °C

• No claw. Screw-fixing via keyholes.
