Discontinuation type

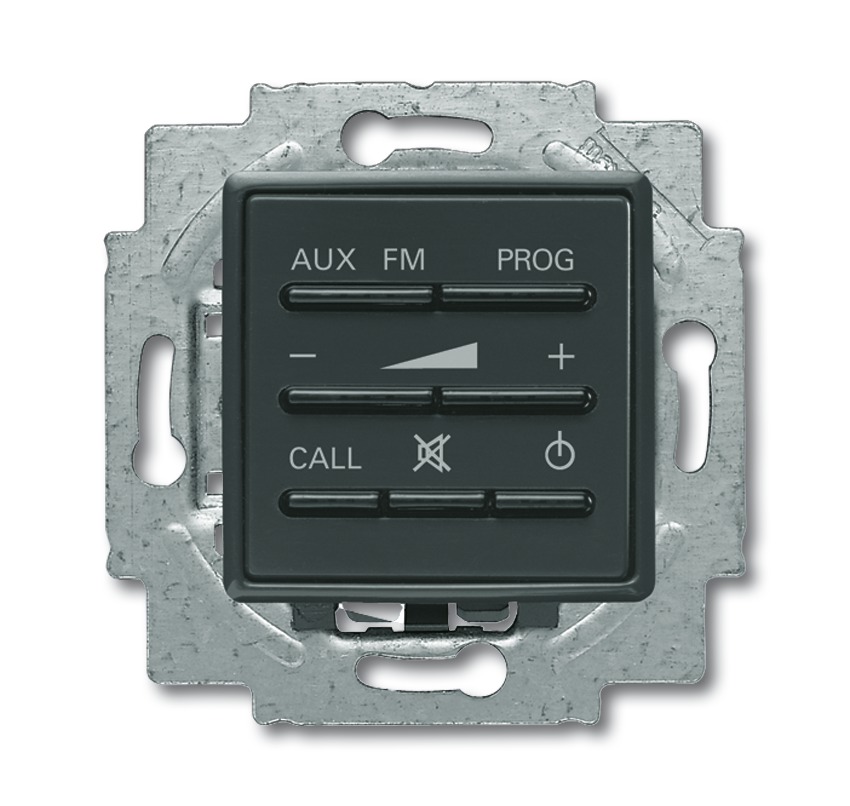

Intercom amplifier insert
Functions at a glance
- Busch-AudioWorld® system amplifier.
- For individual volume control.
- With switchover between radio and external music source.
- For switching of the central radio channel.
- With voice button and integrated microphone for spoken messages to other Intercom amplifier inserts (8212 U).
- Optional deactivation of announcements (do not disturb).
- For mono/stereo operation.
- With automatic loudness function.
- Optional automatic switch-off after 30 min. (Sleep function).
- Rated voltage: 15 V-
- Protection class (device): IP 20, SELV
- Mounting depth: 33 mm
- No claw. Screw-fixing via keyholes.
- RAL colour number: 7021
Order details
| Article No.: | 8212 U |
| Order No.: | 2CKA008200A0011 |
| EAN: | 4011395054123 |
| Customs tariff number: | 85184080 |
| Price group: | 19 |
| Info sheet: | Download PDF |
Downloads
Instruction manual
- INT
- Extended instructions - DE
- Extended instruction manual - EN
- Extended instructions - NL
- Extended instructions - DE
- Extended instruction manual - EN
- Extended instruction manual - ES
- Extended instruction manual - FI
- Extended instruction manual - FR
- Extended instruction manual - IT
- Extended instructions - NL
- Extended instruction manual - NO
- Extended instruction manual - PL
- Extended instruction manual - RU
- Extended instruction manual - SV
- Extended instruction manual - CN
Tips / Tricks
Dimensions
Wiring diagram
Amplifier unit 8211 U and intercom amplifier unit 8212 U with loudspeaker unit 8221 U or built-in loudspeaker 8222EB.
