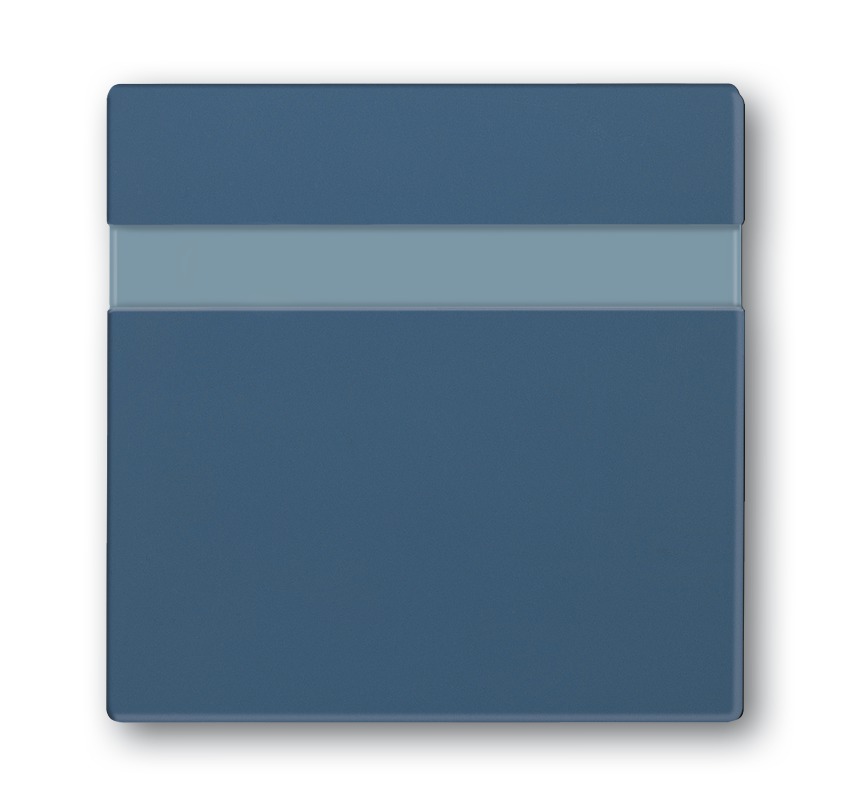

Functions at a glance

• For 2-wire insert 6815 U.
• For relay insert 6816 U.
• Adjustable operating mode: semiautomatic mode, automatic switch-on, manual switch-off.
• Adjustable operating mode: automatic timer, manual switch-on, automatic (timer and motion-controlled) switch-off.
• Adjustable operating mode: automatic mode, automatic (motion-controlled) switch-on and switch-off.
• Push switch function possible at all times.
• Switch-off delay: 1 to 10 min., adjustable.
• Surveillance density: 9 sectors with 28 switching segments.

• Protection class (sensor): IP 20
• Temperature range (device): 0 °C - 35 °C
• Detection range: frontal: 5 m, lateral: 3 m
• Detection range 2:
• Brightness limit value: 0.5 Lux - , Daytime operation
• Detection angle: 170 °

• Mounting height: 0.8 m - 1.2 m

• Please order the respective flush-mounted insert separately.
