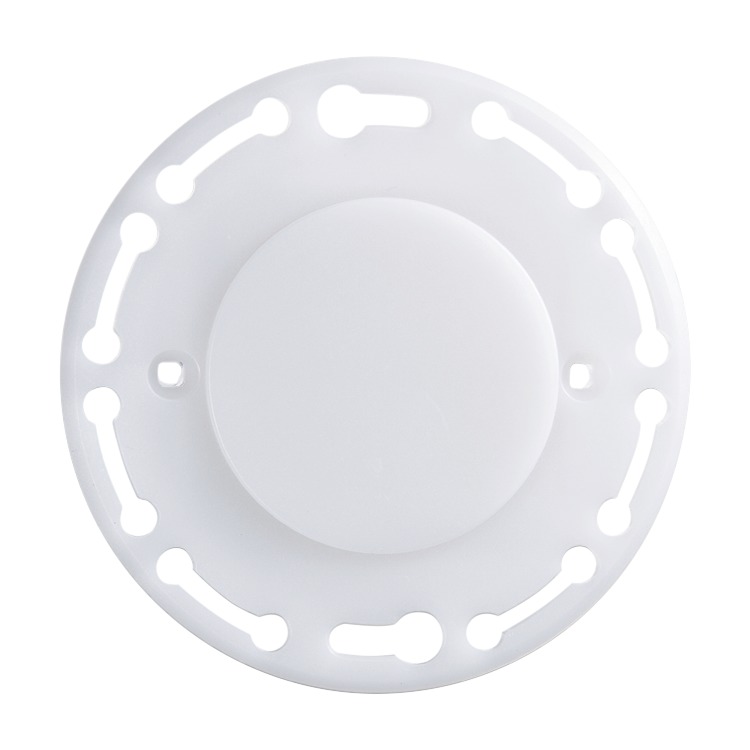

Flush-mounted emergency light
with LED lighting

My parts list/tender specifications

Actions:
ARCHIVE
Discontinuation type

Flush-mounted emergency light
with LED lighting

Take over in my parts list / tender specifications

Functions at a glance

  • Battery buffer time larger 3 hours.
  • Two colours adjustable: white/blue
  • Reduction to 50% of brightness after one hour.
  • During the emergency lighting it can be switched on and off over a +/- 12 V input.
  • Rated voltage: 230 V~
    • Use relay inserts when switching through movement sensors or comfort switches.
    • For switching the LED flush mounted insert use switches without orientation light only.

    Order details

    Article No.:2066 U
    Order No.:2CKA001511A0116
    EAN:4011395123317
    Customs tariff number:85365080
    Price group:19
    Price:96,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Certificates

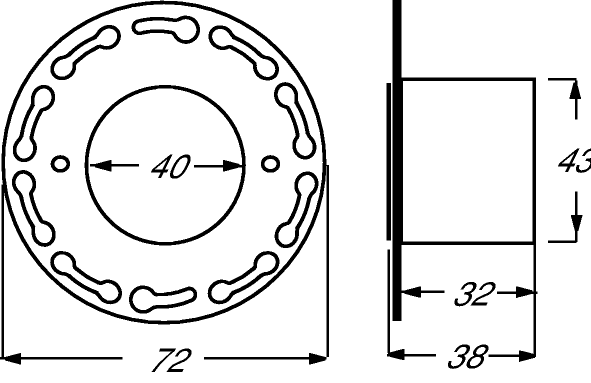

    Dimensions

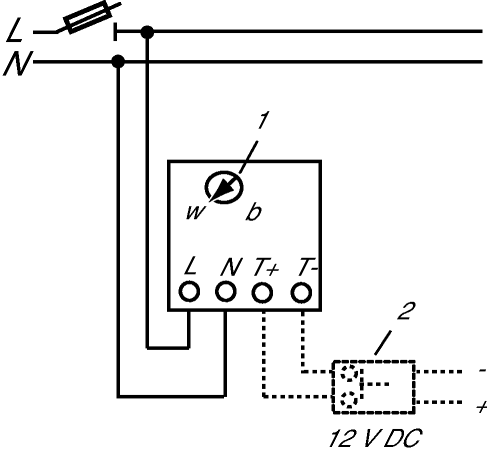

    Wiring diagram
