Busch-Jaeger - Busch-Wind and sun blind switch insert with automatic switching control

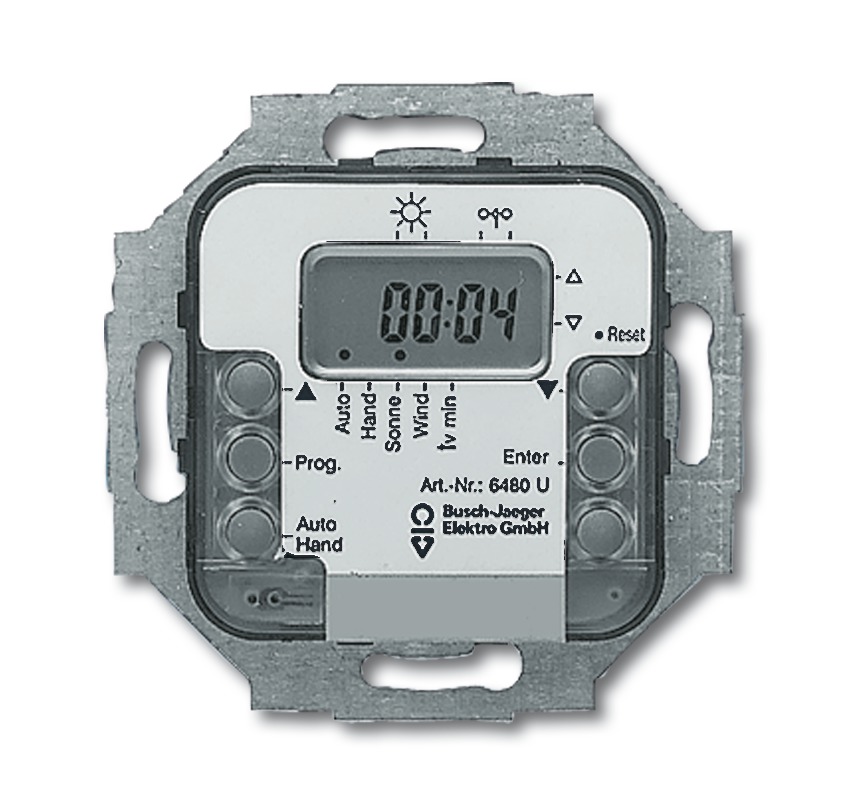

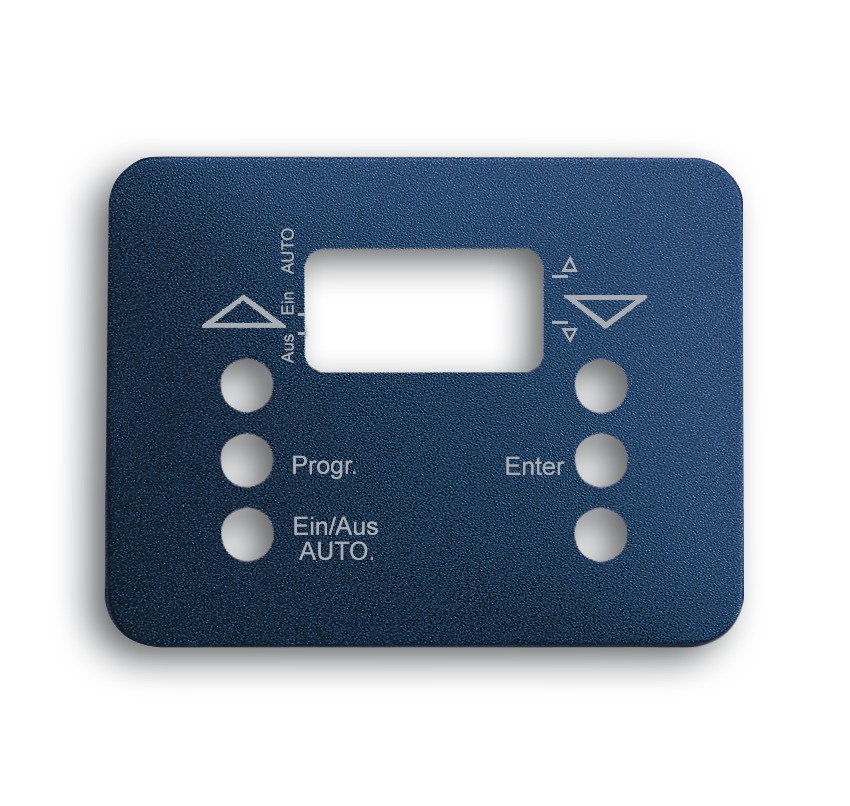

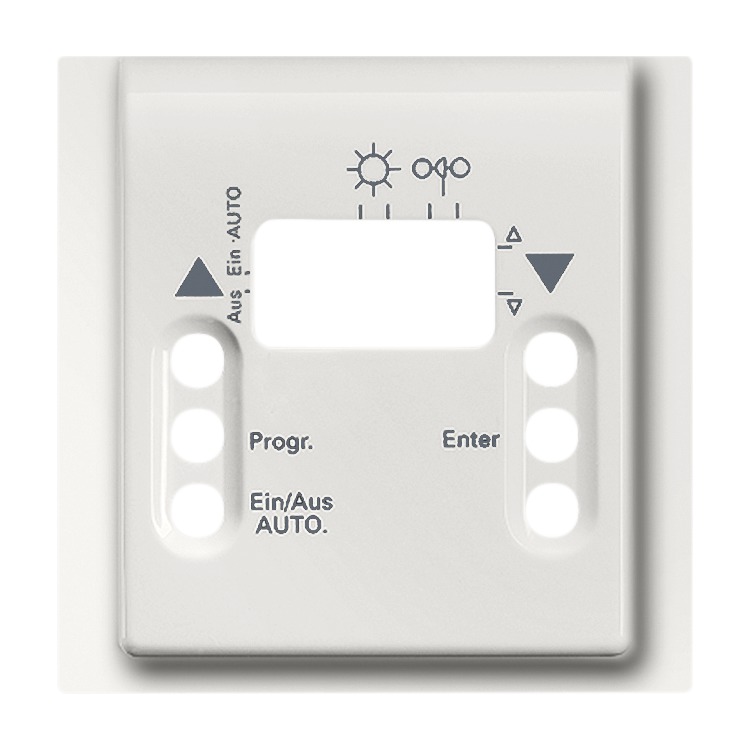

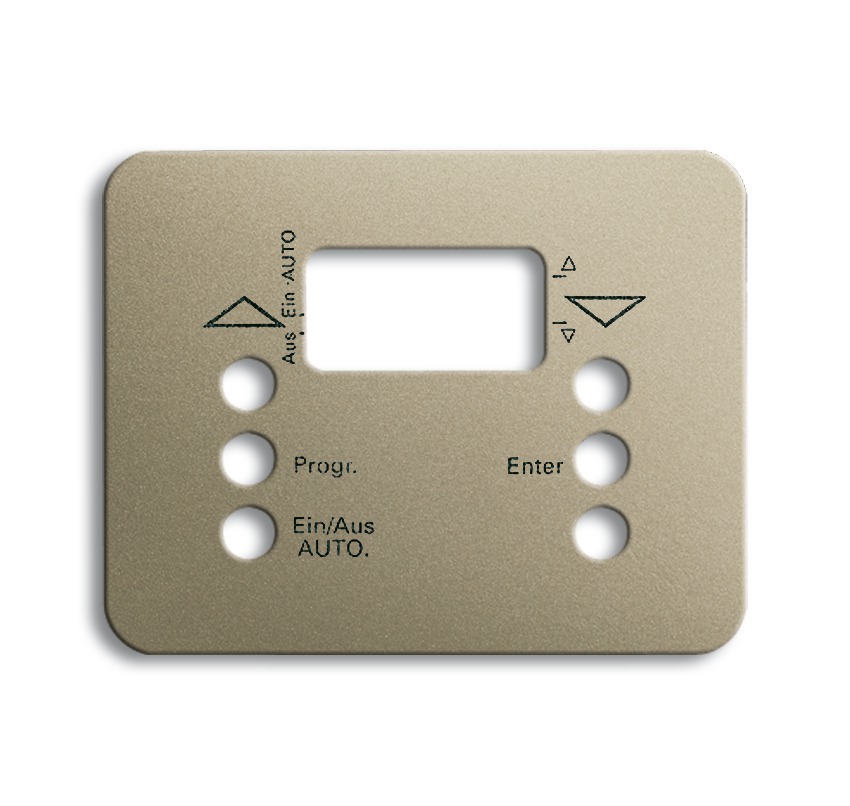

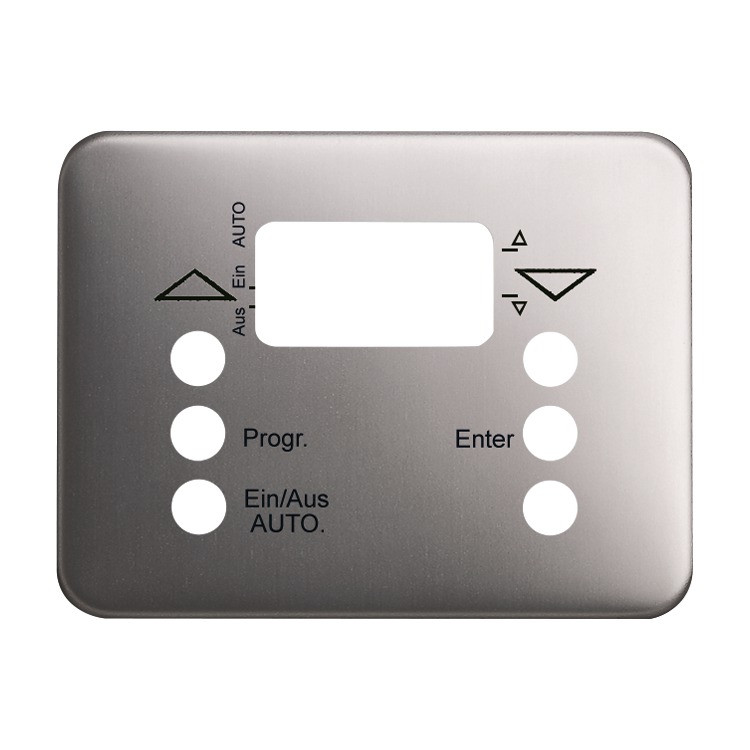

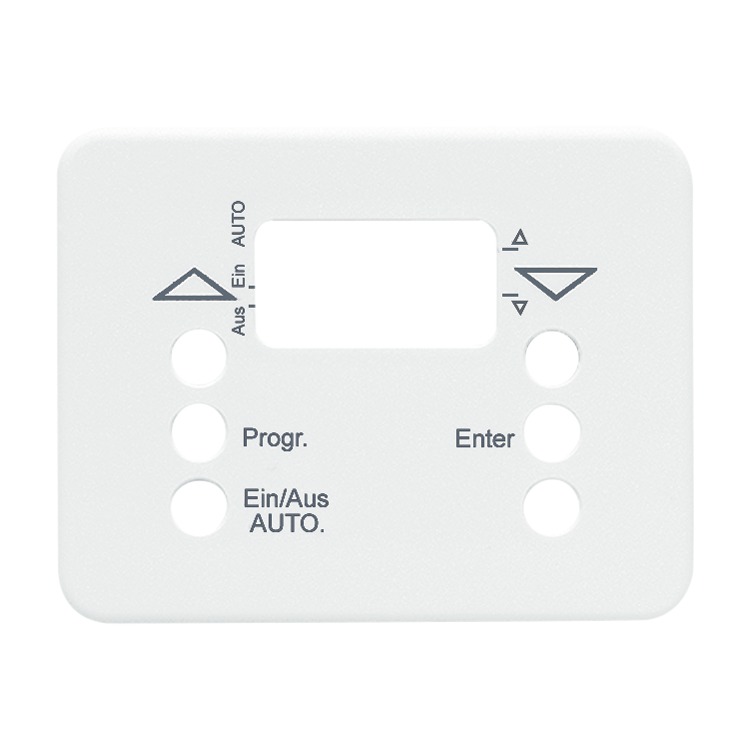

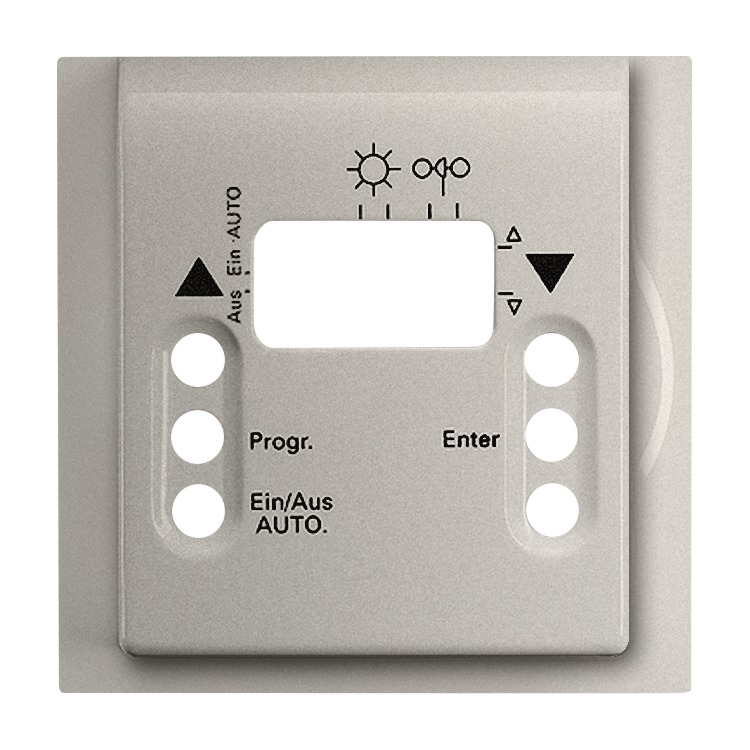

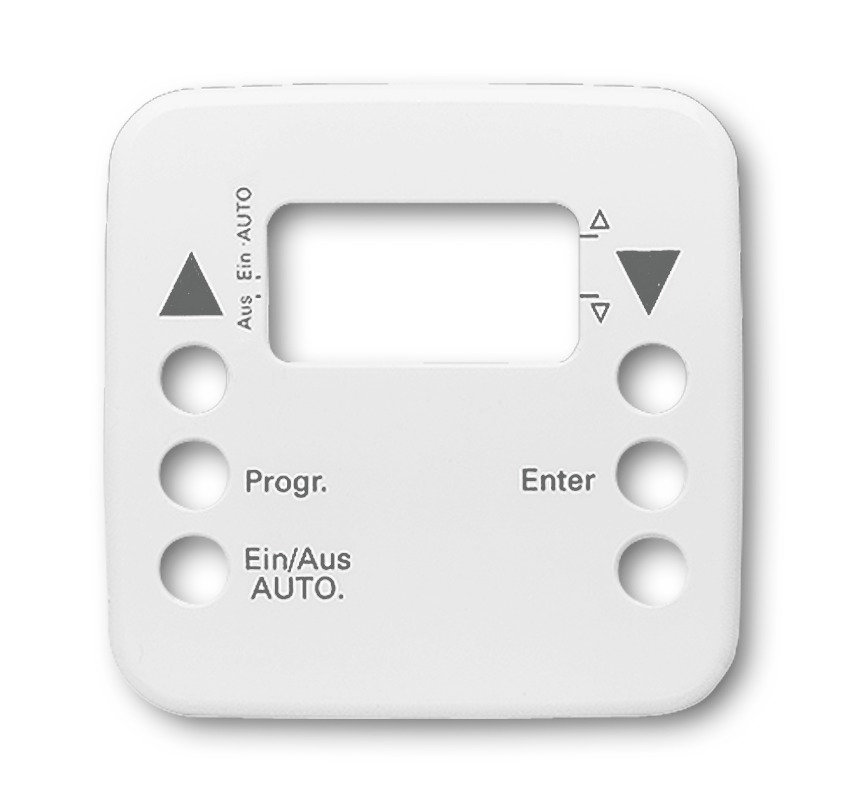

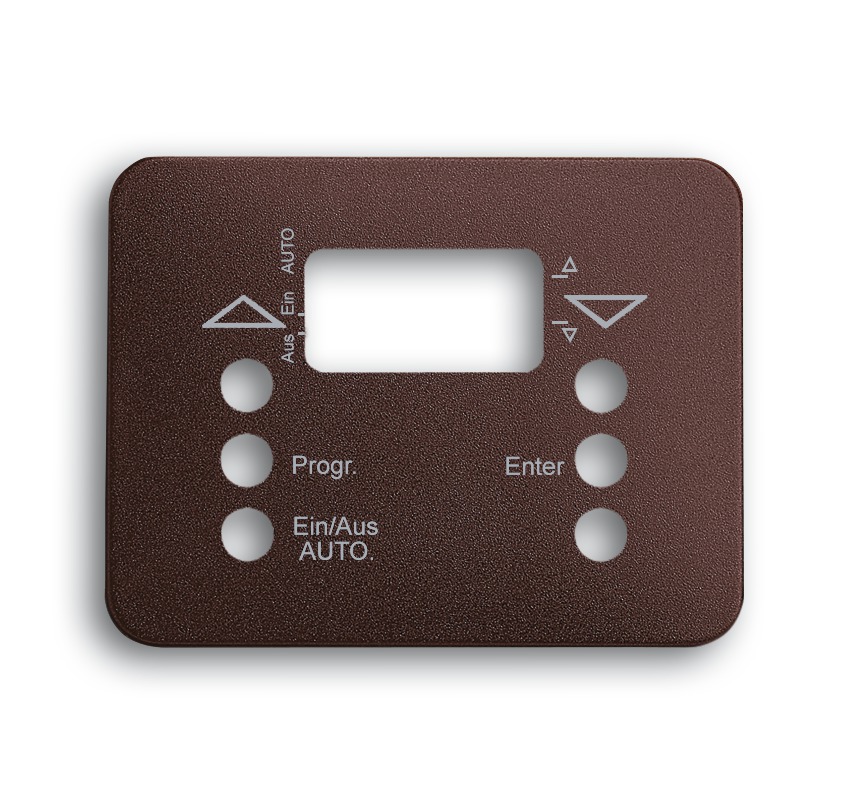

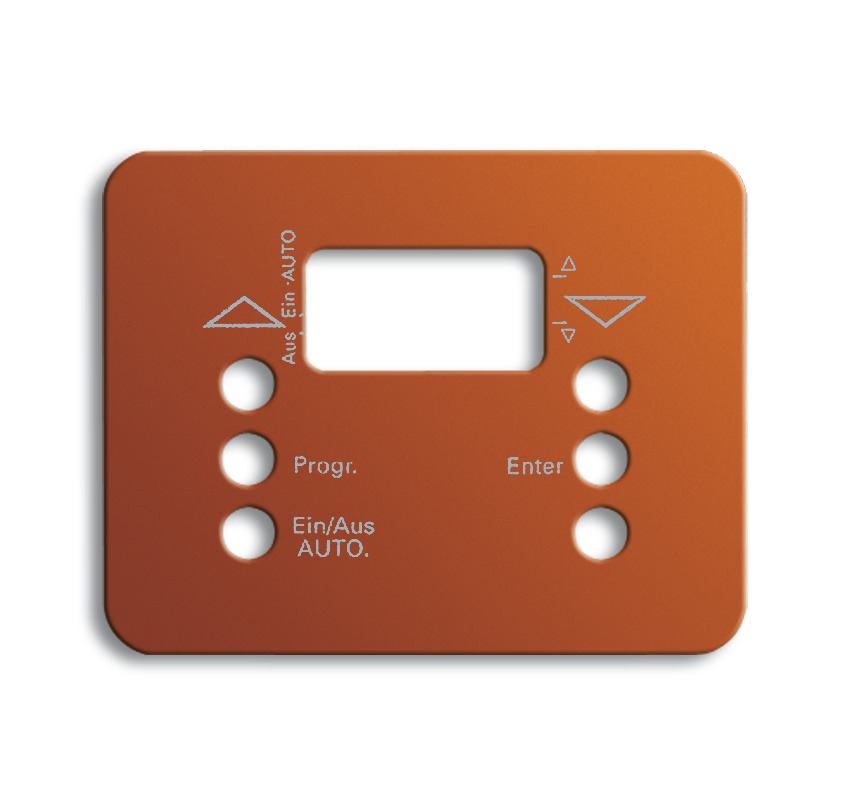

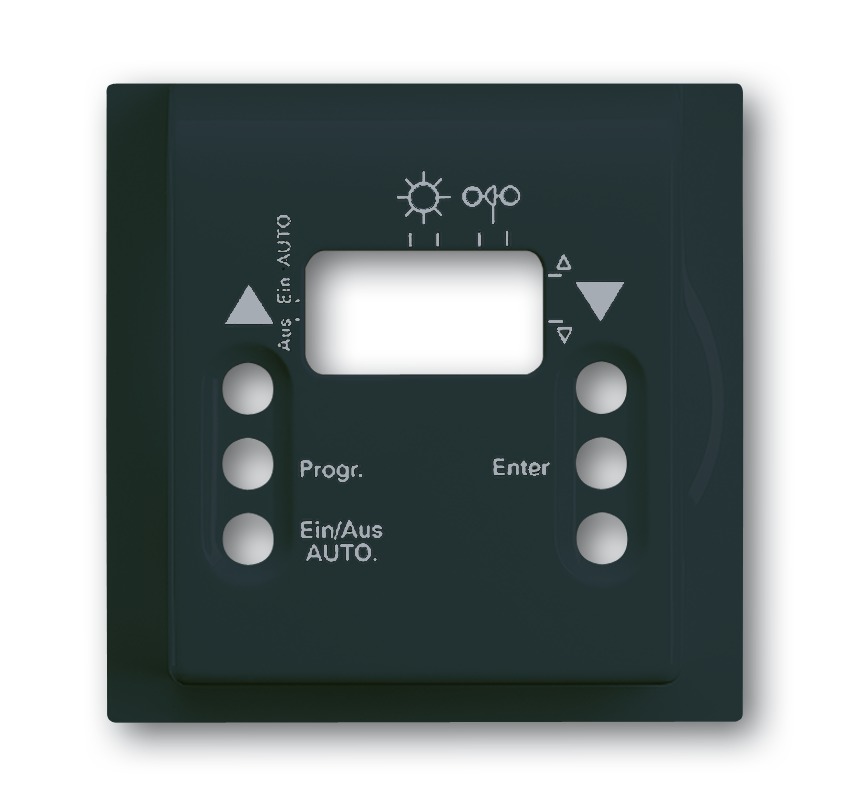

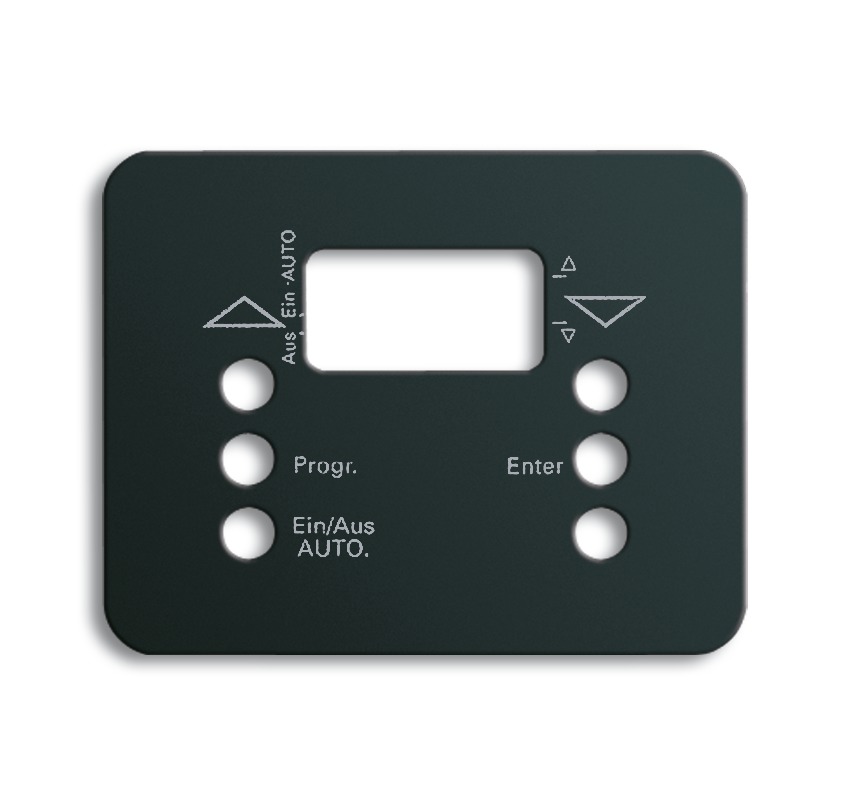

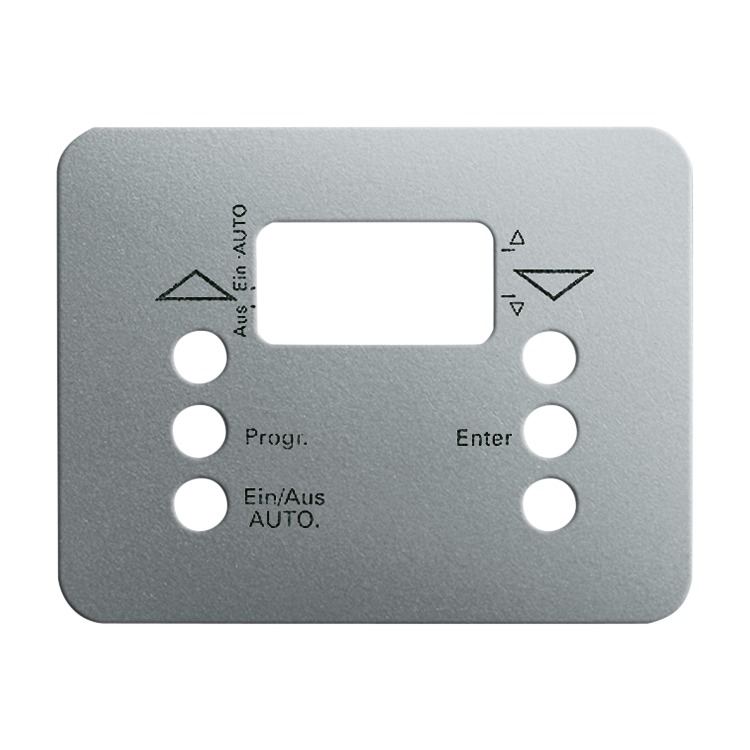

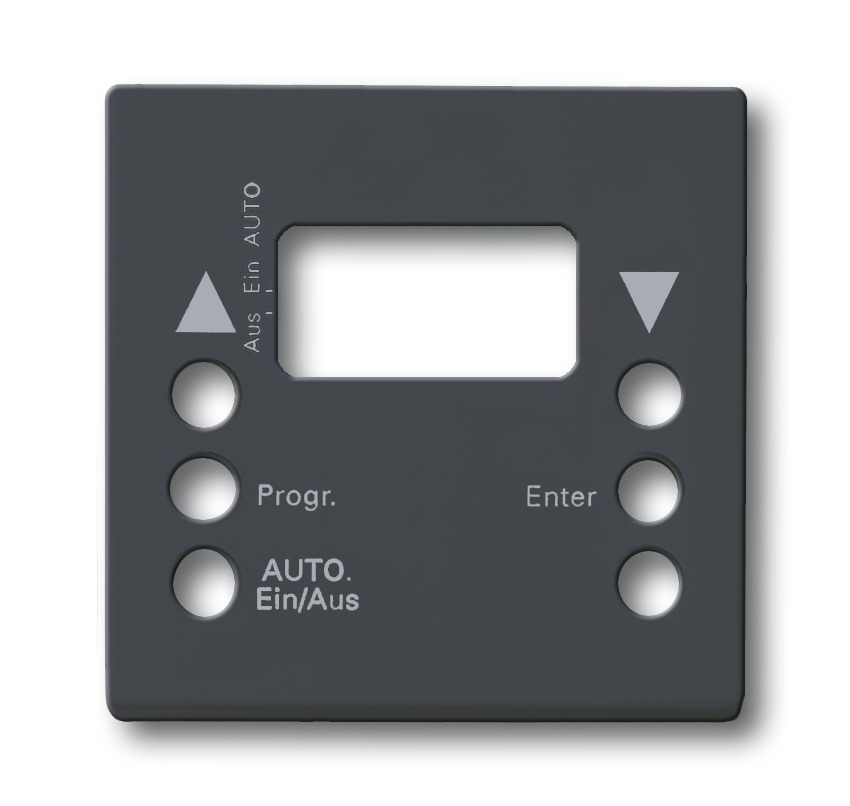

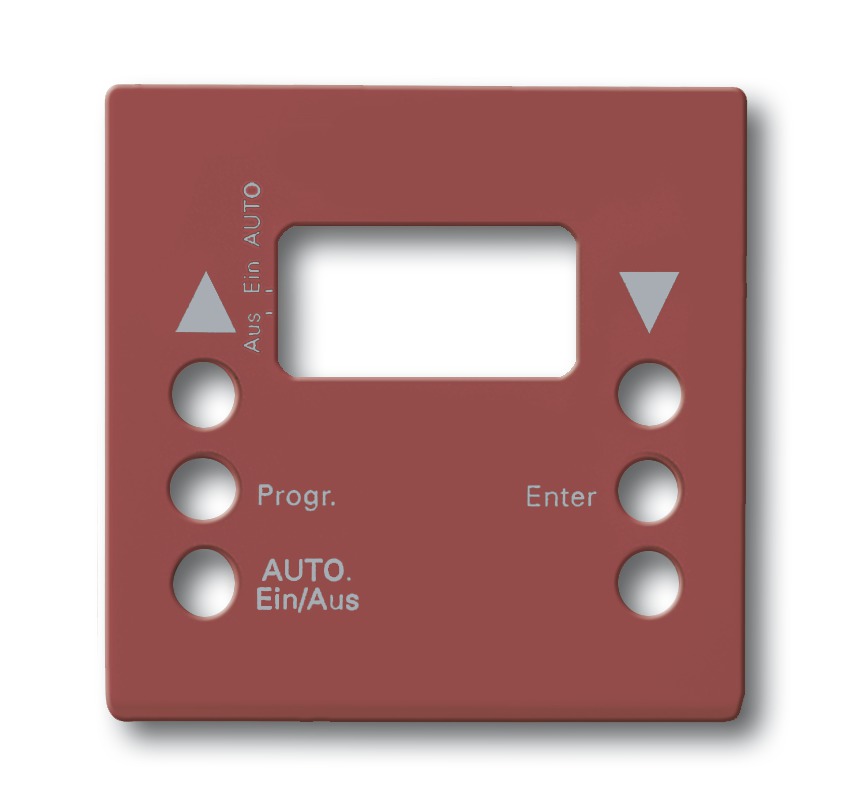

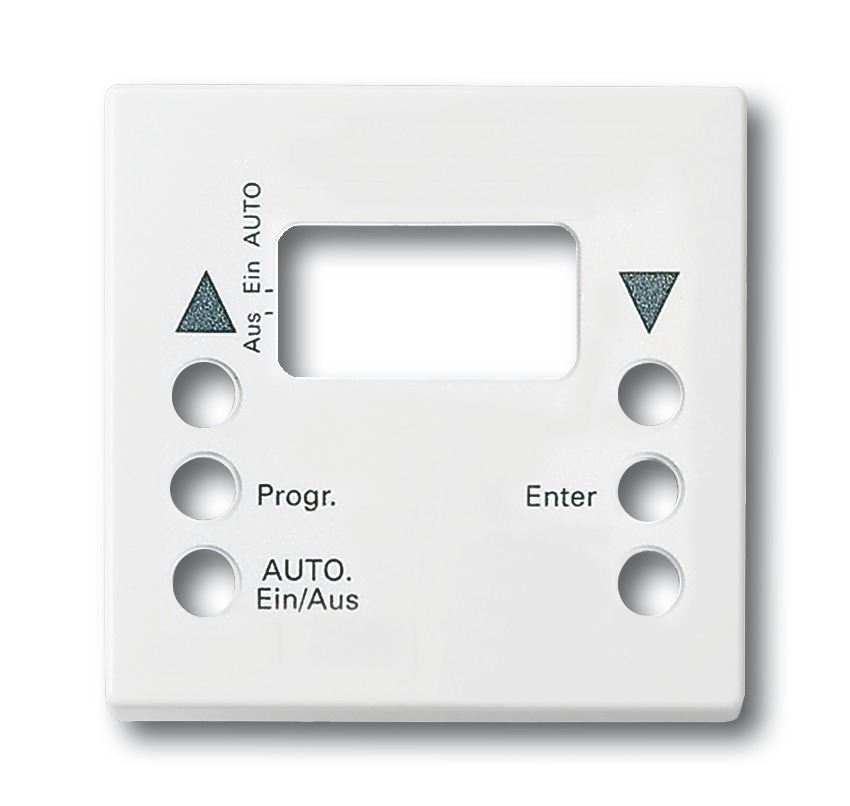

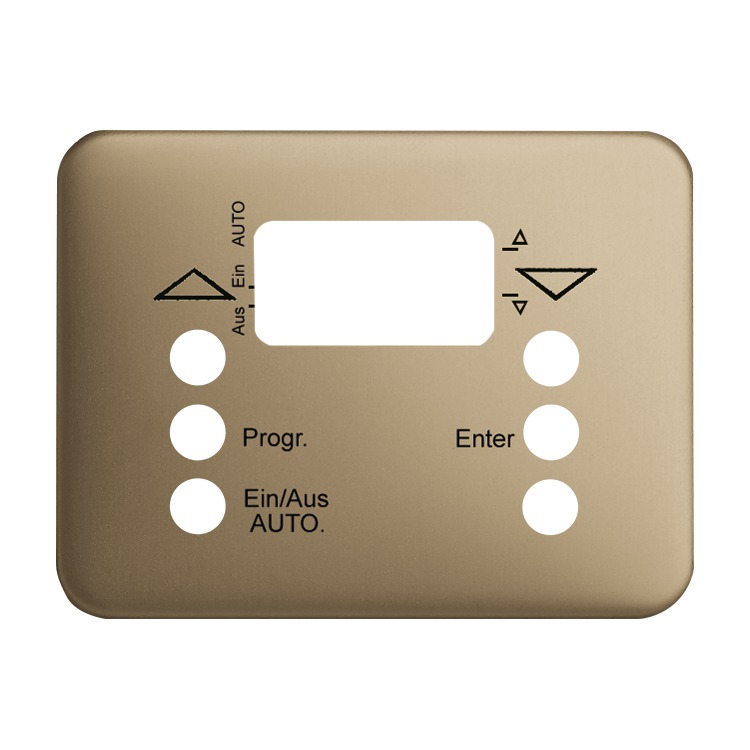

Busch-Wind and sun blind switch insert
with automatic switching control

Take over in my parts list / tender specifications

Functions at a glance

For controlling blind or awning motors.
Adjustable light, wind and temperature value.
With internal temperature sensor.
Sun, wind and rain sensor can be connected externally.
With intermediate position for awnings and turning position for blinds.
Impulse duration: 30 sec to 3 min

Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz / 60 Hz

Outputs: 2 Normally open contact, potential free
Rated output: 690 VA
Rated current: 3 A, cos φ0.6

Temperature range (device): -5 °C - 50 °C

For use only in conjunction with Wind Sensor 6481-102.
For operation without sun sensor, use the enclosed short-circuit bridge for sensor.
With downstream blind control 6411 U-101 an automatic return pulse (open slats) is not possible when moving to intermediate sun position.

Order details

Article No.:	6480 U-102
Order No.:	2CKA006410A0371
EAN:	4011395062838
Customs tariff number:	85176200
Price group:	19
Price:	306,50 EUR plus VAT
Info sheet:	Download PDF

Downloads

Instruction manual

Films on application

Tips / Tricks

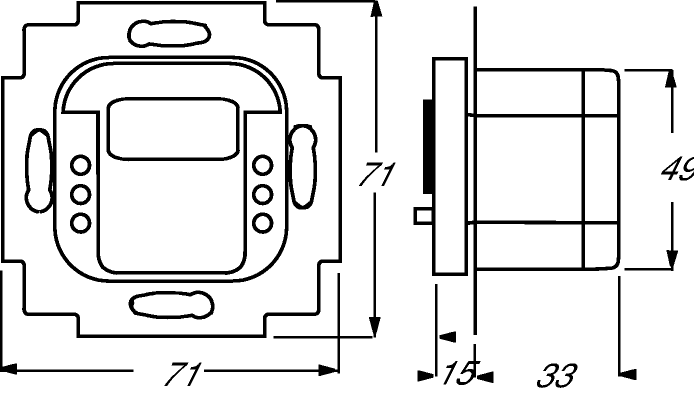

Dimensions

Wiring diagram

Busch-Wind and sun blind switch insert 6480 U-102 in conjunction with sun sensor 6482 and wind sensor 6481-102

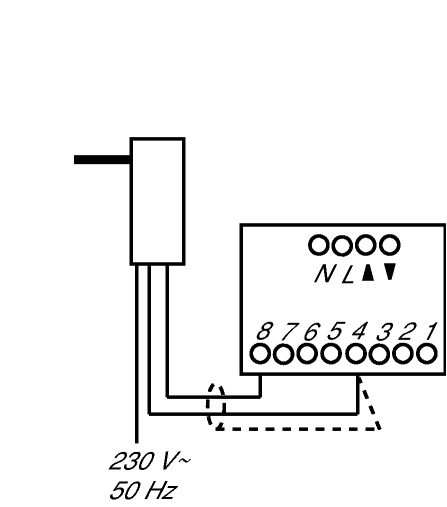

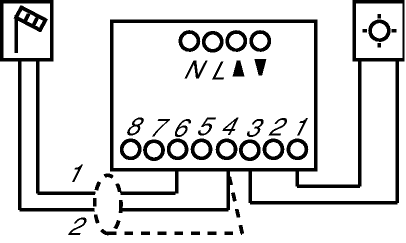

Connection of an additional rain sensor (third-party manufacturer) to the Busch-Wind and sun blind switch insert 6480 U-102 It is possible that the rain sensor is not connected to 230 V~, but rather with low voltage.

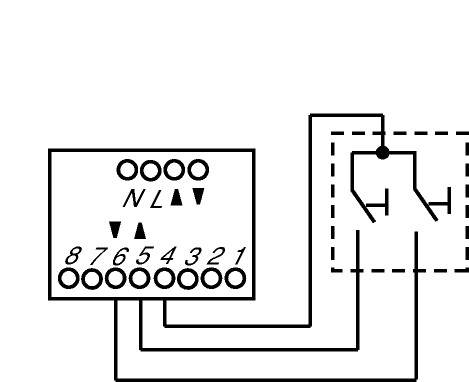

Connection of an external push-switch (e.g. 2020/4 US) to the Busch-Wind and sun blind switch insert 6480 U-102.

Connection of an additional sun sensor 6482 to the Busch-Wind and sun blind switch insert 6480 U-102. Attention: Only either a push-switch or a second sun sensor insert 6482 can be connected. 1 = red; 2= white
